Overview
12

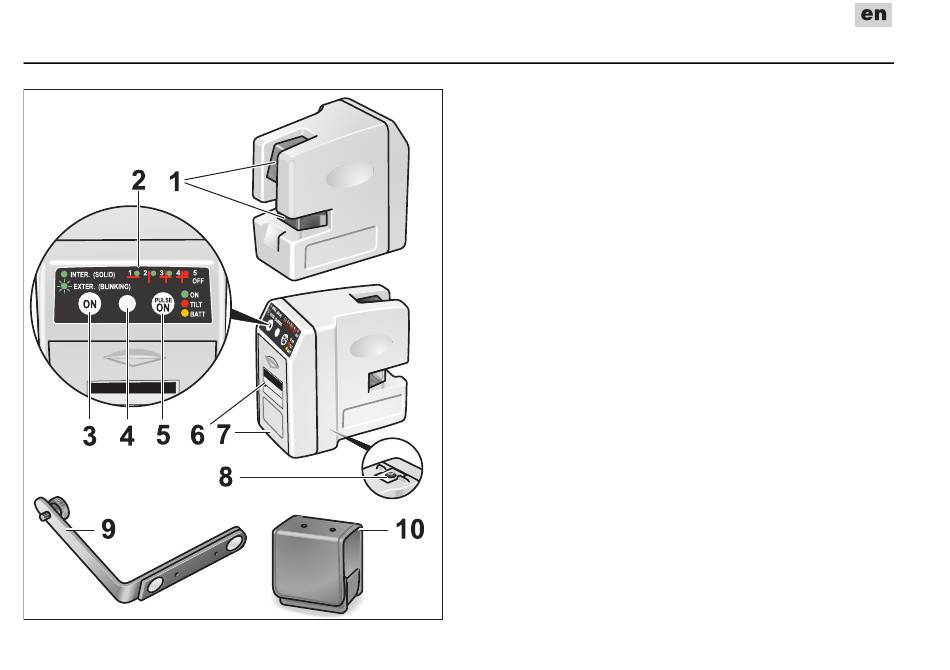

1 Laser discharge window
2 Control panel
3 On/Off/Menu button
Switching on/off and selecting the operating
mode.
4 Operating status LED
Is lit green when self-levelling is switched on.
Is lit red for fixed laser beams (self-levelling
off). Is lit yellow when battery is weak.
Flashes when beam is pulsed.
5 Pulse button
For switching over to pulsed beam when
used in bright surroundings or for extending
the work area with laser detector (optional).
The pulsed beam is not as bright as the non-
pulsed beam.
6 Laser warning sign
7 Battery compartment
8 ¼" thread
For attaching the device to the wall holder
or tripod.
9 Magnetic wall holder WB-M ¼ ALC
10 Belt pouch BEP
