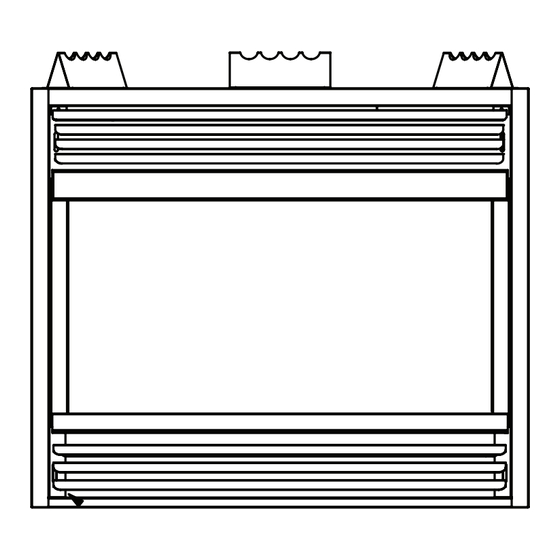

Continental Fireplaces CVF42-1N Manual

VENT FREE GAS APPLIANCE

Specifications

Model BTU
CVF42-1N 30,000
CVF42-1P 30,000
Framing
It is best to frame your appliance after it is positioned. Use 2x4's and frame to local building codes.

Minimum Clearance to Combustibles

Minimum clearance to combustible construction from appli-
ance:
Sides, back, bottom and top of the appliance:
Recessed depth
It is not necessary to install a hearth extension with this appliance
system.
When roughing in the appliance, raise the appliance to
accommodate for the thickness of the finished floor materials (i.e.
tile, carpeting, hard wood), which if not planned for, will interfere with
the opening of the lower access door and the installation of many
decorative flashing accessories.
Raise the appliance up to the height of the finished flooring to
ensure control access and accessory installations.
Width
Actual Framing
42 42 1/2 38 1/2
42 42 1/2 38 1/2
22 1/2"
(57.2cm)
0"
22" (55.9cm)
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
Height
Actual Framing Actual
39 22
39 22
39"
(99.1cm)
3"
(76mm)
5 1/2"
(140mm)
42 1/2"
(108cm)
6" (15.2cm)
42 1/2"
(108cm)
22 1/2"
(57.2cm)
FIREPLACES
Depth
Viewing Area
Framing
22 1/2 24 1/2 x 38
22 1/2 24 1/2 x 38
42 1/2"
(108cm)
(147.3cm)
Do not put objects in front of the appliance
(minimum distance of 4 feet)
41"
(104.2cm)
58"
06/2018
