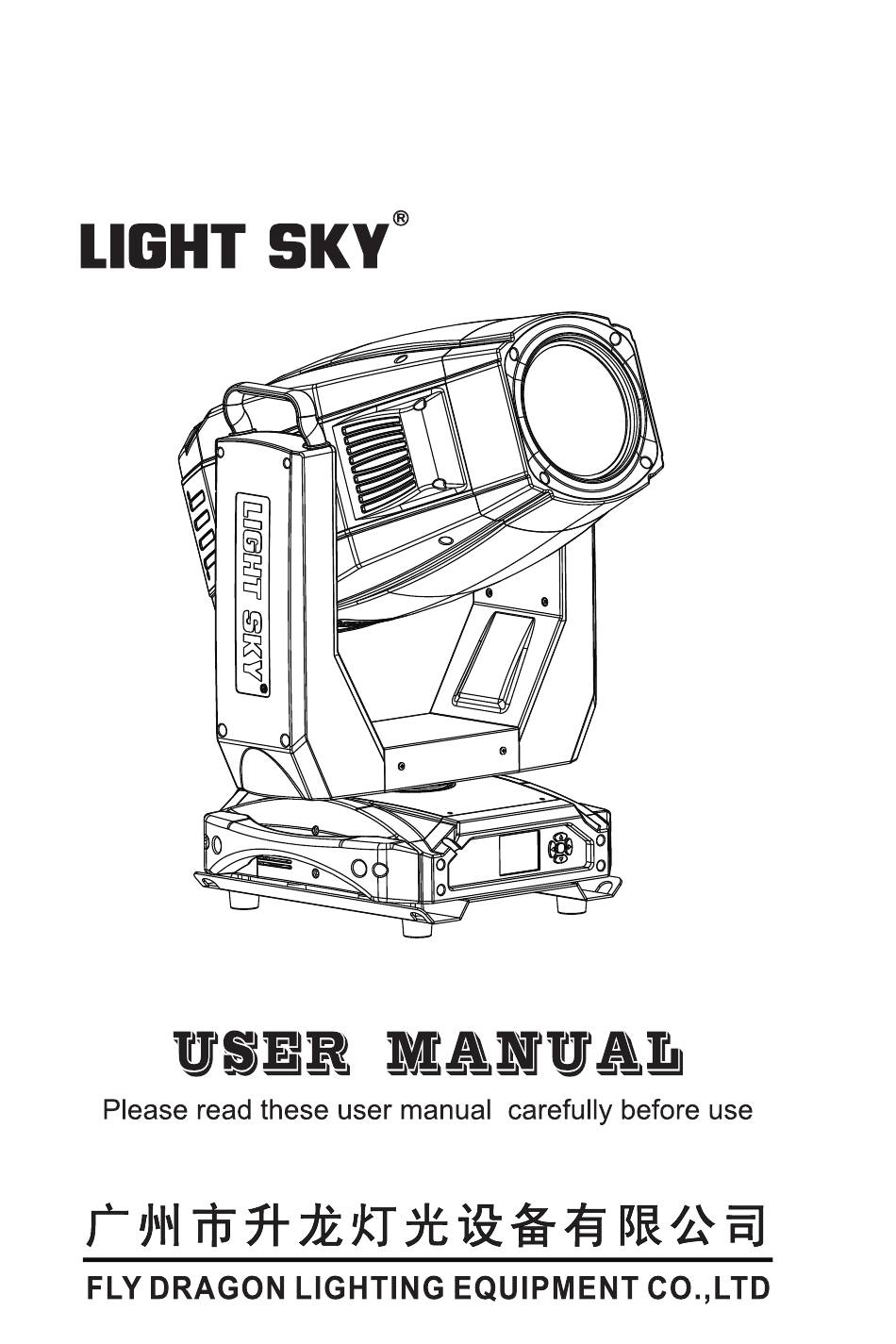

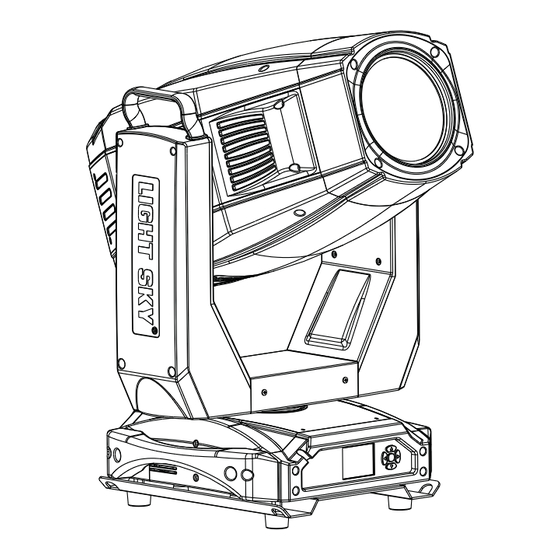

  • Page 1 TourPro Lighting F1000 PROFILE-50R F1000R PROFILE-50R...

  • Page 3: Table Of Contents

    www.lightsky.com.cn www.lightsky-china.com Contents 1. Safety information....................2 2.Technical information....................4 and body size ..................8 3.Attachment 4.Installation and connecting..................9 5. Lamp replacement....................10 6. Control panel......................11 7. Menu setting......................12 8.Channel function....................19 Circuit connecting diagram ...................26 Cleaning and maintenances ................27 Troubeshooting ....................27 Duty exonerative and copyright protection ............29 13.

  • Page 4: Safety Information

    www.lightsky.com.cn SAFETY INFORMATION 安装 ■Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails,the fitting falls as little as possible.
  • Page 5 www.lightsky-china.com 外表面最高温度 ■ Temp erature of the external surface t 120℃ The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is 120℃. 在热稳定的状态下,外表面的温度最高点可达120℃。 ■Maintenance 维护 Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.

  • Page 6: Technical Information

    www.lightsky.com.cn TECHNICAL INFORMATION 型号 Model F1000 PROFILE-50R series 参数 Parameter E-ballast:original made in Germany ballast Ballast 镇流器:德国制造电子整流器 镇流器 电压 Voltage :AC100-240V 50/60Hz Voltage/Power 功率 Power :1310W 电压/功率 Lamp HTI 1000/PS Lok-it 6500K 灯泡 光源:德国制造Osram Lam pa verage life 750H 灯泡 平均寿命...
  • Page 7 www.lightsky-china.com 型号 Model F1000 PROFILE-50R series 参数 Parameter 27pcs mute sound motor, 2pcs three phase motor,16 bit driver Motor 共27个超静音电机,其中2个三相静音电机, 电机数量 16Bit驱动 X:3.6s;Y:2.1s X/Y time X轴:3.6s;Y轴:2.1s X/Y轴时间 Strobe Double lens strobe (0.5-12Hz) 频闪 双片式频闪(0.5-12Hz) Size 450x373x788mm 灯具尺寸 N.W. 39Kg 净重 Fly case (2in) 965x540x1010mm 航空箱尺寸(2台装)
  • Page 8 www.lightsky.com.cn 44 highlights 2560(238) 645(60) 272(25) 158(15) 78(7) 43(4) 30(3) 6.5 highlights 77500(7203) 19600(1822) 9150(850) 3660(340) 2280(212) 1220(113) 795(74) 6.5° 44° Distance m 0.57(1 9 ) 3.4(11 2 ) 4.5(14 8 ) 5.7(18 7 ) 6.5 diameter m(ft in) 1.1(3 6 ) 1.7(5 8 ) 2.3(7 5 ) 44 diameter m(ft in)
  • Page 9 www.lightsky-china.com Rotation gobo wheel Fix wheel 固定图案盘 旋转 图 案盘 Gobo 5 White Open Gobo 4 Gobo 1 Gobo 3 Gobo 2 轻轻的向下压一下,再拔出图案片。 Gobo size:outside(φ36mm)/inside(φ25mm) 图案尺寸:外φ36mm/内φ25mm Framing shutters system 切割 模 组 PROFESSIONAL SHOW LIGHTING...

  • Page 10: Attachment And Body Size

    www.lightsky.com.cn ATTACHMENT AND BODY SIZE USER MANUAL LAMP BRACKET (fitted into projector) SAFETY CORD WARRANTY CARD DMX CABLE Attachment contents- Fig. 1 Body Size---Fig 2 LIGHT SKY...

  • Page 11: Installation And Connecting

    www.lightsky-china.com INSTALLATION AND CONNECTING Installing the projector- Fig. 3 The projector can be installe d on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety cable must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 12: Lamp Replacement

    www.lightsky.com.cn Connecting to the control signal line (DMX) - Fig. 5 ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input.

  • Page 13: Control Panel

    www.lightsky-china.com CONTROL PANEL WARNING:HOT! Maximum ambient temperature t =38℃. Always disconnect from mains before replacing the lamp. Caution:Hot lamp. Allow to cool for 30 minutes before opening. Exterior surface temperature under ℃ steady state condition =120 . Prolonged exposure to unshielded lamp can cause eye and skin burns.

  • Page 14: Menu Setting

    www.lightsky.com.cn MENU SETTING(V1.0) ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function Address 001-512 设置地址码 Standard(37CH) 标准 模式(37CH) Channel mode 通道模式 Extended(42CH) SETTING 扩展模式(42CH) 设置 Wired input 有线 Wireless input DMX input mode 无线 DMX输入模式 Reset wireless 重置无线 Exit 退出 Power on time ****H Fixture times 上电时间...
  • Page 15 www.lightsky-china.com Ⅲ 中文 ⅠMenu ⅡMenu Ⅲ Menu(ENGLISH) Menu( Function 1.频闪 1.Shutter 0-255 0-255 2.调光 2.Dimmer 0-255 0-255 3.调光微 调 0-255 3.Dimmer fine 0-255 4.青色 0-255 4.Cyan 0-255 5.品红 0-255 5.Magenta 0-255 6.黄色 0-255 6.Yellow 0-255 7.降色温 7.CTO 0-255 0-255 8.颜色盘 8.Colour wheel 0-255 0-255...
  • Page 16 www.lightsky.com.cn ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function 1000_6M_U_ SOFT:V*.** 上板 1000_6M 软件:V*.** 1000_9M_ SOFT1:V*.** SOFT2:V*.** 1000_6M_M-SOFT:V*.** 中板 1000-9M 软件 1:V*.** Version info 软件2:V*.** INFO 版本信息 设备信息 中板 1000-6M 软件:V*.** 1000_6M_D_ SOFT:V*.** 下板 1000-6M 软件:V*.** 1000_XY_ SOFT:V*.** 软件:V*.** 1000-XY板 1000_DPY_ SOFT:V*.** 软件:V*.** 1000-DPY板...
  • Page 17 www.lightsky-china.com ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function Default: 默认 开 DMX reset DMX复位 关 Dimmer reset 调光复位 CMY.CTO reset CMY.CTO 复位 Effects reset 效果复位 Reset Pan/Tilt reset 复位 XY复位 System reset 系统复位 Exit 退出 Silent mode 静音模式 Normal mode Fan mode Default:默认...
  • Page 18 www.lightsky.com.cn Ⅱ 中 文 ⅠMenu Ⅱ Menu(ENGLISH) Menu( Function 1.频 闪 1.Shutter 0-255 0-255 2.调 光 2.Dimmer 0-255 0-255 3.调 光 微调 0-255 3.Dimmer fine 0-255 4.青 色 0-255 0-255 4.Cyan 5.品 红 0-255 5.Magenta 0-255 6.黄 色 6.Yellow 0-255 0-255 7.降...
  • Page 19 www.lightsky-china.com ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function Test all 全部测试 Test pan/tilt X Y测试 TEST 测试设备 Test effects 效果测试 Exit 退出 Error list 错误清单 ±5.00% 水平 Tilt ±5.00% 垂直 Effect ±5.00% 效果盘 Focus ±5.00% 调焦 Zoom ±5.00% 缩放 Prism ±5.00% 棱镜...
  • Page 20 www.lightsky.com.cn ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function Default: 默认 关 Fan clean 风机清扫 开 SERVICE Factory 服务选项 工厂设置 Updata 软件升级 Exit 退出 LIGHT SKY...

  • Page 21: Channel Function

    www.lightsky-china.com CHANNEL(V1.0) Standard Extended mode mode DMX Value Percent Function Strobe/shutter 频闪 0-19 Shutter closed(Lamp switches to 500 watt mode after shutter is closed for 2 seconds) 快门关 快门关闭 秒后，灯泡功率降至 500W) 20-49 8-19 Shutter open:快门开 Strobe,slow→ fast: 频闪由慢到快 50-200 20-78 201-210 79-82 Shutter open:快门开...
  • Page 22 www.lightsky.com.cn Standard Extended DMX Value Percent Function mode mode Stepped Scroll(snap to full color positions):单色切换（单色位置） 141-145 55-57 Slot1:颜色1 146-150 57-59 Slot2:颜色2 151-155 59-61 Slot3:颜色3 156-160 61-63 Slot4:颜色4 161-165 63-64 Slot5:颜色5 166-170 65-66 Slot6:颜色6 171-175 67-68 Slot7:颜色7 176-180 69-70 Slot8:颜色8 181-185 71-73 Open:打开...
  • Page 23 www.lightsky-china.com Standard Extended mode mode DMX Value Percent Function Stepped Scroll(snap to full color positions):单色切换(单色位置) 138-143 54-56 Gobo1:图案1 144-149 57-58 Gobo2:图案2 150-155 59-61 Gobo3:图案3 156-161 61-63 Gobo4:图案4 162-167 64-66 Gobo5:图案5 168-173 66-68 Gobo6:图案6 174-179 68-70 Gobo7:图案7 180-185 71-73 Open:打开 Continuous Rotation: 连续旋转 186-211 73-82 CW,Fast→Slow:顺时针由快到慢...
  • Page 24 www.lightsky.com.cn Standard Extended mode mode DMX Value Percent Function Breakup wheel:gobo indexing,rotation(16-bit fine,MSB and LSB) 活动盘:图案分度,旋转 Gobo indexing:图案分度 0-100 0-65535 If indexed gobo is selected on channel 11(16-bit)or 12(16-bit ext.) Gobo indexing,0°→ maximum 如果分度图案是选择在11或12(16位扩展)通道 图案分度,0到最大 If continuous gobo rotation is selected on channel 11(16-bit) or 12(16-bit ext.)如果连续图案 旋转是选在11或12(16位扩展)通道...
  • Page 25 www.lightsky-china.com Standard Extended DMX Value Percent Function mode mode Blade RG 1 切割片右1 0-100 Blade Out→In:切割片从打开过渡到切入 0-255 Blade RG 2 切割片右2 0-100 Blade Out→In:切割片从打开过渡到切入 0-255 Blade LF 1 切割片左1 Blade Out→In:切割片从打开过渡到切入 0-255 0-100 Blade LF 2 切割片左2 0-100 Blade Out→In:切割片从打开过渡到切入 0-255 Framing Rotation 切割旋转...
  • Page 26 www.lightsky.com.cn Standard Extended mode mode DMX Value Percent Function 96-103 38-40 Max.Isosceles triangle(Left):最大等腰三角形(朝左) 104-111 41-44 Min.Isosceles triangle(Left):最小等腰三角形(朝左) 112-119 44-47 Max.Isosceles triangle(Right):最大等腰三角形(朝右) 120-127 47-50 Min.Isosceles triangle(Right):最小等腰三角形(朝右) 128-135 50-53 Up Semicircle:上半圆 136-143 53-56 Right upper Fan-shaped:右上扇形 144-151 56-59 Right Semicircle:右半圆 152-159 60-62 Lower Right Fan-shaped:右下扇形...
  • Page 27 www.lightsky-china.com Standard Extended mode mode Percent Function DMX Value Fan clean:风机清洁 95-99 37-39 Backlight on:打开背光 100-104 39-41 Backlight off:关闭背光 105-109 41-43 Smooth Dimming:平滑调光线 110-114 43-44 Average Dimming:平均调光线 115-119 45-46 Fast Dimming:快速调光线 120-124 47-48 Ballast 100%:电子镇流器功率100% 125-126 Ballast 90%:电子镇流器功率90% 127-128 Ballast 80%:电子镇流器功率80% 129-130 Ballast 70%:电子镇流器功率70% 131-132...

  • Page 28: Circuit Connecting Diagram

    +30V 开 关 电源 Input Switched power supply Output 显 示 板 Display board Input 电 源转接 板 Power switch board 电子镇 流 器 保险丝5A Electronic ballast VH-4A Fuse +30V CMY驱动 板 Output Drive board Power input +30V 100-240Vac +30V +30V 触发...

  • Page 29: Cleaning And Maintenances

    www.lightsky-china.com CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector.
  • Page 30 www.lightsky.com.cn ◎Please check the connection of the trigger circuit is loose contact. 检 查灯 泡与 触发线 路是 否有 脱 落或 接触 不良； ◎Please check whether the connected point of the trigger point is loose contact ,faster the connect cable . 检...

  • Page 31: Duty Exonerative And Copyright Protection

    www.lightsky-china.com ◎When the lamp don't cool down enough but do the incorrect operation will let the trigger up to super- high voltage leak.It will damage the electric circuit and communicate IC or CPU .Under this condition,please change the PCB board. 检...

  • Page 32: Company Information

    广州市升龙灯光设备有限公司 FLY DRAGON LIGHTING EQUIPMENT CO.,LTD Tel:0086-20-61828288 Fax:0086-20-61828188 Web:www.lightsky.com.cn www.lightsky-china.com E-mail:flydragon@lightsky.com.cn lightsky08@vip.163.com flydragon@lightsky-china.com lightsky01@vip.163.com lightsky-china@vip.163.com flydragon@vip.163.com 13829779791@vip.163.com Add:No.51Yunfeng Rd,Xinhua Industrial Zone,Huadu District, Guangzhou City,China. 地 址:广 州 市 花 都 区 新 华 街 新 华 工 业 园 云 峰 路51号...
