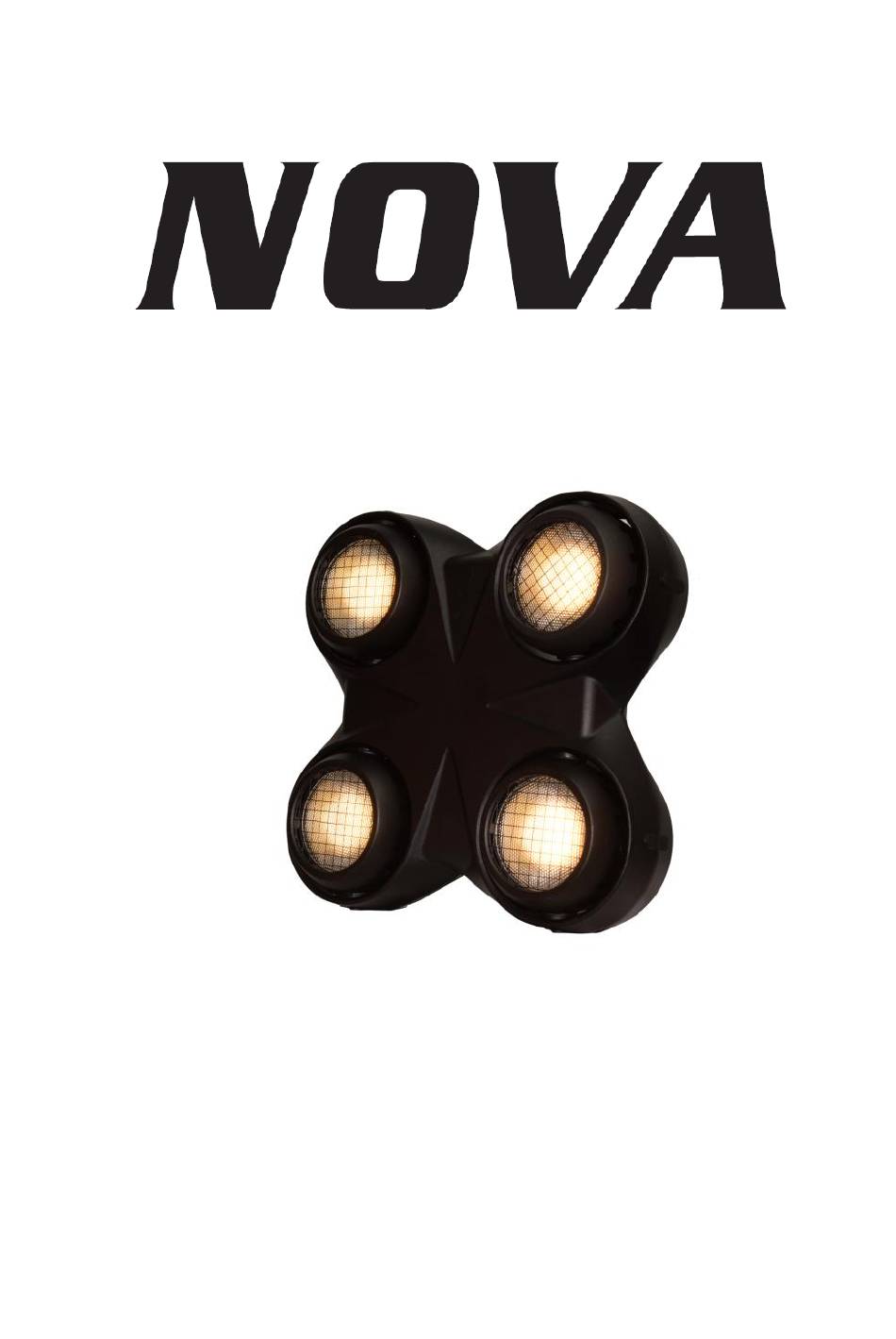

TourPro Lighting NOVA Manual

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVA and is the answer not in the manual?

Questions and answers

Related Manuals for TourPro Lighting NOVA

Summary of Contents for TourPro Lighting NOVA

  • Page 2: Safety Instructions

    INTRODUCTION Thank you for having chosen our LED lighting Unpack the device, inside the box you should find: The fixture device One power cable One XLR connection cable This manual Please check carefully that there is no damage caused by transportation.

  • Page 3: Dmx-512 Control Connection

    If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. Make sure that the available voltage is not higher than stated at the end of this manual.

  • Page 4: Display Menu

    terminator is simply an XLR plug with a 120 OHM resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. Display Menu Main menu Sub-menu Value Default DMX Address DMX Address Setting 1 - 512 Channel 1Ch...
  • Page 5 Press ENTER button when show the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button. Press [ENTER] to confirm or pressing [ESC] to return to main menu. B.Setting DMX address by controller 1.Set the DMX value of channel 5 to 10-15,channel 17 to 20-26, channel 7 to 30-36,channel 8 to 40-46,then the devices connected to the controller will enter to the setting address mode 2.

  • Page 6: Setting Fast Mode

    Setting this to enable will keep the screen on. Keep DMX data Select enable/disable by pressing [UP] or [DOWN] button. Setting this to enable will set all DMX channel level to 0 as soon as DMX signal lost. Setting Fast mode Select enable/disable by pressing [UP] or [DOWN] button.
  • Page 7 Function Value Description Remark Master Dimmer 000-255 0-100% 3CH Mode Function Value Description Remark 0-100% Master dimmer 000-255 Fine 0-100% 000-255 master dimmer Unused 000-015 range Strobe 016-240 Strobe From slow to fast Random 241-255 From fast to slow strobe 4CH Mode Function Value...
  • Page 8 Ramp up by 144-179 SIN curve 180-215 4-LED flow Random LED 216-255 Dimmer Curve 0-63 Linear 64-127 Square 128-191 Invert Square 192-255 S-Surve 10CH Mode Function Value Description Remark Master Dimmer 000-255 0-100% Fine 0-100% 000-255 Master Dimmer 000-015 Unused range Strobe From slow to 016-255...

  • Page 9: Cleaning And Maintenance

    effect CLEANING AND MAINTENANCE We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! CAUTION!Disconnect from mains before starting maintenance operation. There are no servicable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.
