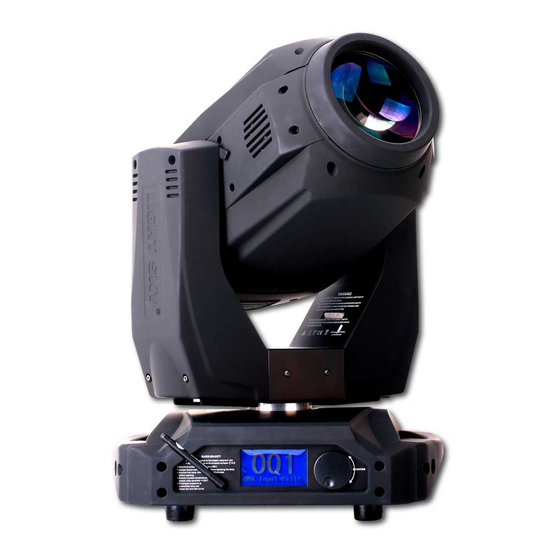

- Page 1 TourPro Lighting AQUABEAM SERIES ANUAL Please read these user manual carefully before use www.tourprolighting.com...
-
Page 2: Table Of Contents
www.tourprolighting.com LIGHT SKY Contents 1. Safety information....................2 2.Technical information....................3 3.Attachment and body size ..................5 4.Installation and connecting..................6 5. Control panel......................7 6. Menu setting......................8 7.Channel function.....................10 Circuit connecting diagram ..................15 Cleaning and maintenances ..................16 Troubeshooting ....................16 Duty exonerative and copyright protection ............17 12. -
Page 3: Safety Information
LIGHT SKY SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails,the fitting falls as little as possible. -
Page 4: Technical Information
www.tourprolighting.com TECHNICAL INFORMATION ● ● IP set Power supplies available Automatic charging battery,IP could be set AC100-240V/50-60Hz without electricity. ● Power ● Features 495W IP2000: Remote control lamp’s switch function, IP3000:628W display light and lamp’s using time, ● Lamp(IP2000) automaticallay adjust cooling-fan’s speed, - Brand:SIRIUS HRI 330W OSRAM Drop 60W power when strobe lens. - Page 5 LIGHT SKY Static wheel(1 white + 12 gobo) (please refer to the actual material) White Color Wheel:(please refer to the actual material) Cyan CTB8000 Dark red Magenta Dark green Jacinth Pink Yellow Blue Black Yellow Photometric Data: IP2000 Lux(fc) Highlights 600000(55762) 462000(42937) 266000(24721)
-
Page 6: Attachment And Body Size
www.tourprolighting.com ATTACHMENT AND BODY SIZE USER MANUAL BRACKET LAMP (fitted into projector) SAFETY CORD WARRANTY CARD DMX CABLE Attachment contents- Fig. 1 Body Size---Fig 2... -
Page 7: Installation And Connecting
LIGHT SKY INSTALLATION AND CONNECTING Installing the projector- Fig. 3 The projector can be installe d on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the projector is positioned on the floor, the safety cable must be fitted. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. -
Page 8: Control Panel
www.tourprolighting.com Connecting to the control signal line (DMX) - Fig. 5 ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input. -
Page 9: Menu Setting
LIGHT SKY MENU SETTING(V1.0) SETTING PERSON DMX Address Address:001-512 Pan/Tilt PT swap Channel mode Simple(20CH) Pan invert Standard(24CH) Exit Tilt invert Exit INFO Fixture time Power on time:****(h) Lamp on time:****(h) English 英文 Display Display Fixture LAMP-TEM:***C Language temperatures Chinese(中文) Display Light always RDM UID... - Page 10 www.tourprolighting.com MANUAL Lamp on/off PROGRAM Exit Reset System reset Exit Error list SERVICE 1.Cyan 000-255 ±5.00 Cyan 2.Magenta 000-255 ±5.00 Magenta 3.Yellow 000-255 ±5.00 Yellow 4.CTO 000-255 ±5.00 Adjust 5.Colour 000-255 ±5.00 Dimmer 6.NC 000-255 ±5.00 7.Shutter 000-255 ±5.00 Tilt 8.Dimmer 000-255 Exit...
-
Page 11: Channel Function
LIGHT SKY CHANNEL FUNCTION CHANNEL CHANNEL FUNCTION 20CH 24CH Cyan Magenta Yellow Colour Shutter Dimmer Dimmer fine Static gobo Prism Prism rotation Frost Focus Pan fine Tilt Tilt fine Function Reset Lamp LIGHT SKY... - Page 12 www.tourprolighting.com Function 20CH 24CH DMX Value Percent Cyan Cyan(0-white,255-full cyan) 0-255 0-100 When the 18 channel /22 channel value in 63-75 0-49 Cyan(0-white,127-full cyan) 0-127 50-74 Pink 128-191 75-100 Yellow 192-255 Magenta Magenta(0-white,255-full magenta) 0-255 0-100 When the 18 channel /22 channel value in 63-75 0-49 Magenta(0-white,127-full magenta) 0-127...
- Page 13 LIGHT SKY 20CH 24CH DMX Value Percent Function Stopper/Strobe Light off Strobe,slow → fast 4-103 2-40 104-107 41-42 Light on 108-207 43-81 Pulsation Strobe,slow → fast 208-212 82-79 Light on 213-225 80-88 Random Strobe at low frequency 226-238 89-93 Random Strobe at medium frequency 239-251 94-98 Random Strobe at high frequency...
- Page 14 www.tourprolighting.com 20CH 24CH DMX Value Percent Function Prism insertion No prism prism 6-128 3-50 8-prism 129-255 51-100 Prism rotation Prism indexing: 0° to 90° range 0-21 Prism indexing: 90° to 180° range 2 -42 8-16 Prism indexing: 180° to 270° range 42-63 16-24 Prism indexing: 270°...
- Page 15 LIGHT SKY 20CH 24CH DMX Value Percent Function Function Unused range 0-11 Fast pan / tilt speed (default) 12-24 Normal pan / tilt speed 25-37 10-14 Conventional dimmer curve 38-50 15-19 Linear dimmer curve (default) 51-62 20-24 CMY full range (default) 63-75 25-29 CMY limited range...
-
Page 16: Circuit Connecting Diagram
Circuit connecting diagram +28V +28V 470B-7M V1.3 20150205 470B-5M V1.2 20150205 Switched power supply Drive board Drive board Input +28V +28V SL08-XS +28V +28V V1.0 AC100-240V 470B-XY 20150128 50/60Hz V1.11 20150316 Display board X Y board... -
Page 17: Cleaning And Maintenances
LIGHT SKY CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. -
Page 18: Duty Exonerative And Copyright Protection
www.tourprolighting.com ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging. -
Page 19: Company Information
FLY DRAGON LIGHTING EQUIPMENT CO.,LTD Tel:0086-20-61828288 Web:www.lightsky.com.cn www.tourprolighting.com E-mail:sales@shsglobal.com Add:No.51Yunfeng Rd,Xinhua Industrial Zone,Huadu District, Guangzhou City,China. Distributed by...
