TourPro
Lighting
WARNING:HOT!
Minimum distance to flammable material=12m.
Minimum distance to illuminated surface=
Maximum ambient temperature t =33℃.
Always disconnect from mains before replacing
the lamp.
Caution:Hot lamp. Allow to cool for 30 minutes
before opening.
Exterior surface temperature under steady
state condition =45 .
℃
Prolonged exposure to unshielded
lamp can cause eye and skin burns.
U
Please read these user manual carefully before use

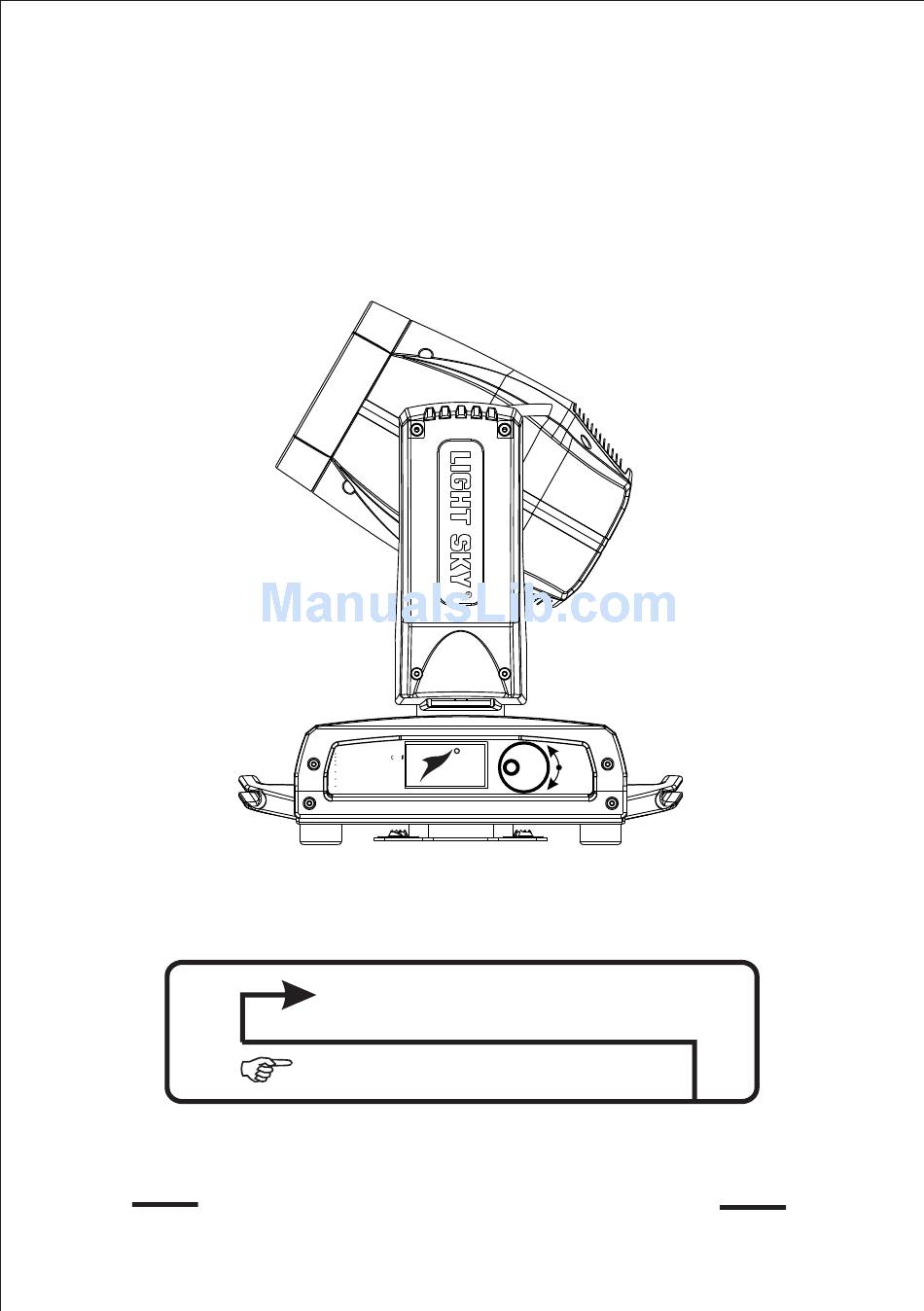

EXTREME SERIES
ExtremeBeam 230
R
12m
a
LIGHT SKY
M
SER
www.tourprolighting.com
UP
ENTER
DOWN
ANUAL
Advertisement
Table of Contents
Related Manuals for TourPro Lighting ExtremeBeam 230
Summary of Contents for TourPro Lighting ExtremeBeam 230
- Page 1 EXTREME SERIES TourPro Lighting ExtremeBeam 230 WARNING:HOT! Minimum distance to flammable material=12m. Minimum distance to illuminated surface= Maximum ambient temperature t =33℃. Always disconnect from mains before replacing ENTER the lamp. Caution:Hot lamp. Allow to cool for 30 minutes LIGHT SKY before opening.
- Page 2 www.tourprolighting.com...
-
Page 3: Table Of Contents
www.tourprolighting.com Contents 1. Safety information....................2 2.Technical information....................3 3.Attachment and body size ..................4 4.Installation and connecting..................5 5. Control panel......................6 6. Menu setting......................8 7.Channel function.....................12 Circuit connecting diagram ..................17 Cleaning and maintenances ..................18 Troubeshooting ....................18 Duty exonerative and copyright protection ............19 12. Company information...................20 Congratulations on choosing our company product! We thank you for your custom. -
Page 4: Safety Information
www.tourprolighting.com SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails,the fitting falls as little as possible. -
Page 5: Technical Information
www.tourprolighting.com TECHNICAL INFORMATION Power supplies available Safety Devices: □110V □220V □100-240V 50/60Hz • Bipolar circuit breaker with thermal protection. • Automatic break in power supply in case of Lamp: overheating or failed operation of cooling system. - Brand:OSRAM,PHILIPS - Lamp power: 230W,190W,189W,180W(Apolegamic) Cooling: - Colour temperature 8000K Forced ventilation with axial fans. -
Page 6: Attachment And Body Size
www.tourprolighting.com ATTACHMENT AND BODY SIZE USER MANUAL BRACKET LAMP (fitted into projector) SAFETY CORD WARRANTY CARD DMX CABLE Attachmentcontents- Fig. 1 1 1 5 Body Size---Fig 2... -
Page 7: Installation And Connecting
www.tourprolighting.com INSTALLATION AND CONNECTING WARNING:HOT! Minimum distance to flammable material=12m. Minimum distance to illuminated surface= Maximum ambient temperature t =33℃. Always disconnect from mains before replacing ENTER the lamp. Caution:Hot lamp. Allow to cool for 30 minutes before opening. LIGHT SKY Exterior surface temperature under steady DOWN state condition =45 . -
Page 8: Control Panel
www.tourprolighting.com Connecting to the control signal line (DMX) - Fig. 5 ◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first projector's output to the second projector' input and connect the second projector's output to the third projector's input. - Page 9 www.tourprolighting.com Number series: WARNING:HOT! 8 8 8 8 Caution:Hot lamp. Allow to cool for 30 minutes Minimum distance to flammable material=12m. before opening. Minimum distance to illuminated surface= Exterior surface temperature under steady Maximum ambient temperature t =33℃. ℃ state condition =45 . Always disconnect from mains before replacing Prolonged exposure to unshielded lamp can the lamp.
-
Page 10: Menu Setting
www.tourprolighting.com MENU SETTING(V1.0) LCD series: Setup Invert Option Invert Pan Address Channel Standard(16ch) Mode Invert Tilt Vector(20ch) return (ESC) return (ESC) Option Display Reversal Information Manual return (ESC) Open Control BackLight Auto Close(15s) Reset return (ESC) Factory default return (ESC) System Information XY:V... - Page 11 www.tourprolighting.com Manual Lamp Control SystemReset Reset Pan/Tilt Reset Effect Reset return (ESC) Factory Password Input: Restore the factory parameters default 1111 Password Input: Value:000-255 Color Adjust 2222 Value:000-255 Gobo Adjust return (ESC) Value:000-255 Pan Adjust Value:000-255 Tilt Adjust Value:000-255 Fan MaxSP Adjust return (ESC) When the dmx signal is fine, it shows "...
- Page 12 www.tourprolighting.com LED series: Ⅰ Ⅱ Ⅳ Ⅲ Main Function Menu Menu Menu Menu Menu A.001 ADDR Adjusting DMX addressing data A.512 DMX.S 20CH Default MODE 16CH Close control of DMX console L.DMX Open DMX console control Invert Pan INV.P INV.T Invert Tilt PERS COL.W...
- Page 13 www.tourprolighting.com Ⅰ Ⅱ Ⅲ Ⅳ Main Function Menu Menu Menu Menu Menu 1ch controller dmx value C.*** 2ch controller dmx value S.*** D.*** 3ch controller dmx value 4ch controller dmx value G.*** 5ch controller dmx value 5.*** 6.*** 6ch controller dmx value 7ch controller dmx value M.*** 8.***...
-
Page 14: Channel Function
www.tourprolighting.com CHANNEL FUNCTION CHANNEL CHANNEL MODE CHANNEL STANDARD VECTOR COLOUR WHEEL COLOUR WHEEL STOP/STROBE STOP/STROBE DIMMER DIMMER FIXGOBO FIXGOBO PRISM INSERTION PRISM INSERTION PRISM ROTATION PRISM ROTATION PRISM MOVE PRISM MOVE FROST FROST FOCUS FOCUS PAN FINE PAN FINE TILT TILT TILT FINE TILT FINE... - Page 15 www.tourprolighting.com •COLOUR WHEEL- channel 1 • DIMMER- channel 3 EFFECT EFFECT FAST ROTATION From slow to fast dimmer SLOW ROTATION 124-127 DARK BLUE+WHITE 120-123 DARK BLUE • FixGOBO - channel 4 116-119 CTB+DARK BLUE 111-115 EFFECT 107-110 CTO 1+CTB GOBO 16 SHAKE FAST SPEED 103-106 CTO 1 GOBO 16 SHAKE,SLOWS PEED...
- Page 16 www.tourprolighting.com • PRISM INSERTION - channel 5 •FOCUS-channel 9 EFFECT EFFECT NEAR PRISM INSERTED PRISM EXCLUDED • PRISM ROTATION - channel 6 EFFECT DISTANT FAST FORWARDS ROTATION STOP SLOW FORWARDS ROTATION 191-192 STOP SLOW BACKWARDS ROTATION 180° FAST BACKWARDS ROTATION POSITION 180°...
- Page 17 www.tourprolighting.com • TILT FINE- channel 13 EFFECT EFFECT • TILT- channel 12 •FUNCTION- channel 14（UNUSED） EFFECT EFFECT 250° UNUSED...
- Page 18 www.tourprolighting.com •RESET -channel 15 EFFECT COMPLETE RESET PAN / TILT MOTOR RESET HEAD RESET UNUSED RANGE •LAMP CONTROL - channel 16 EFFECT LAMP ON LAMP OFF(3S) UNUSED RANGE TIMING CHANNELS TIMING NO . CHANNEL FUNCTION CHANNEL 0 Unused Range X / Y time 1-255 X Yspeed from fast to slow 0 Unused Range Colour time...
-
Page 19: Circuit Connecting Diagram
www.tourprolighting.com Circuit connecting diagram Electronic ballast LAMP DC380V DC28V DC12V Switched power supply DMX DPY LAMP TEMP FAN1 FAN2 Fuse 5A TEM1 TEM2 Gobo Zoom Prism Color Focus Empty Empty Empty MCU1 DMX512 Magnetic Magnetic Magnetic Magnetic Magnetic Empty Empty power OP-X MCU2... -
Page 20: Cleaning And Maintenances
www.tourprolighting.com CLEANING AND MAINTENANCES ●In order to ensure the projector could work normally.It should be kept clean always .It is recommended that the fans and ventilation in let should be cleaned every 15 days.The lens and dichroic colour filters should also be reg -ularly cleaned to maintain an optimum light output.Do not use any type of solvent on dichroic colour filters.It will damage the projector. -
Page 21: Duty Exonerative And Copyright Protection
www.tourprolighting.com ■The light shadow is fogging: ◎Please check the data on the DMX 512 controller is suitable for the electric focus. ◎Please check the machenical parts is jamging.After cleaning,please add some temperature -durable juice. ■The light works interruptly: ◎Please check if the fan works normally or mote clogging. ◎Please check whether the abstract heat have the mote clogging. -
Page 22: Company Information
www.tourprolighting.com FLY DRAGON LIGHTING EQUIPMENT CO.,LTD Distributed By...
