Summary of Contents for TourPro Lighting MagicPar QZ-1915

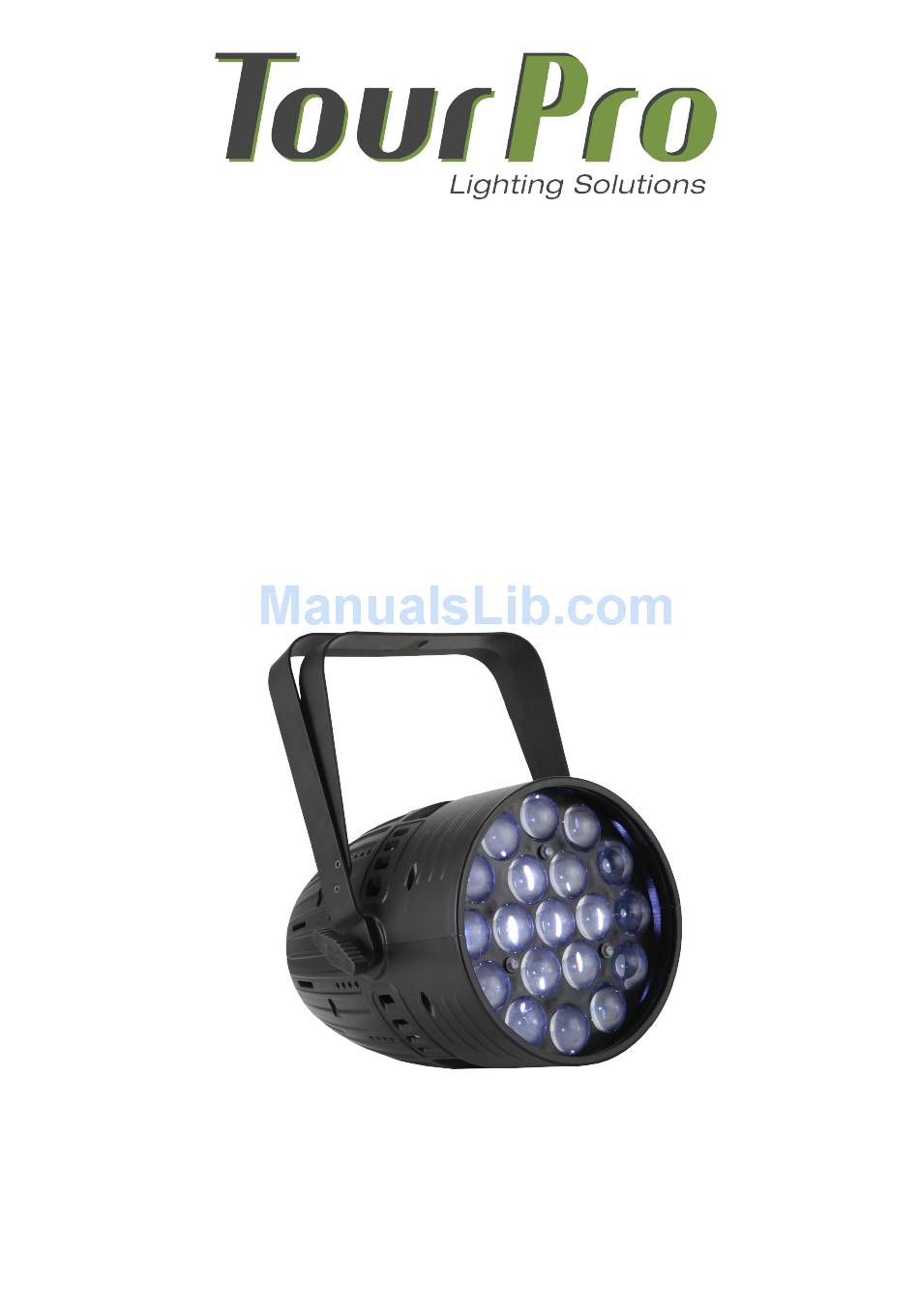

- Page 1 MagicPar QZ-1915 Zoom Par Instruction Manual PROFESSIONAL SHOW LIGHT...
-
Page 2: Safety Precautions
www.tourprolighting.com ------------------------------ 2014 Ver05.14----------------------------------- Unpacking: Thank you for purchasing QZ-1915 Zoom Par. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. -
Page 3: Dmx512 Connection
www.tourprolighting.com l Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point they exit from the unit. l Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for details. - Page 4 www.tourprolighting.com DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.
- Page 5 www.tourprolighting.com DMX Chart [d.001] Mode (5 DMX Channels) CHANNEL VALUE FUNCTION 0-255 Zoom function 5°-60° 0-255 Red intensity 0-255 Green intensity 0-255 Blue intensity 0-255 White intensity [A.001] Mode ( 7 DMX Channels) CHANNEL VALUE FUNCTION 0-255 Zoom function 5°-60° 0-255 Dimmer No function...
- Page 6 www.tourprolighting.com Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2.
