MOUNTING INSTRUCTION

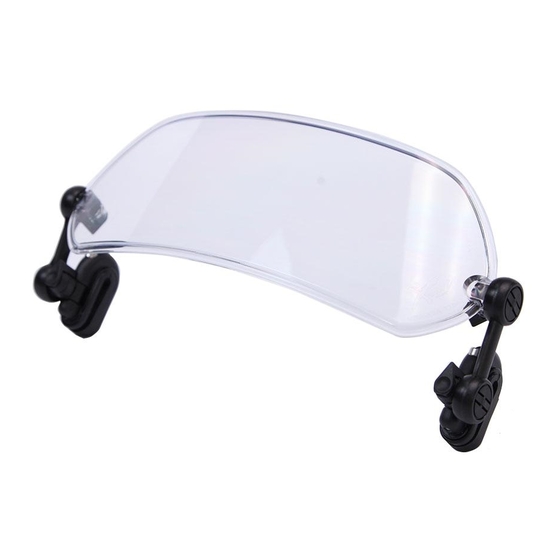

Thank you for choosing an MRA X-creen. Your new X-creen is a very versatile adjustable spoiler
designed to improve your comfort and riding pleasure. Following this guide will ensure you receive
the maximum benefits it can offer, so please read it through carefully and speak to your supplying
dealer if you have any questions.

Before Assembling!

Please read these mounting instructions thoroughly before starting and check the parts for
completeness against the enclosed list.
We recommend you have the spoiler installed by a motorcycle workshop or technician.
X-creen is designed for mounting on motorcycles and scooters only.
If there are no existing mounting holes in your windscreen you will need to drill your windscreen
first, so please proceed to section C (Drilling the Basic Windscreen).
If you wish to mount your X-creen using the optionally available XCC Tension Clamp Brackets kit (Art.
No. 4025066125074), please refer to the instructions in section D.
A - Assembly Process for Option "S" (Single Joint):
You will need 2.5 mm and 3 mm Allen keys for assembly and installation.
1. Put four nuts (13) into the XC spoiler (1) and assemble part (3) with the screws M4x8 (12).
2. Insert part (8) and part (4) in part (3) and attach it by pushing in part (2) in transverse/sideways
direction (= open position).
3. Press the nuts (13) in part (9) and assemble it to part (8) with the screws M4x20 (11).
4. Put the preassembled X-creen on the windscreen and attach it with the nuts (13), the cover
(10) and the screws M4x8 (12) to the provided drilled holes.
5. Tighten the screws M4x20 (11) of the mounting feet FXC-3 (9).
B - Assembly Process for Option "D" (Double Joint):
You will need 2.5 mm and 3 mm Allen keys for assembly and installation.
1. Put the nuts (13) into the XC spoiler (1) and assemble part (3) with the screws M4x8 (12) on
the left and on the right.
2. Insert parts (5) and (4) and attach them by pushing in part (2) in a transverse/sideways
direction (= open position).
MRA-Klement GmbH
Siemens Str. 6
D-79331 Teningen
+49 7633 9389 0
+49 7663 9389 11
info@mra.de
www.mar.de
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-creen and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MRA X-creen

  • Page 1 If there are no existing mounting holes in your windscreen you will need to drill your windscreen first, so please proceed to section C (Drilling the Basic Windscreen). If you wish to mount your X-creen using the optionally available XCC Tension Clamp Brackets kit (Art. No. 4025066125074), please refer to the instructions in section D.
  • Page 2 4. Put the rubber hoses (16) into the XCC brackets, push the screws M6x30 (17) through them and screw the nuts M6 (18) with the washers (19) on them. 5. Now put the X-creen centrally onto the windscreen so that the rubber hoses are on the edge of the windscreen.
  • Page 3 Assemble the parts as described in section A "Assembly Process for Option S". Only ever clean your X-creen with water, neutral soap and a sponge. Never wipe your X-creen with a dry cloth or use solvents as these may scratch or damage its surface.
