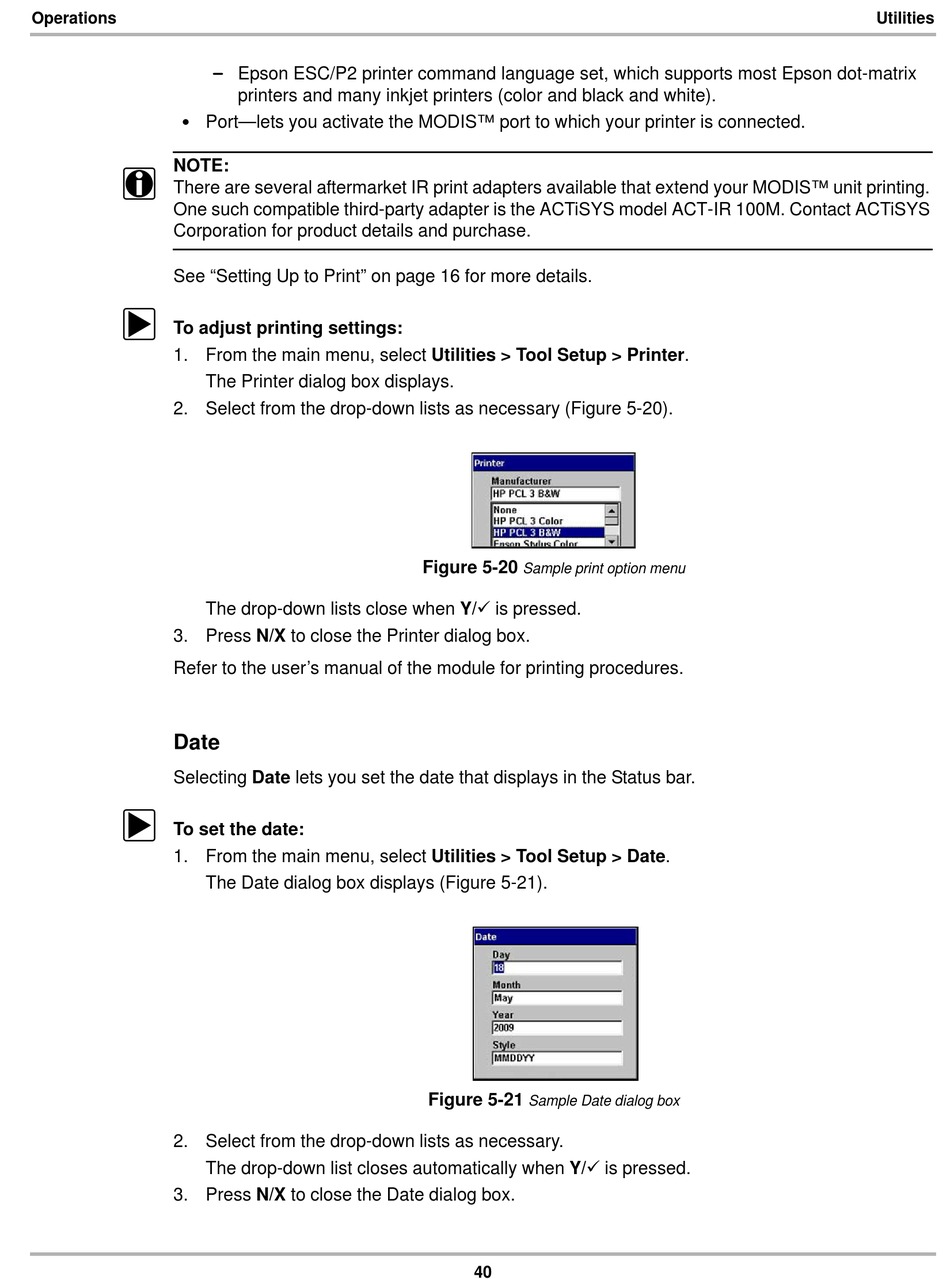

Snap-On MODIS User Manual page 47

Operations
• Port—lets you activate the MODIS™ port to which your printer is connected.
NOTE:
i
There are several aftermarket IR print adapters available that extend your MODIS™ unit printing.
One such compatible third-party adapter is the ACTiSYS model ACT-IR 100M. Contact ACTiSYS
Corporation for product details and purchase.
See "Setting Up to Print" on page 16 for more details.
z
To adjust printing settings:
1. From the main menu, select Utilities > Tool Setup > Printer.
The Printer dialog box displays.
2. Select from the drop-down lists as necessary (Figure 5-20).
The drop-down lists close when Y/a is pressed.
3. Press N/X to close the Printer dialog box.
Refer to the user's manual of the module for printing procedures.
Date
Selecting Date lets you set the date that displays in the Status bar.
z
To set the date:
1. From the main menu, select Utilities > Tool Setup > Date.
The Date dialog box displays (Figure 5-21).
2. Select from the drop-down lists as necessary.
The drop-down list closes automatically when Y/a is pressed.
3. Press N/X to close the Date dialog box.
– Epson ESC/P2 printer command language set, which supports most Epson dot-matrix
printers and many inkjet printers (color and black and white).
Figure 5-20
Sample print option menu
Figure 5-21
Sample Date dialog box
40
Utilities
