3.6 Installing the Battery Pack

Follow the instruction below to install the battery pack.
z
To install the battery pack:
Insert the battery pack into the designated slot at the bottom of your unit near the right
•
handgrip (Figure 3-5).
IMPORTANT:
The battery pack only fits one way and will click into place when properly inserted. Do not force the
battery pack into the slot.

3.7 Connecting the AC/DC Power Supply

The AC/DC power supply is required to charge the battery pack. Refer to "AC/DC Power Supply"
on page 11 for the connection procedure.

3.8 Charging the Battery Pack

The battery pack must be fully charged before it can be the sole source of power for your
MODIS™ unit.
Refer to "Power Management" on page 38 to set your charging mode preference.
z
To charge the battery pack:
1. Make sure your battery pack is installed properly.
2. Connect the AC/DC power supply to your MODIS™ unit and plug the other end into an
appropriate wall socket.
3. Power on your unit, if needed.
NOTE:
i
Your MODIS™ unit must be powered on in order to charge the battery pack.

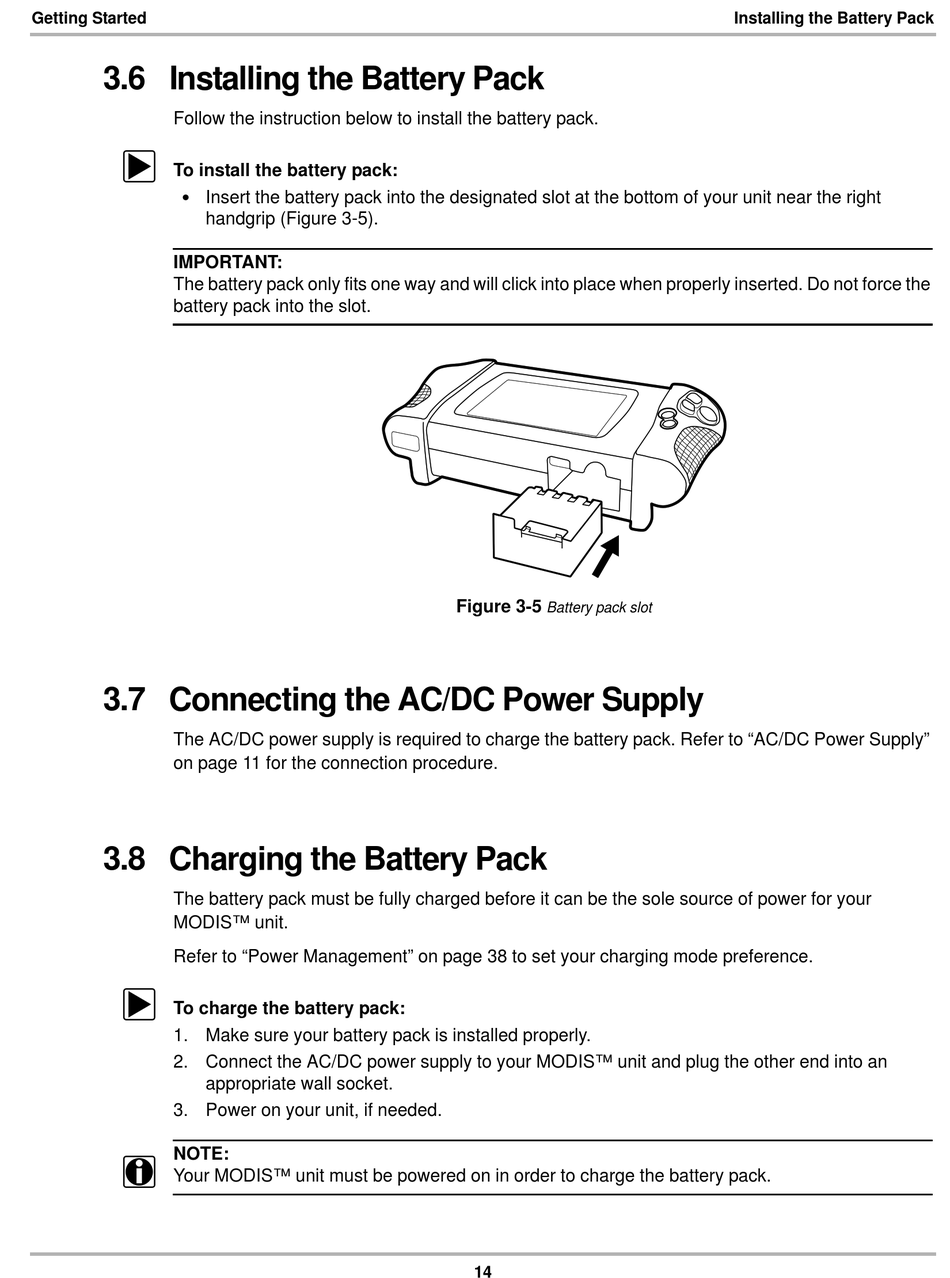

Figure 3-5
Battery pack slot
