Operations

5.4 Multimeter

The Multimeter button (Figure 5-4) accesses the Graphing Meter and Digital Meter.
Refer to the Lab Scope Plug-in User Manual for details.

5.5 Scope

The Scope button (Figure 5-5) accesses the Lab Scope and Ignition Scope.
Refer to the Lab Scope Plug-in User Manual for details.

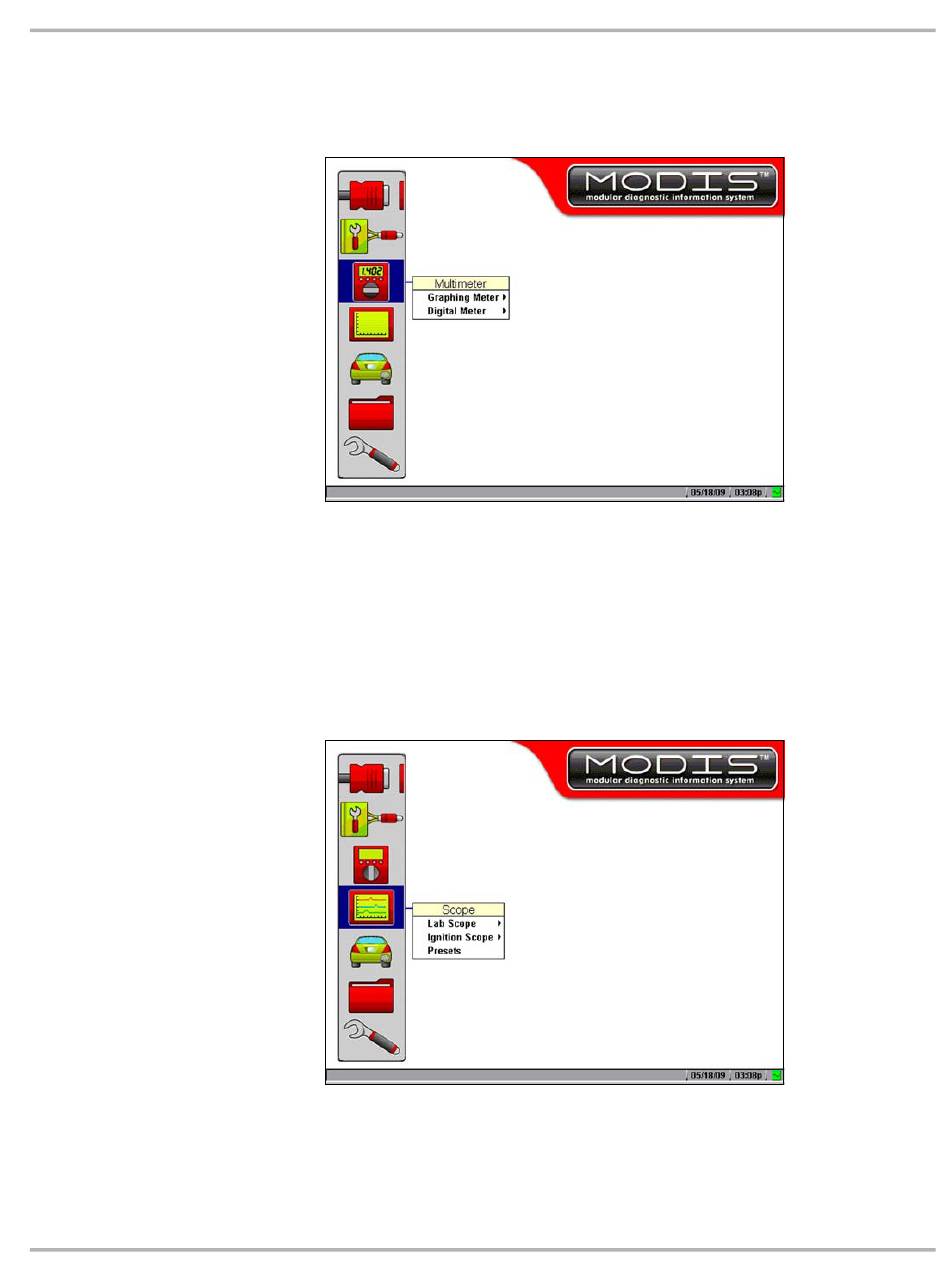

Figure 5-4
Sample Multimeter button menu and submenu
Figure 5-5
Sample Scope button menu
28
Multimeter
