Citizen E784 Abbreviated Instruction

English
• This watch is solar-powered. Expose the dial to light and use it sufficiently charged.
• To see details of charging time, specifications and operations, refer to the instruction manual:

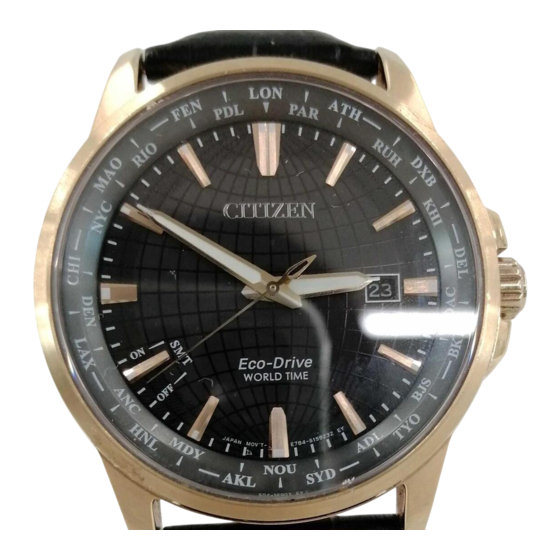

Component identification
Hour
hand
Summer time setting
(SMT ON/OFF)
Second
hand
• Actual appearance may differ from the illustration.
• The crown has two positions when pulling it out.
Setting the world time
This watch can indicate the time around the world according to which of 26 time
zones (offsets from UTC — Coordinated Universal Time) is chosen.
1.
Pull the crown out to position 1 .
The second hand points the time zone currently set.
2.
Rotate the crown clockwise to select an area.
The hour and minute hands start moving as you finished to select an area.
• Date indication also moves synchronously.
3.
When the hands and indication stop, Push the crown in to
position 0 to finish the procedure.
E784 Abbreviated instruction
Table of time zones and representative places
• Countries or regions may change time zones for various reasons.
• When using the watch in an area not listed in the table, select an area name in
Minute hand
the same time zone.
Time zone
Button 0
(recessed)
+1
+2
+3
Crown
+4
+5
Date
+5.5
indication
+6
+7
Area indication
+8
+9
+9.5
+10
Crown's position
+11
+12
-11
0 1 2
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
• The offsets in the table are based on the standard time.
E784 instruction manual
Second
Area name
hand
LON
London
0
PAR
Paris
2
ATH
Athens
4
RUH
Riyadh
7
DXB
Dubai
9
KHI
Karachi
11
DEL
Delhi
14
DAC
Dhaka
16
BKK
Bangkok
18
BJS
Beijing /Hong Kong
21
TYO
Tokyo
23
ADL
Adelaide
25
SYD
Sydney
28
NOU
Noumea
30
AKL
Auckland
32
MDY
Midway
35
HNL
Honolulu
37
ANC
Anchorage
39
LAX
Los Angeles
42
DEN
Denver
44
CHI
Chicago
46
NYC
New York
49
MAO
Manaus
51
RIO
Rio de Janeiro
53
FEN
Fernando de Noronha
56
PDL
Azores
58
Representative area
