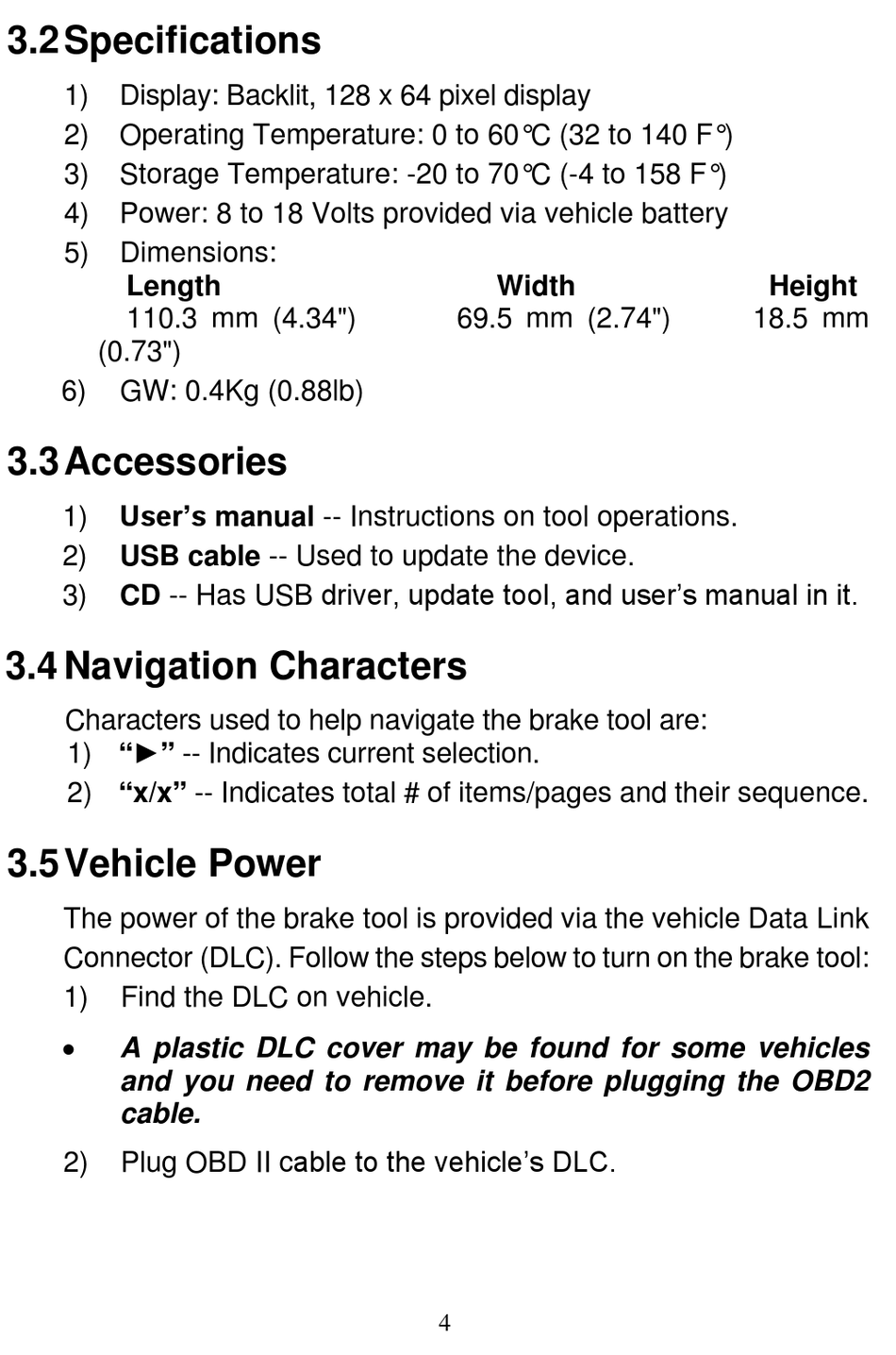

3.2 Specifications

1) Display: Backlit, 128 x 64 pixel display
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) Power: 8 to 18 Volts provided via vehicle battery
5) Dimensions:
Length
110.3 mm (4.34 " )
(0.73 " )
6) GW: 0.4Kg (0.88lb)

3.3 Accessories

User's manual -- Instructions on tool operations.
1)
2) USB cable -- Used to update the device.
CD -- Has USB driver, update tool, and user's manual in it.
3)

3.4 Navigation Characters

Characters used to help navigate the brake tool are:
1) "►" -- Indicates current selection.
2) "x/x" -- Indicates total # of items/pages and their sequence.

3.5 Vehicle Power

The power of the brake tool is provided via the vehicle Data Link
Connector (DLC). Follow the steps below to turn on the brake tool:
1) Find the DLC on vehicle.

A plastic DLC cover may be found for some vehicles
and you need to remove it before plugging the OBD2
cable.
Plug OBD II cable to the vehicle's DLC.
2)
Width
69.5 mm (2.74 " )
4
Height
18.5 mm
