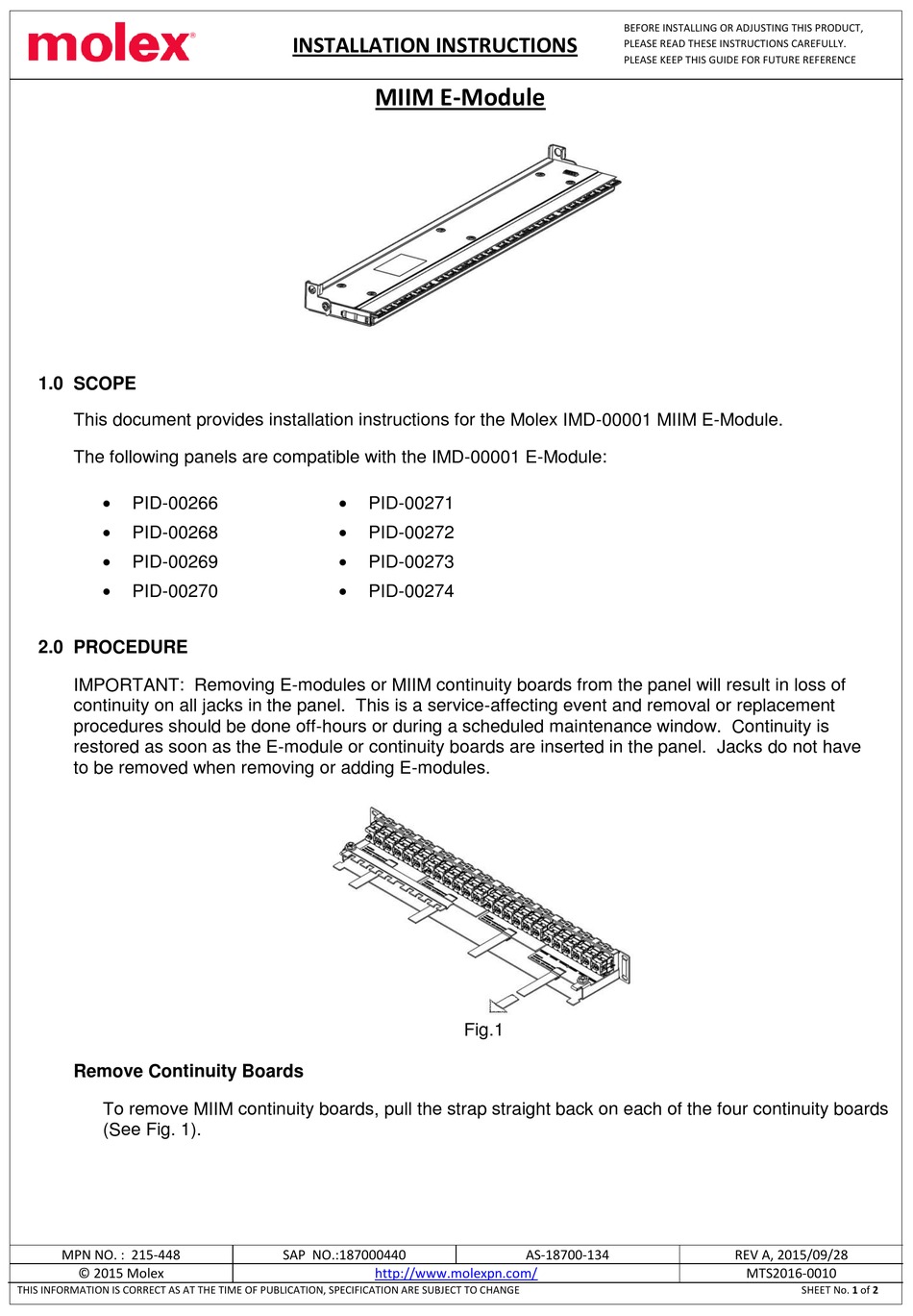

1.0 SCOPE
This document provides installation instructions for the Molex IMD-00001 MIIM E-Module.
The following panels are compatible with the IMD-00001 E-Module:
PID-00266
PID-00268
PID-00269
PID-00270
2.0 PROCEDURE
IMPORTANT: Removing E-modules or MIIM continuity boards from the panel will result in loss of
continuity on all jacks in the panel. This is a service-affecting event and removal or replacement
procedures should be done off-hours or during a scheduled maintenance window. Continuity is
restored as soon as the E-module or continuity boards are inserted in the panel. Jacks do not have
to be removed when removing or adding E-modules.
Remove Continuity Boards
To remove MIIM continuity boards, pull the strap straight back on each of the four continuity boards
(See Fig. 1).
MPN NO. : 215-448
© 2015 Molex
THIS INFORMATION IS CORRECT AS AT THE TIME OF PUBLICATION, SPECIFICATION ARE SUBJECT TO CHANGE
INSTALLATION INSTRUCTIONS
MIIM E-Module
PID-00271
PID-00272
PID-00273
PID-00274
SAP NO.:187000440
http://www.molexpn.com/
BEFORE INSTALLING OR ADJUSTING THIS PRODUCT,
PLEASE READ THESE INSTRUCTIONS CAREFULLY.
PLEASE KEEP THIS GUIDE FOR FUTURE REFERENCE
Fig.1
AS-18700-134
REV A, 2015/09/28
MTS2016-0010
SHEET No. 1 of 2
