Summary of Contents for Dser RoboGeek 21T

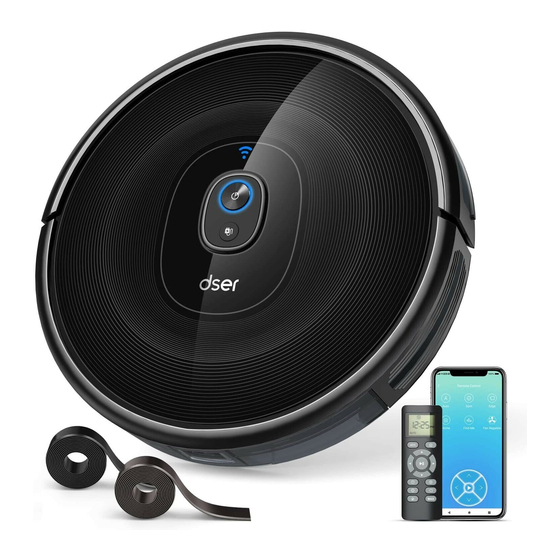

- Page 1 User Manual RoboGeek 21T (R3760)
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Use Restrictions Battery and Charging Product Diagram Robot Accessories Charging Dock Remote Control Operating and Programming Notes Before Cleaning Quick Start How Robot Clean Your Home Cleaning Schedule Use Your Robot Cleaner with “dserlife” App Regular Robot Care Emptying Robot’s Bin Cleaning Robot’s Filter... -
Page 3: Important Safety Information
Important Safety Information This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Battery And Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is operating. Store and operate your robot in room temperature environments only. Do not use this device to pick up anything that is burning or smoking. Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet. - Page 5 Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms. Never handle the Charging Dock with wet hands. Always disconnect your robot from the Charging Dock before cleaning or maintaining it. Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage. Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regulations.
-
Page 6: Product Diagram
Product Diagram Robot WiFi Indicator Indicator flashes blue quickly: the product enters the reset WIFI connection mode Indicator flashes blue slowly: the product has paired with phone, please input WiFi name and password in App Indicator blue long bright: The product has been successfully connected to the mobile App. Power Button Long press to turn on / off the robot, short press to pause and continue to work. - Page 7 Anti-Collision Sensors Anti-Drop Sensors Charging Contacts Universal Wheel Side Brushes Battery Pack Driving Wheels Power Switch Main Brush Dust Bin...
-
Page 8: Accessories
Accessories 1 x Charging Dock 1 x Adapter 1 x Remote Control (with 2 x AAA battery) 1 x Dust Bin 4 x Side Brushes 1 x Sponge Filter and High Efficiency Filter 1 x Brush Cable Ties (x5) -
Page 9: Charging Dock
Charging Dock Charging indicator Location for remote control Signal transmission area Butting charging pole piece... -
Page 10: Remote Control
Remote Control Mode and time display screen Automatic cleaning Automatic re-charging button Direction buttons Start / Pause button Clock setup button Scheduling button Spot cleaning button Edge cleaning button Small-space button Max vacuuming cleaning button... -
Page 11: Operating And Programming
Operating and Programming Notes Before Cleaning Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be pulled off a table or shelf. -
Page 12: Quick Start
Quick Start Plug in the Charging Dock and place the remaining wire into the trunking at the bottom of the Charging Dock Install Side Brushes Failure to place the remaining wire into the Attach Side Brushes to the bottom of Robot by pressing a brush trunking, may cause Robot to become stuck into each slot until it clicks. - Page 13 Pause Start Cleaning Cycle Press the power button once to wake up the robot. To pause the robot during a cleaning cycle press the button on robot or press the button on the Remote Control. Press the power button again to start a cleaning cycle (or button on Remote Control).
-
Page 14: How Robot Clean Your Home
How Robot Clean Your Home Robot continues this process until it has cleaned an entire level of your home. If its battery gets low before finishing a cleaning cycle, Robot returns to the Charging Dock to recharge. Auto Cleaning At the start of a cleaning cycle, Robot will clean your home efficiently. At various times throughout the cleaning cycle, Robot touches up around the edges of the room, as well as chair legs and other furniture. - Page 15 Cleaning Preferences Edge Cleaning After robot finishes cleaning the open areas of your floor, it uses Spot Cleaning Edge Clean to ensure that it has cleaned along walls and around When you select Spot Cleaning, robot intensely cleans a localized furniture legs.
- Page 16 Manual Cleaning You can direct Robot to clean a particular area by using the directional buttons on the remote control. Move forward Turn left Turn right Move backward...
-
Page 17: Cleaning Schedule
Cleaning Schedule The cleaner has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available only through the Remote Control. Note: Please make sure the Remote Control near by the Robot while setting the Clock or Schedule. Set the Remote Control’s Clock Press button on Remote Control, and... - Page 18 Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button, the Robot will then the hour section begins to flash in the figures. Press the button to select “BEEP” when the Cleaning Schedule setting Cleaning Schedule display setting window.
-
Page 19: Use Your Robot Cleaner With "Dserlife" App
Use Your Robot Cleaner with “dserlife” App Download “dserlife” App Search and download the robot cleaner App “dserlife” from Google Play or App Store Note: Download on the App Store Download Download on the dserlife Google Play... - Page 20 Register / Login an Account(ie. iOS App) Open the App and register an account and log in.
- Page 21 Add Your Device Choose your device + XXX...
- Page 22 Turn on Your Robot Cleaner a. Press the Power Switch Button at the bottom of the robot cleaner. b. Long press the Power Button and auto-charging button on the top of the robot together, the WiFi indicator will flash. Then you can connect device with your phone.
- Page 23 Edge cleaning App Remote Control Auto-cleaning Spot cleaning Auto-charging Fan regulate(3 levels to choose) Find your robot(robot will beep) Forward Turn Left Turn Right Backward Start / Pause...
- Page 24 Device Info Information about the device name and details Other 1. Share Device: add an another App account to control this device 2. Accessories: to remind you to replace your old accessories in time 3. Schedule: set a time to auto cleaning 4.
-
Page 25: Regular Robot Care
Regular Robot Care To keep robot running at peak performance, perform the following care procedures. If you notice robot picking up less debris from your floor, then empty the bin, clean the filter and clean the extractors. Robot Part Care Frequency Replacement Frequency Once per week (twice per week in homes Every 2 months... -
Page 26: Emptying Robot's Bin
Emptying Robot’s Bin Cleaning Robot’s Filter Press bin release button to remove bin. Remove filter by grasping the white tab. Shake off debris by tapping the filter against your trash container. -
Page 27: Cleaning Robot's Side Brush
Cleaning Robot’s Side Brush Wipe the charging contacts on Robot and the Charging Base with a clean, dry cloth. Remove the brush Clean the brush and the brush post, and reinstall the brush. Cleaning Robot’s Cliff Sensors and Charging Contacts Wipe Robot’s Cliff Sensors with a clean, dry cloth. -
Page 28: Cleaning Robot's Floor Tracking Sensor
Cleaning Robot’s Floor Tracking Clean the rolling brush with the provided cleaning tool or a vacuum cleaner. Sensor Use a clean, dry microfiber or soft cotton cloth to wipe any debris that has accumulated in the round sensor opening on the right side of the bottom surface. Do not spray cleaning solution directly into the sensor opening. -
Page 29: Battery And Charging Information
If storing robot off of the Charging Dock, remove the battery first. Then store robot and the battery in a cool, dry place. Battery Disposal Contact your local waste management authority for battery recycling and disposal regulations in your area. Battery Replacement ou can visit dser's website: www.dserlife.com to purchase the battery or other accessories for the robot. - Page 30 Battery Removal Reinstall the battery with the battery label and tabs facing up. Follow these instructions to remove and reinstall robot’s battery: Unscrew the door and the two screws on the battery door, then remove. Reinstall the battery door and the two screws. Take care not to pinch the side brush in the battery door when re-installing the battery.
-
Page 31: Troubleshooting
Troubleshooting Robot will tell you something is wrong with a two-tone distress sound followed by message. The indicator will also blink or lit red. Refer to the chart as below to resolve Robot’s problem. If the problem is not resolved, please contact our COST FREE customer service team for more assistance. - Page 32 Indicator Flashing Red Robot Blinks and Says Likely Cause What to Do Robot is stuck and one of the wheels is not making contact with the floor(hanging in mid-air). One beep Restart cleaning in a new location. Robot may be in an extremely large room and the bumper is not registering obstacles.
- Page 33 Frequently asked questions Problems Solutions Make sure the main power switch is in the ON position. Make sure the battery is fully charged. cannot be activated. Replace the batteries (2 AAA) in the remote control. Make sure the remote control is within range (16 ft/5 m) of Robot. If you still have trouble, turn off the main power switch and then turn it back on.
-
Page 34: Specifications
Problems Solutions Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. Robot cannot return to When Robot is in the vicinity of the Charging Base, it will return more quickly. However, if the Charging Base the Charging Base. - Page 35 Use the Boundary Strip With the Boundary Strip, you can keep Robo away from any area or item you do not want Robo to clean. the cleaner will recognize the Boundary Strip and will not cross into the blocked-off area. 1.
- Page 36 E-mail: support@dserlife.com Ins: @dser_offical For FAQs and more information, Facebook: @dserlife YouTube: @dserlife please visit www.dserlife.com. Twitter: @dserlife...
