TABLE OF CONTENTS
English
User manual
/i
1
2
3
4
5
6
7
8
9
1
PREFACE
1.1

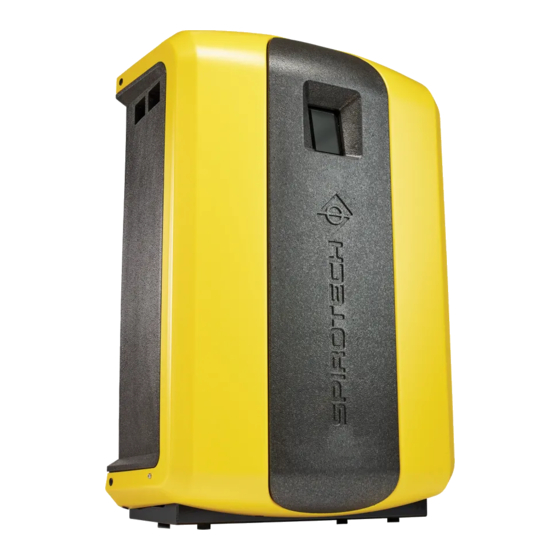

About the device
This user manual describes the installation,
commissioning and operation of the following SpiroVent
Superior types:
/i
Type
Article code Description
S600
MV06A..
Automatic vacuum degasser
S600-R MV06R..
Automatic vacuum degasser,
including integrated refill
function with direct refill
connection.
S600-B MV06B..
Automatic vacuum degasser,
including integrated refill
function with backflow
prevention.
1.2
About this document
Read the instructions before installation, commissioning
and operation. Keep the instructions for future reference.
The original language of the document is English. All
other available language versions are translations of the
original instructions.
The illustrations in this document show a typical setup
with relevant details for instructional use only.
Differences between the illustrations and the device are
possible but do not have an effect on the
comprehensibility of this document.
All rights reserved. No part of this manual may be
duplicated and/or made public through the Internet, by
means of printing, photocopying, microfilm or in any
other way without prior written permission from
Spirotech bv.
User manual - 1.0
This manual has been composed with the utmost care.
Should, however, this manual contain any inaccuracies,
Spirotech bv cannot be held responsible for this.
2
1.3
Symbols
3
7
Throughout the instructions the following symbols are
used:
7
Warning or important note
8
13
17
20
23
Risk of electric shock
24
Risk of burning
English
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spirotech SpiroVent Superior Series
Summary of Contents for Spirotech SpiroVent Superior Series
-
Page 1: Table Of Contents
TABLE OF CONTENTS This manual has been composed with the utmost care. English User manual Should, however, this manual contain any inaccuracies, Spirotech bv cannot be held responsible for this. Preface Symbols Introduction Technical specifications Throughout the instructions the following symbols are... -
Page 2: Introduction
INTRODUCTION Overview of the unit S600-B S600 S600-R Power terminal Pump Control unit - Power box Control unit (HMI) SmartSwitch Cooling channel Automatic air vent Cover Check valve of the air vent Inlet connection Deaeration vessel Outlet connection Valve behind the pressure gauge Refill connection Pressure gauge Solenoid valve refill... - Page 3 Operation The figure below schematically shows the operation of the unit. The letter indications correspond with the main figure on the previous page. S600 S600-B S600-R User manual - 1.0 English...
- Page 4 Remote monitoring 2.2.1 General The Spirovent Superior is a fully automatic vacuum degasser for heating and cooling installations, filled with heat transfer fluids. These fluids contain dissolved and 2.4.1 Building Management System (BMS) free gases. The Spirovent Superior removes these gases The Superior has a series of external connectors for from the installation, preventing problems, caused by remote monitoring and control.
- Page 5 Power input: Voltage / Frequency: IP class: Pressure PS: Temperature TS: Serial no.: Year of manufacture: Weight: Spirotech bv - The Netherlands Type of the unit Absorbed power Supply voltage Protection class System pressure System temperature Serial number Year of construction Weight User manual - 1.0...
-
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS General specifications Item S600 S600-R S600-B Empty weight [kg] Noise level [dB (A)], at 1 m Fluid connections inlet/ Swivel G¾” female Swivel G¾” female Swivel G¾” female outlet Fluid connection refil Swivel G¾” female Swivel G¾” female Swivel G¾”... -
Page 7: Installation And Commissioning
INSTALLATION AND COMMISSIONING Installation conditions Install the unit on a frost-free, well-ventilated place. • Install the unit in accordance with the local • guidelines and rules. Connect the unit to a 230 V / 50 -60 Hz supply. • Install the unit as bypass on the main line of the •... - Page 8 Mounting and installation 5.3.1 Mounting Remove the fasteners. Keep them for future use. Place the unit on a flat surface, against a flat, closed wall. It is possible to mount the unit to the floor. Use brackets and adequate fasteners (A). Under condensing circumstances: It is possible to remove the plug from the drain hole (B).
- Page 9 Insert a valve (B) in each branch. Preferably, use Connect the makeup water supply line to the refill lockable ball valves. connection line (C). NOTE CAUTION With these valves the unit can be isolated. Keep valves closed until the unit is installed Use a locally approved backflow •...
- Page 10 Loosen and remove the connector cap (A). Fasten the connector cap (B) to the connector (C). Put back the connector in the frame. Fasten the cable gland (A). Feed a 3-core supply cable (C) through cable gland (A) and the connector cap (B). Contact Connector External refill...
- Page 11 Connect the LAN cable to the LAN connector (A) for Open the deaeration valve (A) to deaerate the internet connection. pump. CAUTION Make sure that the LAN cable does not touch warm parts. Commissioning 5.4.1 Filling the unit For units of -R and -B versions: Open the shutoff valve (A) in the refill line.
-
Page 12: Operation
5.4.3 Check operation Set the date and time Move the wheels of the time indicator (HH:MM:SS) to the correct time in hours (HH), minutes (MM), and seconds (SS). Move the wheels of the date indicator (DD:MM:YY) to the correct date in day (DD), month (MM), and year (YY). - Page 13 Page-specific content Button/indicator Description Navigation bar Selection wheel System connection indicator; and Error/warning indicator 6.1.2 Buttons and indicators Button/indicator Description On/off button Menu button Range indicator with movable labels Information button Home button Confirm button 6.1.3 Overview of the pages Page Content Next page button...
- Page 14 Settings Settings, refer to § 6.1.5 This pressure should be lower than Software upgrade Only accessible for Spirotech the system safety valve setting. Network Type of network Desired system The preferred system pressure. pressure...
- Page 15 Select the menu button. Select Automatic mode. Select the button Settings. Check if the settings are correct. If not, change the NOTE settings. Now the degassing process is controlled by Select the home button. the Smart switch and will start again at the Select the on/off button.
-
Page 16: Failures
FAILURES Taking out of operation WARNING Remedy failures Make sure that it is not possible to • WARNING unintentionally supply power to the system. In case of a failure always warn the • installer. Remove the power and pressure from •... - Page 17 Failure table NOTE In case the Superior continues to run only 10 The number indications correspond with the main figures minutes per event, please check the Smart in § 2.1 and § 2.2. An overview of the replacement parts Switch hose connection. has been included in §...
- Page 18 General - all types (S600, S600-R, S600-B) Problem Possible cause Correction The inlet valve is closed Open the valve. The inlet is (partly) blocked Remove the obstruction. Pressure drop inlet too high The filter (13) is clogged Clean the filter element. The outlet valve is closed Open the valve.
-
Page 19: Maintenance
MAINTENANCE Replace the interior of the solenoid valve (11) every year. Periodic maintenance NOTE With every periodic inspection, check the float valve (28) by removing some water from the break tank Proper and regular maintenance will • (27), or by a short push on the float of the float ensure correct functioning of the unit valve (28). - Page 20 Main item Spare part Article number Outlet Non-return valve R18.717 Refill line Flow sensor R61.424 Non-return valve R61.423 Solenoid valve - internal parts R12.003 Solenoid valve - coil R10.343 Level sensor Level sensor R11.559 Hoses Inlet hose (system to unit) R73.352 Outlet hose (unit to system) R73.354...
- Page 21 Maintenance card Type: Serial number: Installation date: Installed by firm: Installed by technician: Inspection date: Technician: Initials: Nature of the maintenance: Inspection date: Technician: Initials: Nature of the maintenance: Inspection date: Technician: Initials: Nature of the maintenance: Inspection date: Technician: Initials: Nature of the maintenance: Inspection date:...
-
Page 22: Guarantee
GUARANTEE Terms of guarantee The guarantee for Spirotech products is valid until 2 • years following the purchasing date. The guarantee lapses in cases of faulty installation, • incompetent use and/or non-authorised personnel trying to make repairs. Consequential damage is not covered by the •... -
Page 23: Ce Statement
The Netherlands Technically represented by the Manager PD&I, declares that the vacuum degassers: Spirotech SpiroVent Superior, models: S4, S400, S6, S600, S10 and S16 (all types) Are in compliance with all relevant demands of the following European Direc ves: Machine Direc ve - 2006/42/EC...
