Quark-elec Manual
NMEA 2000/0183 Bi-directional Converter
Features
Converts the most common NMEA 0183 sentences into NMEA 2000 PGNs
Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences
Galvanic Opto-isolation on NMEA 0183 input
Galvanic Opto-isolation on NMEA 2000 CAN bus connection
Compatible with all NMEA 0183 versions without configuring
Configurable baud rate
Free Firmware updates provided when new features and conversions are added. (Update via
USB from Windows PC)
Pre-fitted cables for ease of installation
NMEA 0183 sentences output through WiFi/USB
NMEA 2000 PGNs output through WiFi/USB (in PCDIN format)
WiFi supports Ad-hoc and station mode
https://www.quark-elec.com
V4.0
QK-A032
Manual
1 of 22
2019
Advertisement
Table of Contents
Related Manuals for Quark-Elec QK-A032
Summary of Contents for Quark-Elec QK-A032

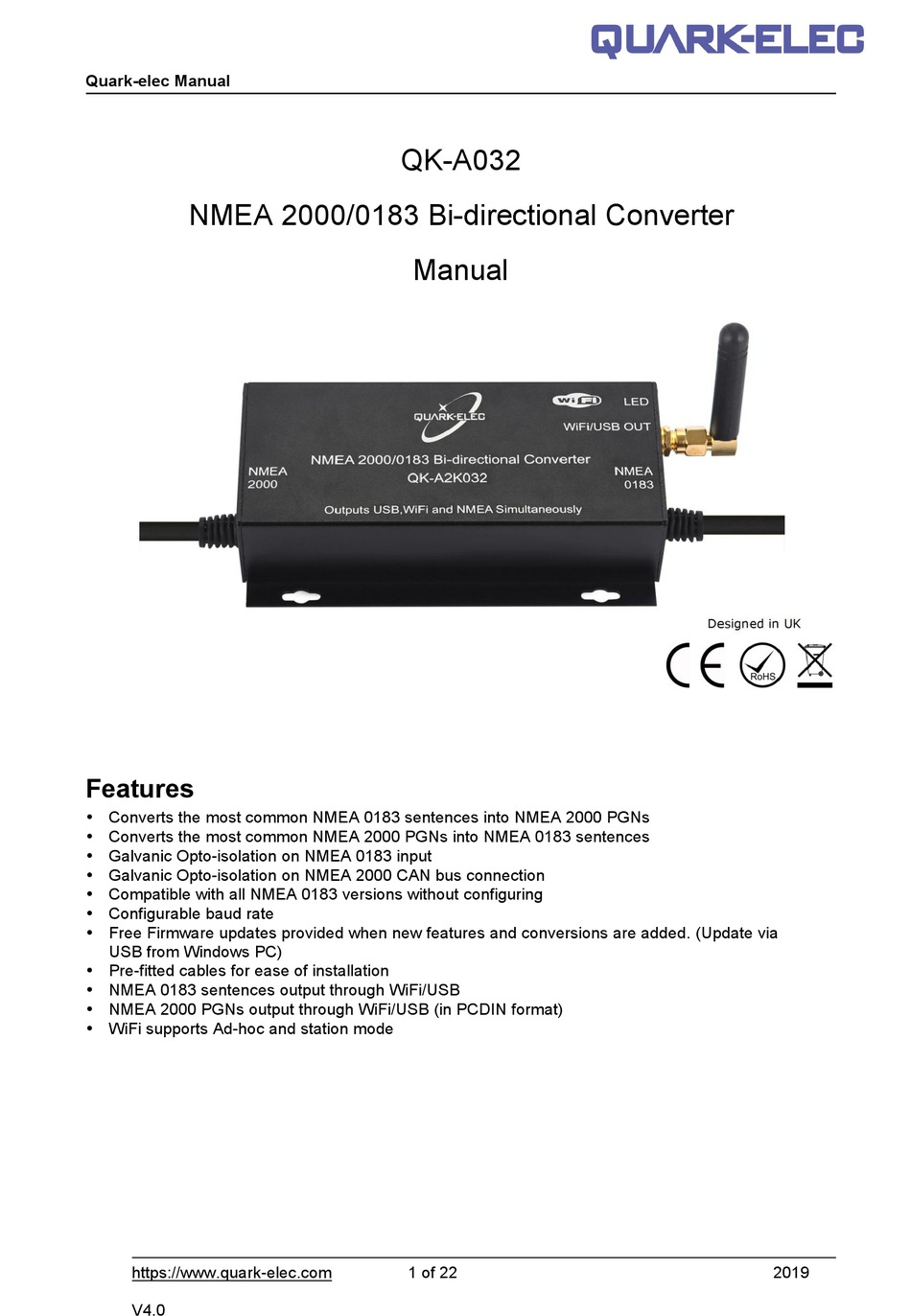

- Page 1 Quark-elec Manual QK-A032 NMEA 2000/0183 Bi-directional Converter Manual Features Converts the most common NMEA 0183 sentences into NMEA 2000 PGNs Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences Galvanic Opto-isolation on NMEA 0183 input ...
-
Page 2: Table Of Contents
Quark-elec Manual Contents 1. Setup Overview..............................3 1.1. Before leaving home:..........................3 1.2. Installation and Setup......................... 3 2. Introduction................................ 5 3. NMEA 2000 and NMEA 0183......................... 5 4. Mounting................................6 5. Connecting.................................7 5.1. Connecting to the NMEA 2000 network..................7 5.2. Connecting to a NMEA 0183 Device....................7 6. -
Page 3: Setup Overview
Accessing data on a Mac/Linux/Windows PC Driver required if using Windows and should install automatically, if not, it is included on the free CD and at Quark-elec.com. Drivers not required for Mac or Linux. 12.0V power from N2K bus... - Page 4 Quark-elec Manual 5. Need to connect wirelessly without a router? On personal device (phone, laptop etc.): 15 seconds after the A032 has powered up, users can scan for a WiFi network with an SSID similar to ‘QK-A032xxxx’. Connect the device to ‘QK- A032xxxx’...
-
Page 5: Introduction

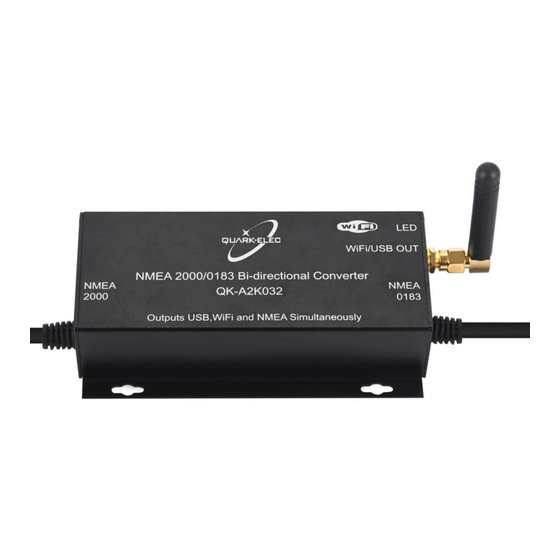

Quark-elec Manual 2. Introduction The A032 is intended for use in a marine environment. It provides an easy way to link between users’ boat’s old and new data networks. The A032 allows the user to connect NMEA 0183 equipment to a NMEA 2000 network and vice versa. -
Page 6: Mounting
Quark-elec Manual 4. Mounting The A032 is aimed at the commercial, leisure, fishing boat and vessel monitoring markets. It is not waterproof so should be mounted in a dry place such as behind the instrument panel on a flat surface. Please allow 0.5m between the A032 and other WiFi devices. This will help avoid interference problems. -
Page 7: Connecting
Quark-elec Manual 5. Connecting Disconnect all power sources before connecting your equipment! 5.1. Connecting to the NMEA 2000 network A032 is pre-fitted with a five-core screened cable for the NMEA 2000 connection, fitted with a male micro-fit connector. Simply connect the cable to the network backbone using a T-piece connector. -
Page 8: Status Led's
Quark-elec Manual 6. Status LED’S A032 features three LEDs which indicate power, NMEA 2000 input and NMEA 0183 input status respectively. Three LEDs turn on and then off after initialization. When operating, these LEDs flash as below: Power: Top LED (red) flashes at 3 second intervals. -
Page 9: Configuration
Quark-elec Manual 7. Configuration The Windows configuration tool can be used to setup the NMEA 0183 baud rate and WiFi settings. The Configuration tool can be found on the free CD and as a download from our website below. https://www.quark-elec.com/product/qk-a032-nmea-2000-0183-bi-directional-gateway/ The configuration tool instructions can be found on the free CD and as a download from our website. -
Page 10: Wireless Connections
Quark-elec Manual 8. Wireless Connections The A032 allows users to view their data through WiFi on a PC, tablet, smartphone or other WiFi enabled device. Users can access marine network data including vessel course, speed, position, wind speed, direction, water depth etc. These can be viewed in the chart software (see chapter chart software The IEEE 802.11b/g wireless standard has two basic modes of operation;... -
Page 11: Wifi Ad-Hoc Mode
Quark-elec Manual 8.1. WiFi Ad-hoc mode ON THE DEVICE (phone, laptop etc.): About 15 seconds after the A032 has powered up, a WiFi network with an (SSID) similar to ‘QK- A032xxxx’ can be found. Connect the device to ‘QK-A032xxxx’ with Device SSID Similar to ‘QK-A032xxxx’... -
Page 12: Wifi Station Mode
This allows the main mobile device to still receive internet and for users to be able to view the data. To begin using station mode the Quark-elec instrument should be attached to a computer running windows (for Mac user’s windows boot camp) via USB. -
Page 13: Connecting Via Usb Port
The driver can be found on the CD in the packing box or be downloaded from https://www.quark-elec.com The drivers usually install automatically to the device if it is running Windows 10 (non-upgraded version). -
Page 14: Chart Software
1. When OpenCPN is first opened, the software will greet users with a page similar to the one below. This is the main view of openCPN software. Users now need to add data to openCPN via the Quark-elec instruments. Click on the 'Options’ tab at the top. The ‘Options’ tab looks like a spanner as seen below in the highlighted image. -
Page 15: Opencpn Example Network Setup (Wifi)
A worldwide directory of free nautical charts can also be found on openseachart.org. The collection and the updates are community driven. Disclaimer: Quark-elec cannot vouch for the quality of any particular maps or chart software. The above is an example only. https://www.quark-elec.com... -
Page 16: Updating/ Upgrading Firmware
Quark-elec Manual 11. Updating/ upgrading Firmware From time to time, Quark-elec updates firmware to support additional NMEA 2000 PGNs and NMEA 0183 messages. Users can update the software on the device to the latest available version. The firmware can be upgraded through the following process. -
Page 17: Conversion Lists
Quark-elec Manual 12. Conversion Lists The following tables list the supported NMEA 2000 PGN’s (parameter group numbers) and NMEA 0183 sentences. It is important to check the table to confirm that the A032 will convert the sentences/PGNs requires. Through USB and WiFi the A032 will output in NMEA 0183 format, including all NMEA 0183 messages received and NMEA 0183 messages converted from the NMEA 2000 network. -
Page 18: A032-S Nmea 2000 To Nmea 0183 Conversions
Quark-elec Manual A032-S NMEA 2000 to NMEA 0183 conversions The following NMEA 2000 to NMEA 0183 conversions are currently available. NMEA 2000 HEX code Function Converted to NMEA 0183 Sentences 126992 1F010 System Time 127245 1F10D Rudder 127250 1F112 Vessel Heading... -
Page 19: A032-Ais Conversion List (All Standard Version Conversions Plus Ais Conversions)
Quark-elec Manual 12.2. A032-AIS Conversion List (all standard version conversions plus AIS conversions) The A032-AIS converts all the messages/PGNs from the A032-standard plus AIS messages. AIS (NMEA 0183) to NMEA 2000 conversion list The following NMEA 0183 to NMEA 2000 conversions are currently available. -
Page 20: Specification
Quark-elec Manual 128275 1F513 Distance Log 129025 1F801 Position, Rapid Update 129026 1F802 COG & SOG, Rapid Update 129029 1F805 GNSS Position Data GGA, GLL, GSA, RMC, ZDA 129033 1F809 Time & Date 129044 1F814 Datum 129283 1F903 Cross Track Error... -
Page 21: Limited Warranty And Notices
Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour. - Page 22 Quark-elec Manual Router: A router is a networking device that forwards data packets between computer networks. Routers perform the traffic directing functions on the Internet. Sentences: Used in NMEA 0183 protocol to transfer data between marine equipment. Station mode WiFi: devices communicate by going through an Access Point (AP) or router. This allows the user to view data while accessing other router functions such as other devices or internet.
