QK-A034

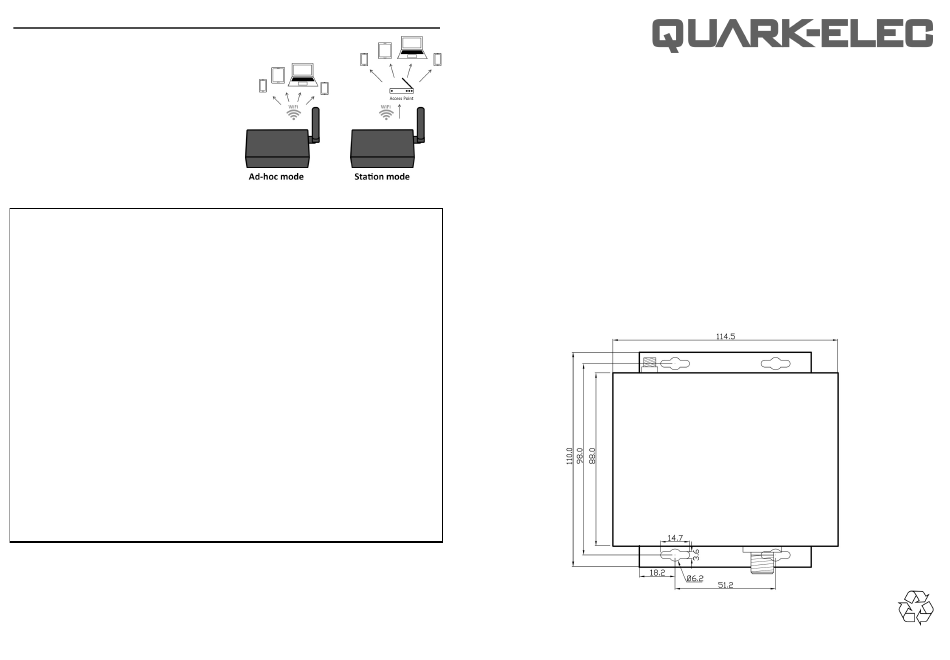

7. WiFi Ad-hoc connection
On your device (phone, laptop etc.):
15 seconds after the A034 has powered up, you
can scan for a WiFi network with an SSID similar to
'QK-A034xxxx'. Connect to 'QK-A034xxxx' with
the default password: '88888888'.
Chart software: in your chart software, set the
protocol to 'TCP', IP address to '192.168.1.100'
and port number to '2000'
For Station mode WiFi setup, use the Configura-
tion software. (see below)
USING THE CONFIGURATION SOFTWARE (WINDOWS):
WiFi can be changed from Ad-hoc (default) to Station mode or Standby.
Station mode is configured by inputting your router/access point's details into the Configuration
software. (once configured, the correct settings must be entered into your chart software.)
Filtering: using the black list function
If desired, selected NMEA sentences can be blocked from chosen input/s, using the 'black list '
field. Remove the '$' or '!' from the 5 digit NMEA talker and sentence identifier and insert sepa-
rated by commas. For example to block '!AIVDM' and '$GPAAM' enter 'AIVDM,GPAAM' .
Up to 8 sentences types can be filtered from each input port. If blacklisting SeaTalk data, block
the corresponding NMEA message (see the manual for a full list of converted messages).
Monitor the data stream Via USB
Operator can use the display tab on the operation tool to monitor all the data send from NMEA
inputs, SeaTalk input to NMEA 2000 network together with all the data were send through NMEA
2000 backbone (PCDIN and NMEA 0183 format)
NMEA Baud rates: Default Baud rates are set to:
•
NMEA IN 1 and 2: 4800bps
•
NMEA IN 3: 38400bps
These can be changed as required.
Disclaimer: This product is designed to aid navigation and should be used to augment normal navigational
procedures and practices. It is the user's responsibility to use this product prudently. Neither Quark-elec, nor
their distributors or dealers accept responsibility or liability either to the product user or their estate for any
accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product.
Email: info@quark-elec.com
V1.0(12/19)
Note: SeaTalk™ is a registered trademark of Raymarine.
QK-A034
NMEA 0183 x3 & SEATALK™ TO 2000 CONVERTER
WITH WIFI/USB OUTPUT
Set-Up guide
Please recycle your packaging
All products are CE, RoHS certified
More information at www.quark-elec.com
