QK-A015-TX Manual
Features
•
12V-24V powered, low power consumption
•
Allows use of a single VHF antenna installation shared between AIS transponder, VHF radio
telephone and FM/AM radio
•
VHF failsafe function - VHF radio has full priority and will remain functional, even in the unlikely
case that the Splitter would fail or lose power
•
Built-in preamplifier provides AIS signal gain (12dB), maximising AIS reception range.
•
Automatic routing of AIS and VHF transmission
•
Uses standard SO239 connector for VHF, AIS and antenna connections
•
LED power and status indicator
•
Compact & easy to install. No configuration required

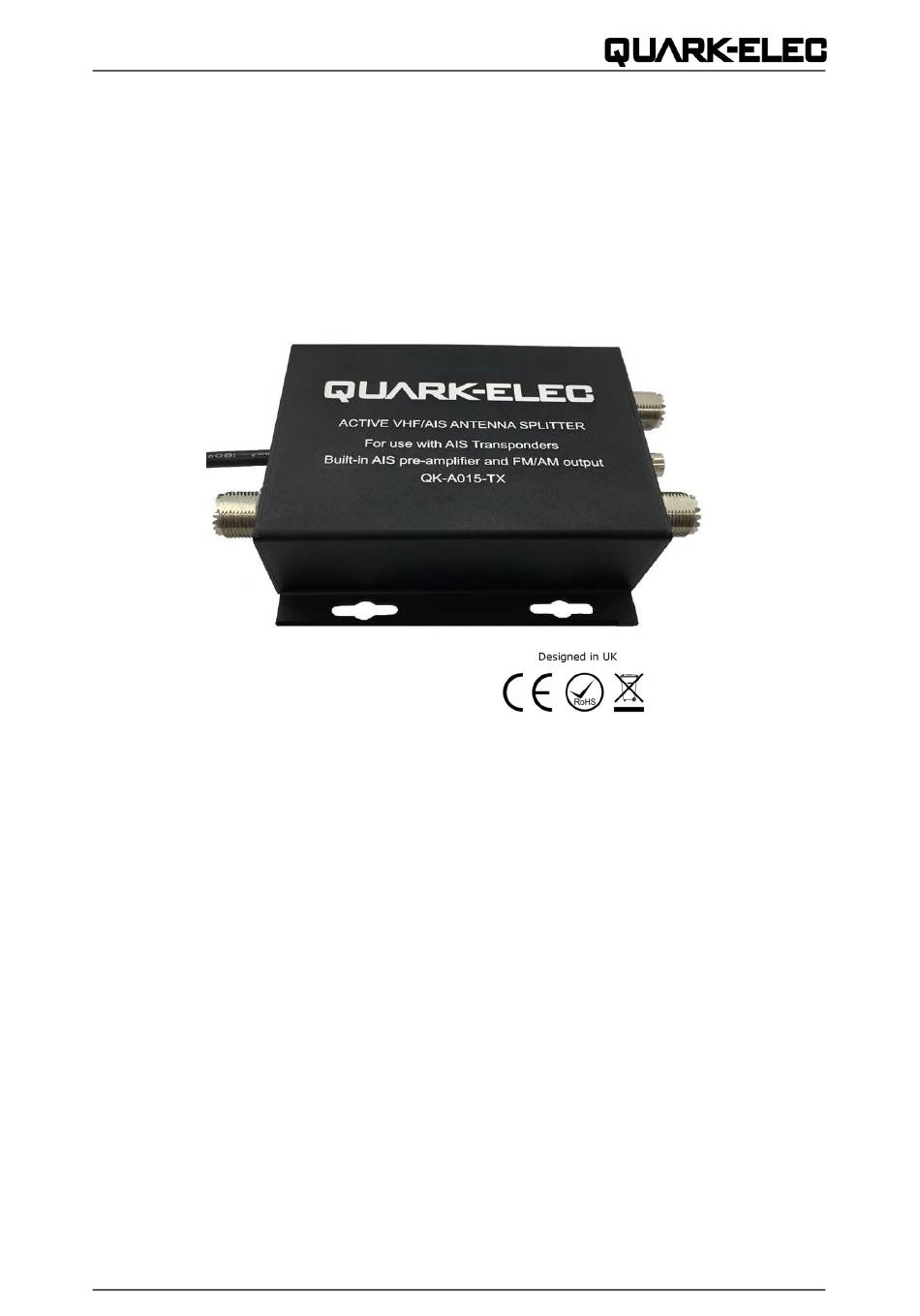

V1
QK-A015-TX

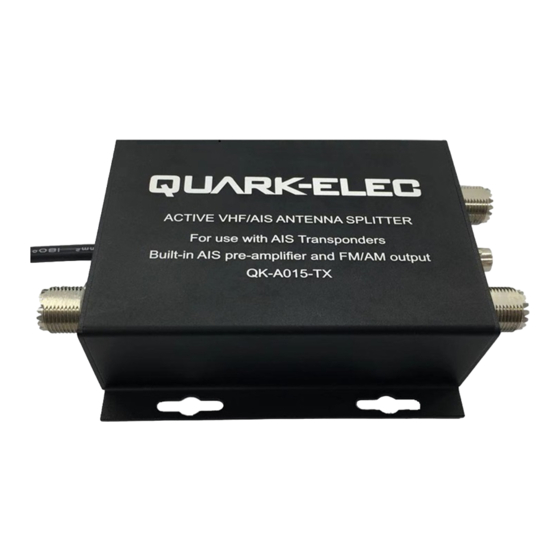

Active VHF/AIS Antenna Splitter
1 of 5
Manual
2020
