PARTS DETAIL

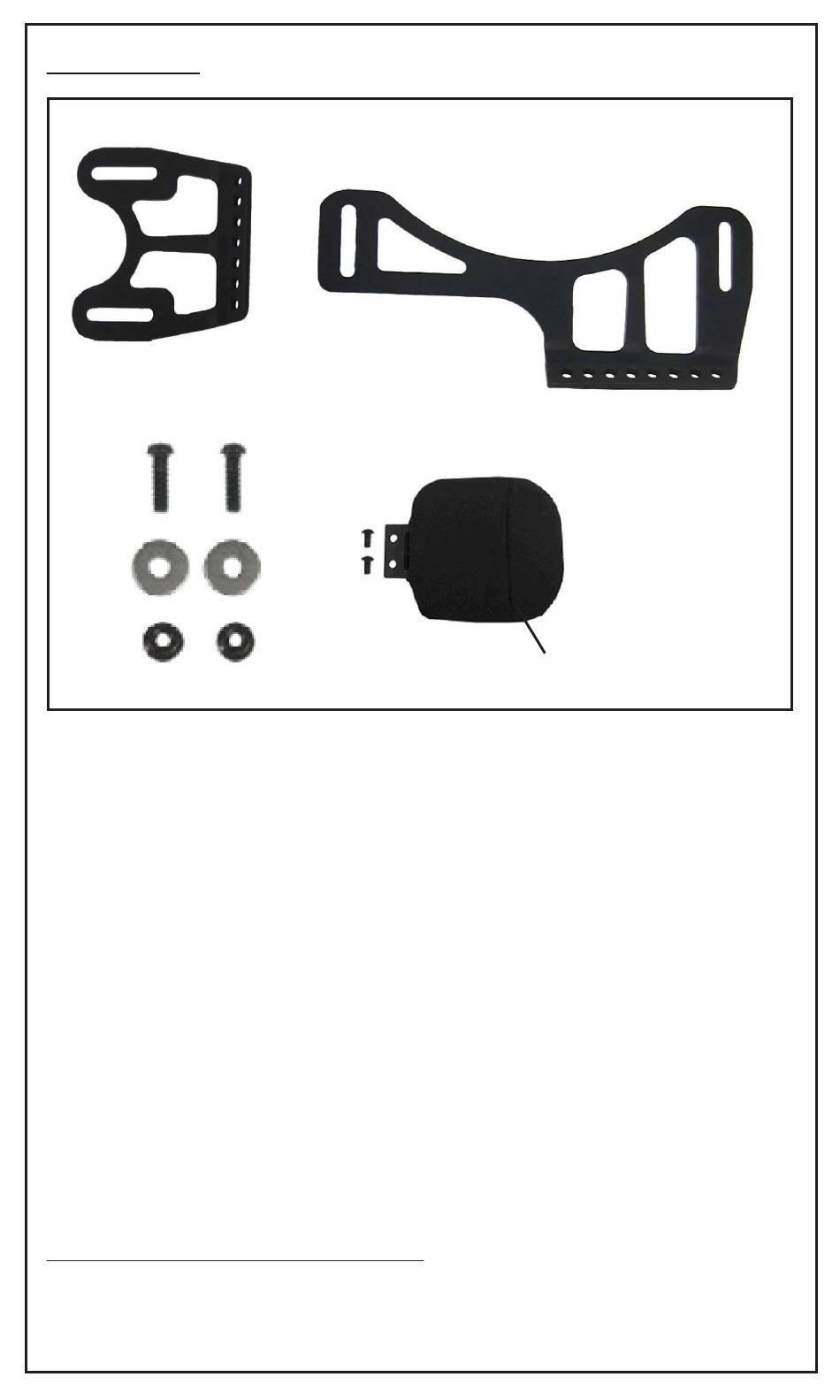

A. Low Bracket
B.
C.
D.
A. Lateral Bracket - Comes in Standard (left or right) and Low
sizes. Attaches Pad to inside of Carbon Fiber Shell.
B. M6 x 20 mm screws - Used to attach Lateral Bracket to carbon
fiber shell. Qty. 2 per Lateral Bracket.
C. Washers - Used to attach Lateral Bracket to carbon fiber shell.
Qty. 2 per Lateral Bracket.
D. Nuts - Used to attach Lateral Bracket to carbon fiber shell.
Qty. 2 per Lateral Bracket.
E. M5 x 10mm screws - Used to attach Pad to Lateral Bracket.
Qty. 2 per Lateral Pad.
F. Pad - Comes in Large (Stationary or Swing Away) and Active
(Stationary only) sizes. Provides positioning and support for user.
G. Cover - Fits over the Pad.
Tools Needed for Assembly (Not Included):
3 mm, 4 mm, & 5 mm Allen wrenches. 10 mm wrench.
A. Standard, Left Lateral
Bracket Shown.
E.
4
F. Large, Stationary
Pad Shown
G.
