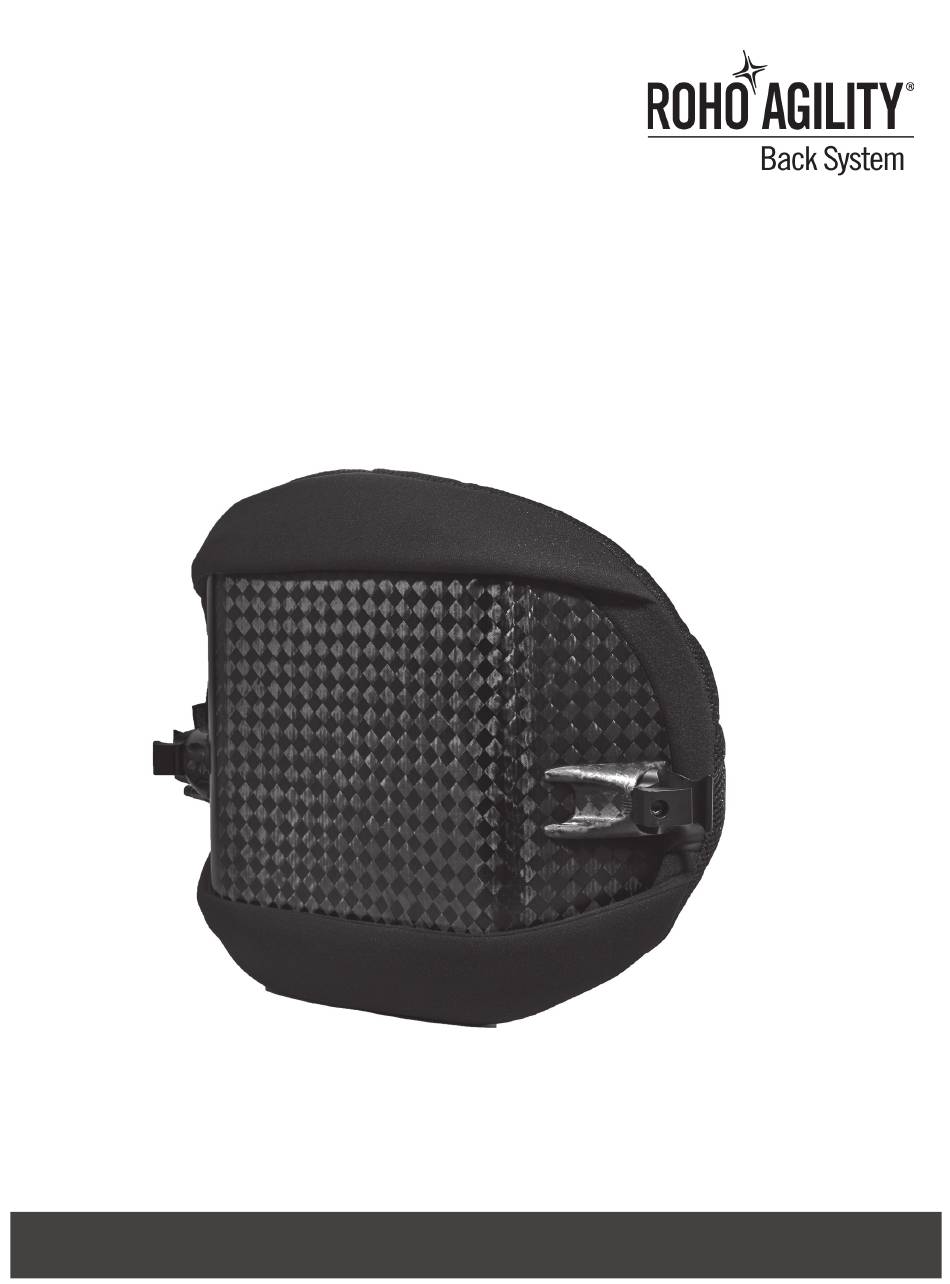

- Page 1 ® ROHO AGILITY CARBON Back System ™ Operation Manual Supplier: This manual must be given to the user of this product. Operator (Individual or Caregiver): Before using this product, read instructions and save for future reference. s h a p e...
-
Page 3: Table Of Contents
Products in this manual may be covered by one or more U.S. and foreign patents and trademarks. For further details, please refer to ROHO.com. ROHO, Inc. has a policy of continual product improvement and reserves the right to amend this document. A current version of this document is available at ROHO.com. -
Page 4: Intended Use
- DO NOT lean over the top of AGILITY CARBON. Doing so may cause a change in the center of gravity, and the wheelchair could tip over. - Check daily to confirm tightness of the screws. Retighten loose screws, following instructions in this manual. Check daily for wear or breakage. - Page 5 Cautions: - AGILITY CARBON is intended to be used with an AGILITY CARBON cover, foam pad, and either the the air insert or the foam insert. The air insert and the foam insert are not intended to be used together.
-
Page 6: Parts Detail
*Size of Air Insert and Foam Insert will vary depending on back shell height. Hand Pump T-Handle Wrench Repair Kit 3/4" Outer Cane Clamp (x2) (4mm) (Select Models Only) To order replacement parts, contact your product provider or ROHO, Inc. or visit therohostore.com. -
Page 7: Product Specifications
0.9 to 1.4 The weight range is based on the smallest and largest sizes: AGILITY CARBON: 14 x 10 x 3 (35.5 x 25.5 x 7.5) and 18 x 16 x 4 (51.0 x 45.5 x 10.0) Adjustable Back Air Insert Width (BW): 3 cells, 6.5 in. -
Page 8: Wheelchair Compatibility
NOT be able to securely install the AGILITY CARBON with the pre-installed hardware. Consult with a clinician or the equipment provider to determine if your wheelchair's back canes are compatible with AGILITY CARBON Hardware. A 3/4" Outer Cane Clamp is available to use with back cane diameters that are 3/4" (2.0 cm). -
Page 9: Angle Adjustment
- DO NOT adjust AGILITY CARBON while the individual is seated in the wheelchair. - Angle adjustments MUST be performed before you install AGILITY CARBON on the wheelchair. If adjustments are needed after installation, the individial must first transfer out of the wheelchair. See a... -
Page 10: Hardware Re-Assembly
AGILITY CARBON Back System Operation Manual Hardware Re-assembly If over-rotation occurs during Angle Adjustment, and the angle adjustment discs in the back shell and inner cane clamp come loose, follow the instructions below. After re-assembly, follow all angle adjustment and installation instructions provided in this manual. -
Page 11: Installation And Height Adjustment
- DO NOT install, remove, or adjust the height of AGILITY CARBON while the individual is seated in the wheelchair. - After you install AGILITY CARBON, and before the individual transfers into the wheelchair, make sure that all hardware is securely tightened. -
Page 12: Agility Carbon Removal
Flip AGILITY CARBON 1. If AGILITY CARBON is already installed, remove the AGILITY CARBON from the wheelchair. See r emoval 2. Rotate the back shell. 3. Adjust and install the AGILITY CARBON following all adjustment and installation instructions provided with the product. -
Page 13: Cover Removal And Installation
- DO NOT remove or install the AGILITY CARBON cover while the individual is in the wheelchair. - DO NOT use the AGILITY CARBON without the cover, the foam pad, and the air insert or foam insert. - Inspect the cover for damage and replace if necessary. -
Page 14: Foam Insert Installation
AGILITY CARBON Back System Operation Manual Foam Pad and Air Insert Removal and Installation Warning: Inspect the foam and air insert for damage and replace if necessary. To Remove the Foam Pad and Air Insert: 1. Detach the cover and foam from the back shell. -
Page 15: Air Insert Adjustment
Then open the inflation valve, roll up the air insert, and then unroll it until the polyurethane is soft and pliable again. Repeat adjustment instructions before using. To Adjust the Air Insert: Before adjusting the air insert, complete installation of the cover and AGILITY CARBON. Close Open 1. -
Page 16: Accessories
AGILITY CARBON Back System Operation Manual Accessories Warning: DO NOT install accessories on an AGILITY CARBON while the individual is in the wheelchair. ROHO AGILITY Lumbar Support Pad The Lumbar Support Pad provides added support to the lumbar region. Package contents include hook and loop fastener strips. The hook side of the fastener strip is pre-attached to the back of the Lumbar Support Pad. -
Page 17: Troubleshooting
Maintenance Warning: DO NOT continue to use an AGILITY CARBON if any part is broken, cannot be tightened, or is not functioning properly. Periodically, the AGILITY CARBON should be thoroughly inspected by a qualified technician. -
Page 18: Cleaning And Disinfecting
- Follow safety guidelines on the chemical containers. Cautions: - DO NOT use abrasives such as steel wool or scouring pads on components of AGILITY CARBON. - DO NOT use cleaning products containing petroleum or organic solvents [i.e. acetone, toluene, Methyl Ethyl Ketone (MEK), naphtha, dry cleaning fluids, adhesive removers] on components of AGILITY CARBON. - Page 20 Item # T20232 Revision: 10/24/16...
