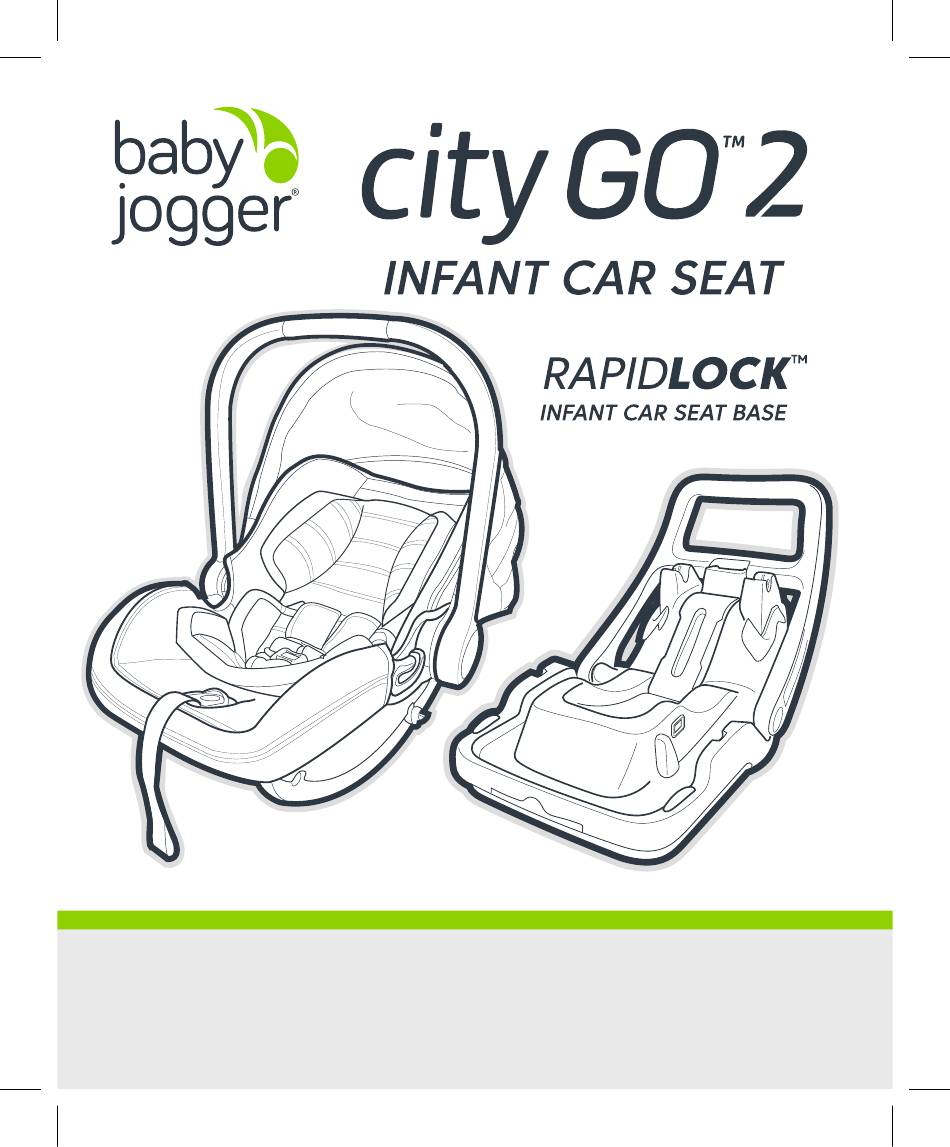

with
©2019 NWL0000911403C 6/19
KEEP INSTRUCTIONS FOR FUTURE USE
Do not install or use this child restraint until you read and understand the
instructions in this manual.
FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS
INJURY OR DEATH IN A SUDDEN STOP OR CRASH.
babyjogger.com
Advertisement
Table of Contents
Related Manuals for Baby Jogger city GO 2 RAPIDLOCK
Summary of Contents for Baby Jogger city GO 2 RAPIDLOCK
- Page 1 with ©2019 NWL0000911403C 6/19 KEEP INSTRUCTIONS FOR FUTURE USE Do not install or use this child restraint until you read and understand the instructions in this manual. FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SUDDEN STOP OR CRASH. babyjogger.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Registration ............................3 Certification ............................4 Warnings ............................. 5 LATCH System ..........................9 Vehicle Installation Safety ....................10 Features • Shell Features ........................14 • Base Features ........................16 Adjusting the Handle ......................17 Attaching the Canopy ......................18 Accessories ............................19 Attaching & Removing Car Seat................20 Adjusting the Recline ......................21 Base Installation •... -
Page 3: Registration
Zip Code Email Address DO NOT USE 7 YEARS AFTER THE MANUFACTURE DATE Baby Jogger, LLC Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, email address if available and the restraint’ s model number and... -
Page 4: Certification
ATV’ s or any other non-certified vehicles. IF YOU NEED ASSISTANCE OR HAVE ANY QUESTIONS If you have any questions regarding installation of your seat, please contact consumer care: Baby Jogger, LLC 4110 Premier Drive High Point, NC 27265 1-800-241-1848 www.babyjogger.com For information regarding child restraints: www.NHTSA.gov... -
Page 5: Warnings
• Children are safer riding rear-facing and should ride rear-facing as long as possible, until they reach the maximum rear-facing height or weight rating for their car seat. Baby Jogger convertible and all-in-one car seats have higher rear-facing limits that will allow children to ride rear-facing longer after outgrowing their infant car seat. - Page 6 • Register your child restraint with the manufacturer. • According to accident statistics, children are safer when properly restrained in rear seating positions, than in the front seating positions. • Owners of vehicles with airbags should refer to their vehicle owner’...
- Page 7 • ALWAYS store the LATCH connectors when they are not being used for installation. • NEVER place two LATCH connectors on one vehicle LATCH anchor. • If installing carrier without base in vehicle, check the red level line on the side of the child restraint to make sure that it is level with the ground.
- Page 8 WARNING FOR USE AS AN INFANT CARRIER • Read all instructions before use of the infant carrier. • Keep instructions for future use. • NEVER LEAVE child unattended. • SUFFOCATION HAZARD: Infant carrier can roll over on soft surfaces and suffocate child. NEVER place carrier on beds, sofas or other soft surfaces.
-
Page 9: Latch System
LATCH SYSTEM LATCH stands for Lower Anchors and Tethers for CHildren. The LATCH system can make installation easier without using the vehicle’ s seat belts. LATCH is a way to secure your child restraint to your vehicle by using the LATCH connectors on your child restraint base. -
Page 10: Vehicle Installation Safety
VEHICLE SEAT LOCATIONS WARNING! • Failure to place the child restraint in the correct seating positions increases the risk of serious injury or death. • DO NOT place rear-facing child seat on front seat with airbag. DEATH or SERIOUS INJURY can occur. •... - Page 11 UNSAFE VEHICLE SEAT BELTS WARNING! The following types of vehicle seat belts are NOT compatible with this child seat. If any of the belt types listed are in the chosen seating position, choose another seating position within in the vehicle. Lap or Shoulder Motorized Shoulder Belt Mounted on...
- Page 12 SAFE VEHICLE SEAT BELTS The following vehicle belt systems are SAFE to use for child restraint installation. 1 Lap belt with locking latch plate - The vehicle belt is tightened by pulling on the free end of the strap until the belt is tight.
- Page 13 SAFE VEHICLE SEAT BELTS 3 Lap/Shoulder belt with locking latch plate - The lap portion of this belt does not loosen once the belt is buckled. The vehicle belt is tightened by pulling up hard on shoulder belt and feeding the webbing into the retractor.
-
Page 14: Shell Features
SHELL FEATURES Handle Chest Clip Buckle Canopy 9 Buckle Strap Cover Head Support Body Support Lap Belt Guide for Harness Adjustment Button Installation Without the Base Harness Adjustment Strap Handle Adjustment Button 6 Harness Cover... - Page 15 SHELL FEATURES 13 Base Release Handle 14 Taxi-safe Belt Guide for Installation Without the Base 15 Head Support Height Adjustment 16 Crotch Strap Clip...
-
Page 16: Base Features
BASE FEATURES Anti-Rebound Bar Instruction Manual Storage 2 RAPIDLOCK™ Lock-Off Release RAPIDLOCK™ Lock-Off Lever 3 Belt Guides Base Recline Lever 4 Level Indicators Base Recline Foot... -
Page 17: Adjusting The Handle
ADJUSTING THE HANDLE There are 4 positions: A - Carry position B/C - Middle positions D - Stationary position In vehicle - any postion. 1 Squeeze handle release buttons on both sides. Rotate the handle. The handle will lock into position. 2 Both adjustment buttons must pop out to lock handle in place. -
Page 18: Attaching The Canopy
ATTACHING THE CANOPY 1 To attach canopy, insert the canopy bow into the canopy mounting brackets on both sides of the seat until it CLICKS into place. Make sure the elastic loop goes around the mounting bracket when inserting the canopy bow. 2 Attach the two fastening strips on the back of the canopy to the shell. -
Page 19: Accessories
ACCESSORIES (ON SELECT MODELS) WARNING: 1 To prevent ejection or serious injury, only use the body support for children under 12 lb (5 kg). For infants weighing under 6 lb (2.7 kg), you must always use the body support. To remove, pull the body support out from behind the harness straps. -
Page 20: Attaching & Removing Car Seat
ATTACHING & REMOVING THE CAR SEAT 1 Attach the carrier into the base until you hear a CLICK. Lift up on the handle of the carrier to make sure that it is securely attached in the base. 2 To remove the seat from the base, pull up the release handle located on the rear of the car seat (A). -
Page 21: Adjusting The Recline
ADJUSTING THE RECLINE The base has 4 recline positions. Squeeze on the base recline lever and lift the base to extend the foot. Squeeze on the base recline lever and lower the base to retract the foot. Check the level indicator for appropriate install. -
Page 22: Base Installation
BASE INSTALLATION - LATCH 1 Before installing base, make sure vehicle is on level ground. 2 Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back. Center the base between the lower LATCH anchors. - Page 23 BASE INSTALLATION - LATCH 4 Swing open the LATCH storage door, and pull out the LATCH connectors. 5 Close the storage door and lay the LATCH strap across the base. Make sure the LATCH strap goes through the notch on top and the strap lays on top of the LATCH storage door.
- Page 24 BASE INSTALLATION - LATCH 7 Check the level indicator on the base. The bubble must be completely within the area of your childs weight. For infants weighing 4-20 lb (2-9 kg) the bubble must rest within the clear area. For children weighing 20-35 lb (9-16 kg) the bubble must rest within the notched area.
- Page 25 BASE INSTALLATION - LATCH 9 Make sure LATCH strap goes under the belt guides. 10 Press down firmly on the top of the base while pulling on the free end of the LATCH strap to remove all of the slack. Do not pull on the strap with excessive force.
- Page 26 BASE INSTALLATION - LATCH 13 Place car seat into the base. Push down on the front of the car seat and handle until you hear a “CLICK”. Test to make sure the car seat is attached by pulling up on the front corners of car seat.
-
Page 27: Lap/Shoulder Belt
BASE INSTALLATION - LAP/SHOULDER BELT 1 Before installing base, make sure vehicle is on level ground. 2 Place the base flat on the vehicle seat. Push it back until the front of the base touches the vehicle seat back. 3 Pull the RAPIDLOCK release lever to open the lock-off. - Page 28 BASE INSTALLATION - LAP/SHOULDER BELT 4 Check the level indicator on the base. The bubble must be completely within the area of your childs weight. For infants weighing 4-20 lb (2-9 kg) the bubble must rest within the clear area. For children weighing 20-35 lb (9-16 kg) the bubble must rest within the notched area.
- Page 29 BASE INSTALLATION - LAP/SHOULDER BELT 6 Press down firmly on the top of the base while pulling on the shoulder belt to remove all the slack. Do not pull on the strap with excessive force. 7 Thread the shoulder portion of the vehicle seat belt through the blue rear- facing belt path (also marked with a blue label) and under the belt guides.
- Page 30 BASE INSTALLATION - LAP/SHOULDER BELT 9 Test for tightness. Grab the sides of the base where the seat belt is and push and pull the base from side to side and front to back. If the base moves less than 1” (2.5 cm), it is tight enough.
-
Page 31: Install Without Base
INSTALL WITHOUT BASE 1 Place the car seat on the vehicle seat. Push it back until the front of the car seat touches the vehicle seat back. Check the rear-facing level line. The red level line on the side of the seat MUST BE LEVEL with the ground. - Page 32 INSTALL WITHOUT BASE 3 If your shoulder belt is long enough, you may route the shoulder belt behind the seat and through the Taxi-safe seat belt guide as shown. 4 Lock the vehicle seat belt. In most vehicles today, slowly pull the shoulder belt all the way out and then let it go back in.
- Page 33 INSTALL WITHOUT BASE 7 Check the rear-facing level line. The red level line on the side of the seat MUST BE LEVEL with the ground. Check the level indicator with child in the child restraint. If needed, rolled towels may be placed under the base, at the vehicle seat crease, until the level line is level with the ground.
-
Page 34: Placing Child In The Carrier
PLACING CHILD IN THE CARRIER WARNING: Improper placement of the harness straps and buckle strap increases the risk of serious injury or death in a sudden stop or vehicle crash. Do not put snowsuits or bulky garments on your child when placing them in the car seat. - Page 35 PLACING CHILD IN THE CARRIER 3 Press on the red button and pull the buckle tongues out and place harness straps off to the side. 4 Place child in the seat. Make sure their back is flat against the car seat back. 5 Place harness straps over child’...
- Page 36 PLACING CHILD IN THE CARRIER 6 Check harness height. Harness straps must be at or just below the child’ s shoulders. 7 Adjust the head support to adjust harness height. Remove child. From the back of the seat, squeeze the head support adjustment buttons and move it up or down to the correct harness position.
-
Page 37: Adjusting The Buckle
ADJUSTING THE BUCKLE STRAP 1 Turn the child restraint over and push the belts out of the way. Push the metal retainer through the slot and from the front pull the buckle strap out of the seat. 2 Push the metal retainer through the slot that fits closest to your child without being underneath the child. -
Page 38: Securing The Child In The Restraint
SECURING THE CHILD IN THE RESTRAINT 1 Place your child in the seat and place the harness straps over their shoulders. 2 Insert the buckle tongues into the buckle as shown. Make sure you hear them CLICK into place. No te: DO NOT use child restraint if buckle tongues do not CLICK into the buckle. - Page 39 SECURING THE CHILD IN THE RESTRAINT 4 Pull all of the slack out from around the waist. Pull up on the harness while pushing the chest clip down. Do this on both sides. 5 Slowly pull harness adjuster strap to make the shoulder straps snug around the child’...
-
Page 40: Latch Storage
LATCH STORAGE 1 Pull the RAPIDLOCK release lever and raise the lock-off to expose the LATCH storage door. - Page 41 LATCH STORAGE 2 Swing open the LATCH storage door, and insert the LATCH connectors into the storage slots. Tuck the LATCH straps into the storage compartment and close the storage door. Make sure the LATCH connectors are stored facing the correct direction. 3 Close the RAPIDLOCK lock-off until you hear a “CLICK”.
-
Page 42: Remove Head Support, Seat Pad & Canopy
TO REMOVE HEAD SUPPORT PAD 1 Unfasten snaps on both sides of head support pad. Pull out from around harness straps and pull pad away from head support. Reverse the steps to reattach the head support pad to the head support. - Page 43 TO REMOVE SEAT PAD 4 Pull pad off shell. Reverse the steps to reattach the pad to the shell. Make sure harness straps are not twisted. TO REMOVE CANOPY 5 Undo the two fastening strips on the back of the canopy. 6 Undo the snaps on the sides of the canopy from the seat pad.
- Page 44 CARE AND MAINTENANCE Cleaning the Seat Pad: Refer to the care tag on your seat pad for washing instructions. NEVER use carrier without the seat pad attached. Cleaning the Shell: Spot clean using warm water and mild soap. Do not use any other cleaning agents or bleach.
-
Page 45: Care And Maintenance
CARE AND MAINTENANCE Cleaning the Buckle: Remove buckle to clean. From the bottom of car seat, insert the buckle’ s metal clip up through shell and pad. From the front, pull buckle out of the pad and shell. To clean, place in a cup of warm water and gently agitate the buckle. -
Page 46: Warranty
Attorney General. Note: When contacting Baby Jogger regarding your product, please have the serial number and manufacturing date ready. It can be found on the underside of the car seat and inside of the base. -
Page 47: Instruction Storage
INSTRUCTION STORAGE Store instruction manual in the slot on the rear of the base where the instruction book icon is shown. - Page 48 Baby Jogger, LLC 6655 Peachtree-Dunwoody Rd. NE, Atlanta, GA 30328 1.800.241.1848 • www.babyjogger.com...
