A UNIT OF APPLIED POWER INC.
L-2080
Rev. A
IMPORTANT RECEIVING INSTRUCTIONS
CONTENTS
DESCRIPTION
SAFETY INFORMATION
®
04/98
Visually inspect all components for shipping damage. If any shipping damage is found,
notify carrier at once. Shipping damage is NOT covered by warranty. The carrier is
responsible for all repair or replacement cost resulting from damage in shipment.
ENGLISH . . . . . 1-6
DEUTSCH. . . . . 7-12

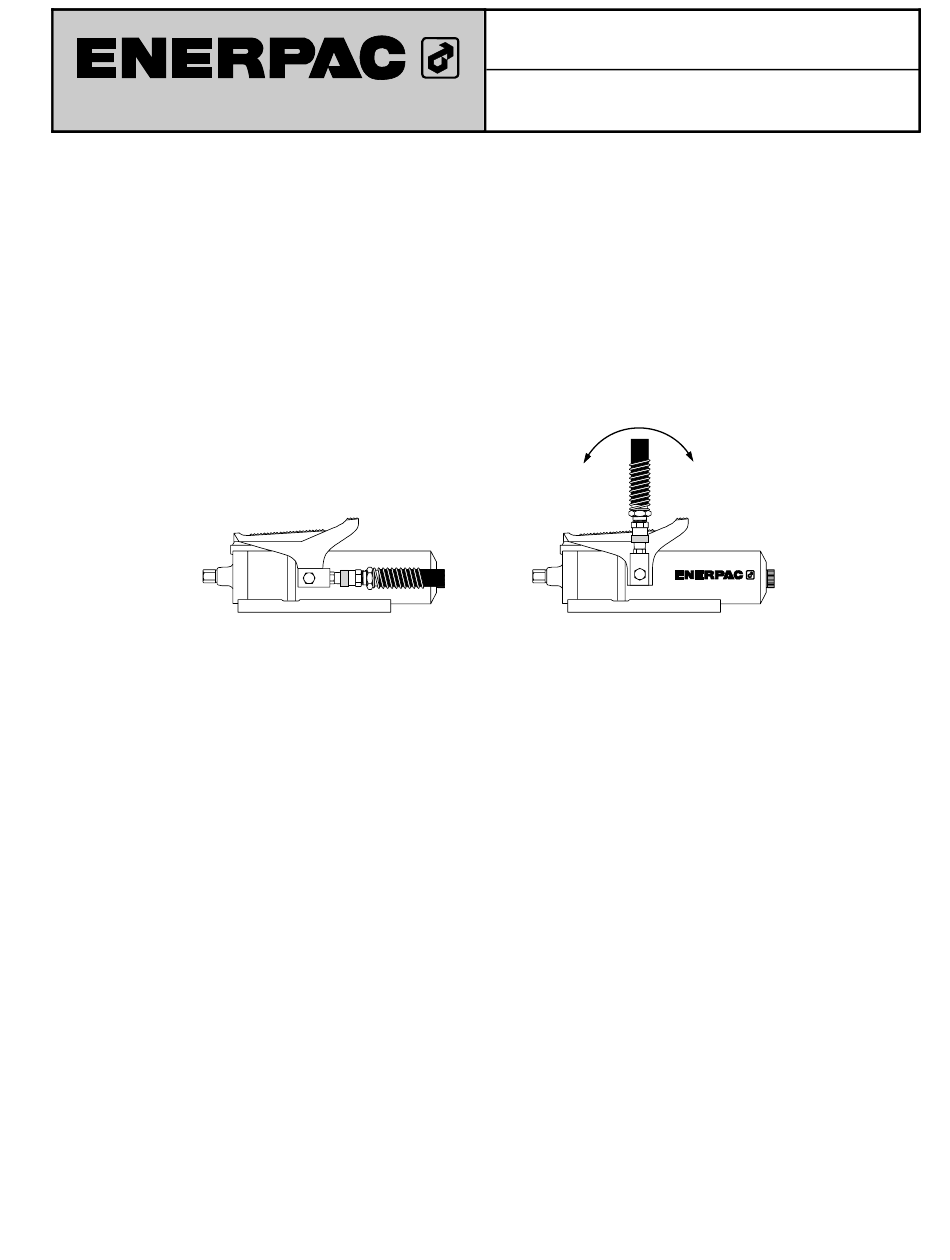

These air-powered hydraulic pumps are designed for use with single-acting cylinders and
tools. The pump treadle may be operated by hand or foot for greater versatility. Swivel
connection simplifies hydraulic connection and pump operation.
®
To avoid personal injury or property damage during system operation, read and follow
all
,
CAUTIONS
WARNINGS
ENERPAC CANNOT BE RESPONSIBLE FOR DAMAGE OR INJURY RESULTING FROM UNSAFE
USE OF PRODUCT, LACK OF MAINTENANCE, OR INCORRECT PRODUCT AND SYSTEM
. Contact Enerpac when in doubt as to safety precautions or applications.
APPLICATION
WARNING
Always wear proper personal protective gear when operating hydraulic equipment
(i.e. safety glasses, gloves, etc.).
WARNING
The system operating pressure must not exceed the pressure rating of the lowest
rated component in the system.
WARNING
Make sure that all system components are protected from external sources of
damage, such as excessive heat, flame, moving machine parts, sharp edges, and
corrosive chemicals.
WARNING
Disconnect air supply when pump is not in use. NEVER remove swivel air
connector while air line is pressurized.
WARNING
The pump is equipped with an overload valve, preset for maximum operating
pressure. DO NOT attempt to adjust the overload valve. If adjustment is required,
contact an Enerpac Service Center. Adjustment by other than qualified personnel
may cause malfunction, damage to the system, and/or personal injury.
Instruction Sheet
Foot-Operated
Air-Powered Hydraulic Pumps
FRANCAIS. . . . 13-18
ESPAÑOL . . . . 19-24
, and
, included with or attached to each product.
INSTRUCTIONS
ITALIANO . . . . . . 25-30
NEDERLANDS . . 31-36
®
Advertisement
Related Manuals for Enerpac PA-133, 7001
Summary of Contents for Enerpac PA-133, 7001
- Page 1 INSTRUCTIONS ENERPAC CANNOT BE RESPONSIBLE FOR DAMAGE OR INJURY RESULTING FROM UNSAFE USE OF PRODUCT, LACK OF MAINTENANCE, OR INCORRECT PRODUCT AND SYSTEM . Contact Enerpac when in doubt as to safety precautions or applications. APPLICATION WARNING Always wear proper personal protective gear when operating hydraulic equipment (i.e.
- Page 2 Figure 2 Figure 1 2. Fill to " [1 cm] below the fill opening with Enerpac hydraulic oil. Use of fluids other than Enerpac hydraulic oil may cause damage and will void your warranty. WARNING Attempting to overfill the reservoir will cause the reservoir to become pressurized.
- Page 3 Figure 5 the connection. 2. Tighten pipe connections securely, but DO NOT OVER-TIGHTEN. NOTE: To promote long, trouble free pump operation, install an Enerpac air filter regulator in the air line. Adjust Hydraulic Pressure The hydraulic pressure output of your air pump is controlled by the air pressure into the pump.
- Page 4 If pump does not operate properly, it may have lost its prime. Follow the procedure below to prime your pump, if necessary. 1. Fill pump with Enerpac hydraulic oil, if necessary. See filling instructions on page 2. 2. Place pump on horizontal surface.
- Page 5 " [1 cm] below the fill opening with clean Enerpac hydraulic oil. Dispose of used oil in accordance with local regulations. WARNING The pump is equipped with an overload valve, preset for maximum operating pressure.
-
Page 6: Troubleshooting
TROUBLESHOOTING The following information is intended as an aid in determining if a problem exists. DO NOT disassemble the pump. For repair service, contact the Authorized Enerpac Service Center in your area. Problem Possible Cause Solution Pump fails to deliver oil.
