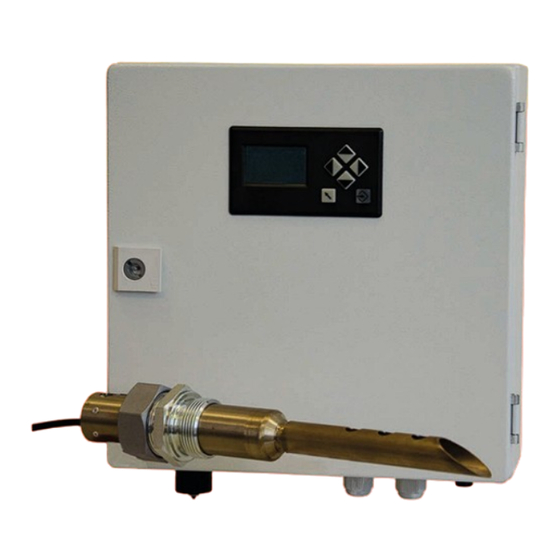

- Page 1 Quick Reference for End Users Lambda Transmitter LT3 Combination Probe KS1D Sensors and Systems for Combustion Engineering www.lamtec.de...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Important Information about the Manual ........4 Validity of these Instructions. - Page 4 Table of Contents 5.2.2 Filter Time ........... . . 45 5.2.3 Analogue Outputs .
-
Page 5: Important Information About The Manual
Important Information about the Manual Validity of these Instructions This manual describe the Lambda Transmitter LT3 with all required components. The infor- mation in this document applies to the software version V0.106. If you utilise a different ver- sion, this can lead to other effects to your device than those described in this manual. -
Page 6: Information On Using This Operating Manual
Important Information about the Manual Information on Using this Operating Manual NOTICE Before starting work, you absolutely must read these instructions! Carefully observe all warning notes! They contain important data and information, the compliance with which will ensure the func- tion of the device and, in turn, reliable measurement results. -
Page 7: General Safety Instructions
General Safety Instructions General Safety Instructions Classification of the Safety Instructions and Warnings The following symbols are used in this document to draw the user's attention to important safe- ty information. They are located at points where the information is required. It is essential that the safety information is observed and followed, and that applies particularly to the warnings. -
Page 8: Proper Use - Conditions Of Use
General Safety Instructions Proper Use - Conditions of Use Operation The LT3 Lambda Transmitter is an electronic data interpreting device which is used in con- junction with the KS1D Combination Probe for the continuous measurement of the O concen- tration and the oxidising components (CO/H ) in non-combustible gases in the superstoichiometric area. -
Page 9: Permissible Users
User groups For the handling of the Lambda Transmitter LT3, three user groups are required: • Service technicians of LAMTEC or its OEM customers and/or trained customer personnel: Qualified technicians/engineers ... -
Page 10: Safety Equipment/Safety Measures
To avoid damage, always observe the respective security notices. Preventive measures for improving operating safety If the LT3 is used in conjunction with control and steering technology, the operator must ensure that any breakdown or failure of the LT3 device does not cause inadmissible damage or dan- gerous operating states. - Page 11 NOTICE Do not switch off the Lambda Transmitter LT3 as long as the KS1D Combination Probe is mounted. Not even if the associated plant has been brought to a standstill. Residual gases will cause corrosion and could damage the probe.
-
Page 12: Product Description
Product Description Product Description Designs and Accessories of the KS1D Combination Probe The KS1D Combination Probe permits a simultaneous measurement of the O concentration and combustible, oxidising gas components (CO/H ) displayed as CO equivalent (CO ), in the flue gases from combustion systems in the superstoichiometric area (>1) in situ (directly in the flue gas). - Page 13 Product Description Fig. 3-4 KS1D Combination Probe for manual cleaning KS1D-HT Combination Probe High dust reception flange with pneumatic fittings...
-
Page 14: C: Declaration Of Conformity
Product Description C: Declaration of Conformity... - Page 15 Product Description...
-
Page 16: Display And Operational Controls
Display and Operational Controls Display and Operational Controls To display and operate LT3, the user interface is integrated into the front door of LT3 (included in the standard). Functions: • Reading of the O and CO measured values • Password entry Information ... -
Page 17: Operation
Display and Operational Controls Operation Using the arrow keys you can navigate within the menus. In the process, move the keys to the right or left by one to make a selection. ENTER ENTER takes you to menu entries or to the edit mode in the case of selected pa- rameters or values. -
Page 18: Information Menu Structure
Display and Operational Controls 4.2.2 Information Menu Structure 4.2.3 Calibration Menu Structure... -
Page 19: Settings Menu Structure
Display and Operational Controls 4.2.4 Settings Menu Structure... -
Page 20: Status Line
Display and Operational Controls Status Line The status line contains information about LT3, including the device family. Fig. 4-3 UI300 front view status line 1. Status line Description status line: Active fault/warning Operating mode OK Heat-up (cold start) Status of limit values 1-4... -
Page 21: Main Menu
Display and Operational Controls Main Menu Main display Main menu The following values are displayed: • value, resolution 0.1% • value (recommended 1,000 ppm), resolution 1 ppm • Probe signal dynamics • CO edge signal reached/exceeded NOTICE In case of overflow/underflow of the measuring range, the corresponding measured values flash Press ENTER to access the main menu. -
Page 22: Main Menu - Password Entry
Display and Operational Controls 4.4.1 Main Menu - Password Entry... -
Page 23: Main Menu - Information
Display and Operational Controls 4.4.2 Main Menu - Information Meaning of the symbols: Measured values and probe data Fault/warning history Software version of LT3 and display CRC checksums Serial number Manual reset of the limit values if they are set to manual reset... -
Page 24: Main Menu - Calibration
Display and Operational Controls 4.4.3 Main Menu - Calibration Meaning of the symbols: Required access level Offset of calibration to 21% O (air calibra- Without tion) calibration At least 1 (Customer) or higher calibration At least 1 (Customer) or higher Fuel changeover At least 1 (Customer) or higher... -
Page 25: Main Menu - Settings
Display and Operational Controls 4.4.4 Main Menu - Settings Meaning of the symbols: Required access level Maintenance mode Without Filter time of the measured values Without Analogue outputs At least 1 (Customer) or higher Triggering of probe replacement At least 1 (Customer) or higher CO trigger threshold At least 2 (Service) Display parameters... -
Page 26: Lsb Remote Software (Optional)
Full access to the parameter level, password-protected • Reading, writing, and comparison of data records • Including connecting cable for USB/CAN module – LT3, length of 4 m. For connection to the existing 5-pole M12 socket • Including USB/CAN module type 657R9000 •... -
Page 27: External Operation Via Programming Unit (Optional)
Display and Operational Controls External Operation via Programming Unit (optional) • Operation and Parameter Settings • Full access by password to the parameter level • Read and write datasets • Including connecting cable, length 4 m, to connect to the existing 5 pole M12 socket. •... -
Page 28: Maintenance
Maintenance Maintenance As a result of extensive self-diagnosis, the measuring system is essentially maintenance-free. Maintenance is restricted to the calibration and the cleaning of dust or other deposits; as well as the cyclic replacement of the ZrO measuring element. Checking/Calibrating the KS1D Combination Probe The checking / calibration should (advantageously installed) be built in at normal operating temperature and carried out under operating conditions. -
Page 29: Reading The Measured Values
Maintenance 5.1.4 Reading the Measured Values In the main menu, select the INFORMATION menu with In the INFORMATION menu, select meas- ured values and probe data with In MEASURED VALUES and PROBE DATA, select: Display of the O measured values Display of the CO measured values Display of the R... - Page 30 Maintenance The R internal probe resistance values lie between 15 ... 25 . Display of whether the internal probe resistance regulation is active! Display of the current heating capacity S Display of the setpoint value for the internal resistance regulation. -CO: Evaluates the cross-talk response between the O2 and CO electrodes.
-
Page 31: Enter The Password For The Access Level
Maintenance 5.1.5 Enter the Password for the Access Level In the main "Password Entry" menu, select Enter password via ENTER Access level 1: Customer Level Factory setting: 0000 – access to customer functions only Customers can change the password for access level 1. For details ask the burner manufacturer/supplier Access level 2: Service level... -
Page 32: Activate/Deactivate Maintenance Mode
Menu 460 ACTIVATE/DEACTIVATE MAIN- TENANCE MODE is opened. Select with the key and ENTER activate/deactivate the maintenance mode. Activate maintenance mode Deactivate maintenance mode If both parameters (LT3 and UI300) are equal confirm the procedure with ENTER Note the time limit: 8 s... -
Page 33: Response Of The Internal Resistance Regulation
Maintenance Wait for transmission end indication. Return to the SETTINGS menu with the BACK and repeat the procedure. In case of cancelling or timeout, this display appears. Return to the SETTINGS menu with the BACK • The symbol appears in the status line. 5.1.7 Response of the Internal Resistance Regulation The internal ceramic resistance between the reference and O... -
Page 34: Premature Cold Start Termination
Maintenance 5.1.8 Premature Cold Start Termination Occasionally, it might be necessary to terminate the COLD START prematurely, e.g., after a short-term power failure, but not before a minimum waiting period of 120 seconds has expired. NOTICE A premature cold start termination leads directly into measurement operation without an additional prompt. -
Page 35: Calibrating The Probe
Maintenance 5.1.9 Calibrating the Probe It is recommended to activate MAINTENANCE mode before every running a calibration, see chapter 5.1.6 Activate/deactivate Maintenance Mode . This disables probe failures and error conditions. After successful calibration MAINTENANVCE mode must be deactivated again. A correct and regular probe calibration increases measuring precision. -
Page 36: 5.1.9.1 Offset Calibration Perform To 21 % O2
Maintenance 5.1.9.1 Offset Calibration perform to 21 % O2 value is equivalent to 20 (see menu 211 and Before offset calibration, check whether Rki O 213 in chapter 5.1.4 Reading the Measured Values). Otherwise, proceed as described in chapter 5.1.7 Response of the Internal Resistance Reg- ulation. - Page 37 Maintenance Selecting with the cursor key ENTER triggers an offset calibration. Within 10 s, confirm the setting with ENTER otherwise the value is not assumed. The U-O value stabilises to values between +10 ... -20 mV. The R internal probe resistance values lie between 15 ...
-
Page 38: Calibrating The O 2 Electrode In The Operating Point
Maintenance 5.1.9.2 Calibrating the O Electrode in the Operating Point • Activate Maintenance mode. NOTICE Access level 1 or 2 required! NOTICE A correct calibration of the O electrode with reference measurement works in the CO con- tent flue gas as well. (from software version V0.106) The calibration can be performed by reference measurement using an external measuring de- vice or by using test gas at a known O concentration. - Page 39 Maintenance In Probe Calibration, select for O cali- bration. With change the O val- ues of the probe. Within 5 s, confirm the calibration with otherwise the calibration is not assumed. • Deactivate MAINTENANCE MODE.
-
Page 40: Perform A Calibration Of The Co/H Electrode
Maintenance 5.1.9.3 Perform a Calibration of the CO/H Electrode • Activate maintenance mode. NOTICE Access level 1 or 2 required! The calibration can be performed by reference measurement using an external measuring de- vice or using test gas in combination with a testing device (type 650R1015) of test gas at a known CO concentration. -
Page 41: Checking/Calibrating With Test Gas
Maintenance 5.1.10 Checking/Calibrating with Test Gas WARNING! Danger of burns! Probe becomes hot during operation. If the probe is operated when removed, there is a danger of burns on the probe housing. Never lay the probe on flammable material and heat it up. ... - Page 42 Maintenance Fig. 5-2 Testing device laying on the table Probe LS2, KS1, KS1D in Standard housing Hose Particle filter Test gas connection Plug in nozzle for flue gas channel Test gas outlet Hose Fig. 5-3 Testing device plugged into flue gas channel...
- Page 43 Maintenance Recommendation: To check the O electrode, use a test gas with 3 vol. % O in N NOTICE It is not possible to calibrate the CO/H electrode using hydrogen free test gas containing CO. Recommendation: To check the CO/H , use a test gas with 100 ppm H , 200 ppm CO, and 3 % O in N...
- Page 44 Maintenance Testing/ Description calibration 1 Offset Offset testing/calibration Compare oxygen values of probe and test gas A. Should the deviation of oxygen value be less than or equal to 0.2 vol.% of 21 vol.% (as shown in parameter 15, internal value O ), the probe is fine.
-
Page 45: Checking/Calibrating With Reference Measurement
Maintenance Table 5:Test gas composition Composition Test gas [Vol.%] [ppm] [Vol.%] Rest Rest Rest CO Equivalent CO is the sum of all components in the exhaust gas. In test gases, it is represented by CO and H in pro- portion of 2:1, e.g. 300 ppm CO = 200 ppm CO +100 ppm H In the test gas device, the probe can be calibrated/tested with oil-free pressure air or synthetic air from test gas bottle. -
Page 46: Simple Function Test Of The Co/H Electrode
Maintenance 5.1.12 Simple Function Test of the CO/H Electrode WARNING! Danger of burns! Probe becomes hot during operation. If the probe is operated when removed, there is a danger of burns on the probe housing. Never lay the probe on flammable material and heat it up. ... -
Page 47: Settings
Maintenance Settings According to which access level you are located, you can make various settings. In access level 2 (Service), all settings can be made. In the MAIN MENU, select to make set- tings. SETTINGS, offers the following setting pos- sibilities: Maintenance mode (Level 0);... -
Page 48: Analogue Outputs
Maintenance 5.2.3 Analogue Outputs In "SETTINGS", select for analogue outputs (see Chapter 8.1.3 Conversion of the Output Range via the User Interface). 5.2.4 Replacing a Probe Probe replacement: A minimum of access level 1 is required for triggering. (See Chapter 5.2.4 Replacing a Probe.) 5.2.5 Display Display (no access level is required):... - Page 49 Maintenance Control of the entry with the following key sequence: Limit value off Monitoring of exceeding Monitoring of undershooting Setting of limit value Setting of trigger time of limit value NO - limit value resets automatically YES - manual acknowledgement of limit value required (see Chapter 4.4.2 Main Menu - Information If a limit value is undershot/exceeded, this is indicated in the status line by a down/up arrow (see Chapter 4.3 Status Line).
-
Page 50: Correcting Faults
Faults and warnings can be indicated by an optional digital output module. Fault Warning Main processor Fault number Fault probe/probe voltage trigger 1 NOTICE With internal or not assignable faults, read data set with LSB Remote Software and send it to LAMTEC for analysis! -
Page 51: Faults
The heater is short-circuited or has a high resistance; tolerance time of 10 seconds Help: - Check the wiring. LT3 Term. 13 and 14 disconnect the probe - probe heating at LT3-Ex or in SAK and measure the heater resistance between wire nos. 13 and 14 on the probe side. - Page 52 105 (ÜP) -CO too high. Internal resistance of ceramics of CO for LT3-F over 50 , and/or for LT3 over 100 , tolerance time of 30 seconds. -CO too low. Internal resistance of ceramics of O2 under 10 , toler-...
- Page 53 Correcting Faults Help: -CO for LT3-F over 50 , and/or for LT3 over 100 , then If R - Probe too cold. - Internal resistance regulation not active or incorrect setpoint value. - The probe is stuck in a cold spot and the heating capacity does not suffice.
-
Page 54: Warnings
Trigger value of current internal resistance (x0.1 ), /0 - 65535 tolerance time of 3 seconds. 011 (HP) For LT3-F: Internal resistance of ceramics of the CO electrode over 45 Ω 111(ÜP) For LT3: Internal resistance of ceramics of the CO electrode over 80 Ω... - Page 55 Correcting Faults Warning no. Warning text Serial number, customer ID or service password reset. Contact the manufacturer. Display if customer ID in LT3 and UI do not correspond.
-
Page 56: Call Of The Fault History
Correcting Faults 6.1.3 Call of the Fault History In the main menu, select for informa- tion. In "Information," select for the fault his- tory. Fault history Number of the entry 001 Fault number of the main processor If the fault number is displayed as "101" (+100), there is a fault in the monitoring processor. -
Page 57: Decommissioning
NOTICE Do not switch off the LT3 Lambda Transmitter as long as the KS1D Combination Probe is mounted. Not even if the associated plant has been brought to a standstill. Residual gases will cause corrosion and could damage system components. -
Page 58: Options
Options Options Analogue Outputs via LSB Module Current, alternative Voltage, LSB address 19 8.1.1 Functional Description • Current module: 4 analogue outputs 0/4 ... 20 mA • Voltage module: 4 analogue outputs 0/2 ... 10 VDC • Possible to quickly wire several modules by means of strapping plugs The LSB modules are universally applicable output modules, which are controlled via the LSB SYSTEM BUS. -
Page 59: Factory Setting Of Analogue Outputs Via Lsb Module
4+ / 4- Analogue output 4 24 VDC Voltage supply for LT3 Terminals 77-/78+ CAN H/L LAMTEC SYSTEM BUS for LT3 Terminals 74 H/75 L 8.1.2 Factory Setting of Analogue Outputs via LSB Module The module is activated at the factory. -
Page 60: Conversion Of The Output Range Via The User Interface
Options 8.1.3 Conversion of the Output Range via the User Interface Access level 1 required. In the main menu, select to make set- tings. In "SETTINGS", select for analogue out- puts. Analogue outputs offer setting possibilities current range or voltage range. Output range. -
Page 61: Digital Outputs Via Lsb Module, Lsb Address 03 And 51
Relay output 3 Rotary switch for setting the 43/44 Relay output 4 tens LSB address 24 VDC Voltage supply for LT3 Termi- Rotary switch for setting the ones nals 77-/78+ LSB address CAN H/L LAMTEC SYSTEM BUS for LT3 Jumper plug... -
Page 62: Factory Setting Of The Digital Outputs
Options 8.2.2 Factory Setting of the Digital Outputs The LSB module for digital outputs 1 ... 4 is activated at the factory. In case of a later installa- tion or exchange, the LSB address 03 must be set on the module using only 2 rotary switches. Digital output 1 Locked faults Term. -
Page 63: Settings
Options 8.2.3 Settings Only in access level 2 (Service) In the MAIN MENU, select to make set- tings. In SETTINGS select for digital outputs. In DIGITAL OUTPUTS select 1, 2, 3, or 4 to allocate the desired trigger to the respective digital output. -
Page 64: Diagnosis Of The Digital Outputs
Options 8.2.4 Diagnosis of the Digital Outputs 4 LEDs above the switches indicate the switching state of the digital outputs. NOTICE Manual activation of the relay outputs: Position 1output contact always closed Position Aoutput contact switches via LSB Position 0 output contact always open... -
Page 65: Digital Inputs Via The Lsb Module, Lsb Address 11 And 55
Digital input 4 Rotary switch for setting the tens 24 VDC Power supply LSB address for LT3 Terminals 77-/78+ CAN H/L Rotary switch for setting the ones LAMTEC SYSTEM BUS LSB address for LT3 Terminals 74 H/75 L Jumper plug Manual activation... -
Page 66: Factory Settings Of The Digital Inputs
Options 8.3.2 Factory Settings of the Digital Inputs Digital input 1 Trigger OFFSET CALIBRATION Digital input 2 RESET FAULT Digital input 3 SWITCHOVER to CO curve FUEL 1 Digital input 4 DEACTIVATION LIMIT VALUE 1 ... 4 Digital input 5 RESET LIMIT VALUE 1 ... -
Page 67: Technical Data For Hart Module
Avoid transmission line! Terminal assignment: 1+ / 1- Analogue output 1 and HART communication (SLAVE) 2+ / 2- Analogue output 2 24 VDC Voltage supply for LT3 Terminals 77-/78+ CAN H/L LAMTEC SYSTEM BUS for LT3 Terminals 74 H/75 L... -
Page 68: Hart Commands And Dip Switch Settings
See separate documentation. Field Bus Module for PROFIBUS PBM100 The burner control system communicates via LAMTEC SYSTEM BUS (LSB) with its modules consistently. PROFIBUS module PBM100 integrates LAMTEC burner control system into field bus environment (PROFIBUS). PBM100 listens for different, measured process values on LSB, processes these signals and transfers them to field bus. -
Page 69: Leds
[1mV] 11, 12 Probe voltage U Effective CO voltage, int16 in [0.1mV] 13, 14 LT3 status Device status bit-encoded 15, 16 Warning word 1 LT warnings bit-encoded, Bit [0 ... 15] for each warning 1 ... 16... -
Page 70: Communication Appendix
Options Specification of the PROFIBUS master output data The following shows the assignment of the output data received by the PBM from the PROFI- BUS master. NOTICE If the PROFIBUS module is used with a BT300 with software version 3.3 or older, only select- ed LSB digital modules can be used (see the LSB module ID table in Chapter 8.5.4 Commu- nication Appendix. - Page 71 Maintenance mode 0x1000 Replacement value is sent 0x2000 Warning of measured value 0x4000 Fault of measured value 0x8000 Measured valid Bit encoding of LT3(F) device status Active (bit encoding) Explanation 0x0001 Measurement 0x0002 Heating up 0x0003 Calibration 0x0004 ... 0x0100...
-
Page 72: External Connection
• 300 - 500 m 2 x 2 x 0.75 mm Example cable type for fixed installation: • LAPP cable 2170267 (LAMTEC article no.: 05L05 2 x 2 x 0.5). • HELU cable 800685. LSB Module for Calculating Combustion Efficiency... -
Page 73: Functional Description
Options 8.6.1 Functional Description Properties: • Two Pt100 temperature inputs to record the flue gas temperature and inlet temperature • Two analogue outputs 0/4 ... 20 mA to emit the flue gas temperature and efficiency • Power supply 24 VDC/50 mA (PELV) NOTICE All outgoing lines from the LSB module must be screened. - Page 74 Options Terminal assignment: 10 / 11 / 12 Pt100 temperature input for recording the flue gas temperature 0 ... 400 °C 7 / 8 / 9 Pt100 temperature input for recording the inlet temperature 0 ... 400 °C 3+ / 3- Analogue output 3 efficiency Factory setting: 80 ...
- Page 75 Options DIP switches 2 and 3 LSB device family 3 2 OFF 3 ON DIP switches 2 and 3 LSB device family 4 2 ON 3 ON DIP switch 4 Operating mode OFF normal mode ON Do not use the programming mode DIP switch 5 - 8 Not assigned LED status...
-
Page 76: Storage
Storage Storage Storage Conditions NOTICE Do not store the device outside without any protection! When uninstalling, protect the ends of cables and the connectors from corrosion and soil- ing. Corroded connectors can cause malfunctions. Always store in a dry location and, if possible, keep in the original packaging. ... -
Page 77: Disposal Notes
Disposal Notes Disposal Notes 10.1 Environmental Protection, Waste Disposal The design of Lambda Transmitter and KS1D is also based on environmental considerations. The modules can easily be separated and sorted into distinct types, and recycled accordingly. The device contains electrical and electronic components and must not be disposed of as do- mestic waste. -
Page 78: Appendix
Wet/Dry Measurement Deviations, Conversion Table NOTICE The LT3 carries out measurements directly in the humid flue gases (wet measurement). When extractive devices are used, flue gases are removed and prepared. Dry measurements are normally used here, since the humidity has been extracted from the flue gas. - Page 79 Appendix...
- Page 80 The information in this publication is subject to technical changes. LAMTEC Meß- und Regeltechnik für Feuerungen GmbH & Co. KG Wiesenstraße 6 D-69190 Walldorf Telefon: +49 (0) 6227 6052-0 info@lamtec.de Telefax: +49 (0) 6227 6052-57 www.lamtec.de Printed in Germany | Copyright 2018...
