Isotra ARTOSI Technical Manual

Hide thumbs Also See for ARTOSI:

Advertisement

Quick Links

Download this manual
EN
TECHNICAL MANUAL
ARTOSI

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARTOSI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Isotra ARTOSI

Summary of Contents for Isotra ARTOSI

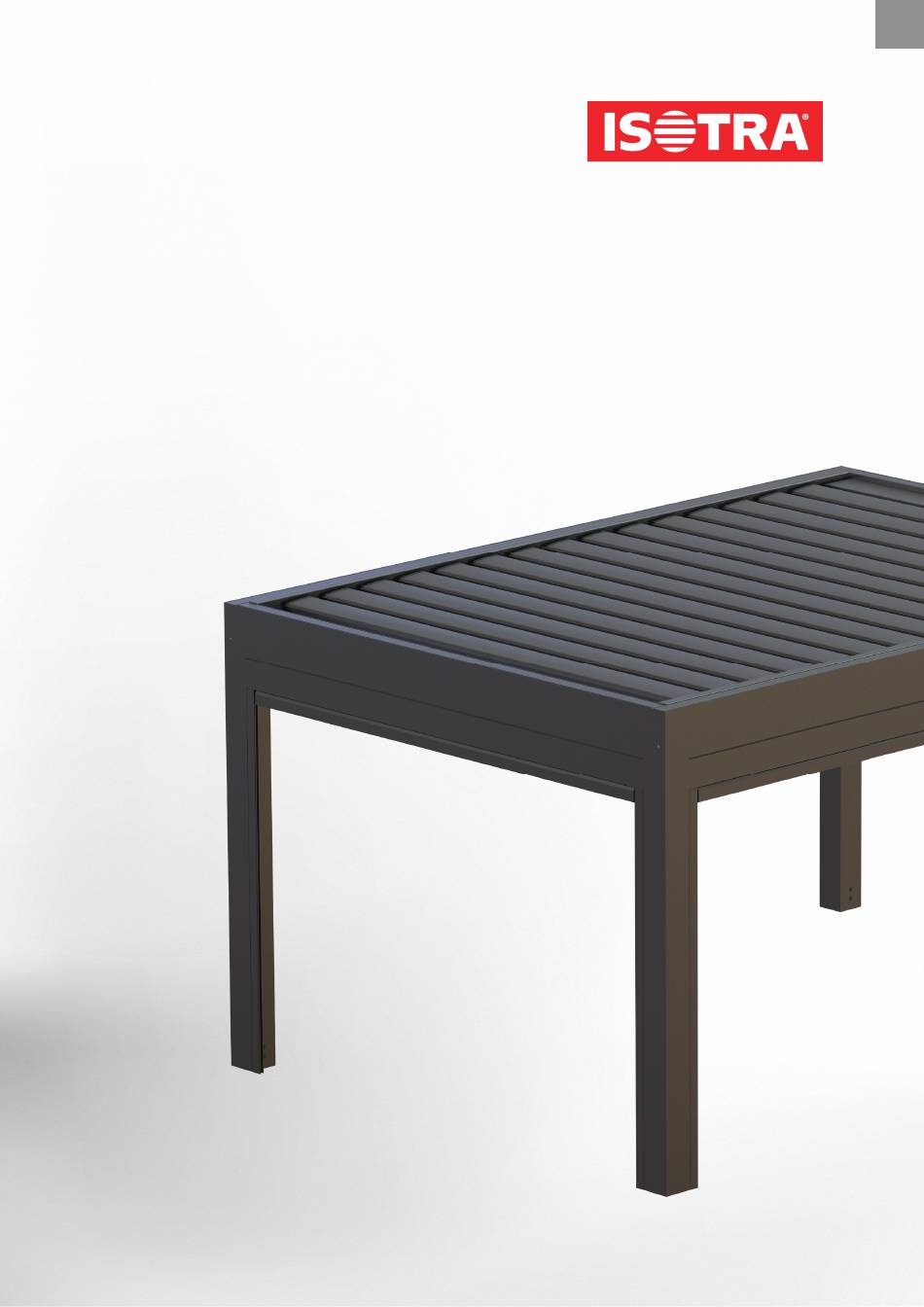

  • Page 1 TECHNICAL MANUAL ARTOSI...
  • Page 2 Measurement and assembly A brand that represents many years of tradition, incalculable investments into own development, use of high-quality materials, technological advancement, competent work of hundreds of employees, and many other parameters constituting a composite whole – the final ISOTRA product.
  • Page 3 PERGOLAS ARTOSI Pergola manufacture to exact dimensions in cm  Possibility to place the poles up to 1 metre away from the  pergola corner inwards Low building height of the roof section incl. slat opening –  25 cm in total Possibility to divide the pergola roof slats into several ...
  • Page 4 PERGOLAS ARTOSI Basic product specification Design variants Type A Type B Type C...

  • Page 5: Standard Dimensions

    Length (extension, mm) Width S (mm) Pergola Version Height ,,H‘‘(mm) max. min. max. min. max. max. motor ARTOSI 1440 7000* 1000 4000 3000 Standard RAL 7016 anthracite grey RAL 9006 light silver colours RAL 8014 brown RAL 9007 silver RAL 7016S anthracite grey structured...
  • Page 6 PERGOLAS ARTOSI Technical specification Pergola functions Sun protection Sun protection and cooling Rain protection Slat orientation Light transmission through the pergola with respect to the slat position and sun position. 45° 130° Slat orientation Slat tilting 0° View View direction direction „B“...

  • Page 7: Technical Specification

    PERGOLAS ARTOSI Technical specification 1. Perimeter frame (A1-A3) 2-01529-XXXX 3-03408-PU11 3-03242-PU11 3-03258-0000 3-03366-PU11 EAVES SECTION COVER SECTION DRAWBAR SECTION BRACKET SECTION (split) (split) (split) (split)
  • Page 8 PERGOLAS business name position item name drawing number Bracket section (split) 3-03366-PU11 Eaves section (split) 3-03408-PU11 Diffuser for LED section; frosted, telescopic, 2 m PG 050 6-015510-0000 Eaves cover - Left - RAL 3-03265-PU11 Eaves cover - Right - RAL 3-03266-PU11 Adjusting cube PG 043...
  • Page 9 PERGOLAS 3. Perimeter frame (A3-C3) 2-01529-XXXX business name position item name drawing number Bracket section (split) 3-03366-PU11 Screw 3,5x9,5, DIN 7504 K, A2, 6hr. PG 039 6-016381-0000 Corner connector - RAL 3-03433-PU11 Screw 6,3x38, DIN 7504 K, A2, 6hr. PG 037 6-016278-0000 Cup-head bolt M10x20, A2, ISO 7380-2 PG 044...
  • Page 10 PERGOLAS 5. Slat – assembly 2-01541-XXXX position item name business name drawing number Slat section 7-303573-0000 Sealing section PG 031/1 7-303537-9004 Slat side board – driving PG 084 7-303268-0000 Slat side board - Non-driving PG 085 7-303269-0000 Short pin R PG 008/1 7-303532-0000 Medium pin...
  • Page 11 PERGOLAS Adjustable foot - hidden 2-01554-PU11 Adjustable foot - visible 2-01558-PU11 Pole section 7-303443-XXXX B3 - detail Fixing points for type B Cable outlet Pole Scheme of regulated water drainage - piping is not included in delivery Platnost návodu: 06. 11. 2019 Funnel 3-03394-0000 Hem - without drain 3-03418-PU11...
  • Page 12 PERGOLAS Approximate pergola weight (kg) 1400 1620 1800 1980 2160 2340 2520 2700 2880 3060 3240 3420 3600 3780 3960 4140 2500 2800 3100 3400 3700 4000 4320 4500 4680 4860 5040 5220 5400 5580 5760 5940 6120 6300 6480 6660 6840 7000...
  • Page 13 PERGOLAS ARTOSI Pergola Measurement Always take measurements of the outer profiles of the structure. The following must be stated: total width (S), total extension (l) (indicated as height in the order form), and passage height (H) for each individual pole.
  • Page 14 PERGOLAS Variant C 1. Introduction Read this installation manual carefully prior to installing the pergola structure. This structure has been designed solely as protection from sun, rain, and wind, and cannot be considered water-tight. Incorrect use or incorrect installation may result in the termination of the guarantee. Anchoring materials must be selected with respect to the structure in which the pergola is to be attached.

  • Page 15: Installation Instructions

    PERGOLAS 3. INSTALLATION INSTRUCTIONS Ground Mounting – Variant A It is expected that for this variant, at least concrete feet have been prepared in advance, or a flat surface is available to which the pergola is to be installed. The recommended minimum foot dimensions are 300 × 300 mm, frostproof depth. A.1 First determine plane A1–A3 (C1–C3) and feet placement positions.
  • Page 16 NÁVOD NA VYMĚŘENÍ A MONTÁŽ PERGOLAS MONTÁŽ DO ZEMĚ – VARIANTA A – obrázky k výše popsaným činnostem GROUND MOUNTING – VARIANT A – FIGURES TO ILLUSTRATE THE ABOVE ACTIVITIES Platnost návodu: 06. 11. 2019...
  • Page 17 PERGOLAS NÁVOD NA VYMĚŘENÍ A MONTÁŽ Platnost návodu: 06. 11. 2019...
  • Page 18 NÁVOD NA VYMĚŘENÍ A MONTÁŽ PERGOLAS Platnost návodu: 06. 11. 2019...
  • Page 19 NÁVOD NA VYMĚŘENÍ A MONTÁŽ PERGOLAS Wall Mounting – Variant B Prior to taking any measurements, check the surface to which the pergola is to be installed. Measure the surface inclination, difference of level at the house wall and on the opposite side of the pergola. Place the pergola in accordance with the client’s instructions (to the centre, to the left side, etc.).
  • Page 20 NÁVOD NA VYMĚŘENÍ A MONTÁŽ PERGOLAS MONTÁŽ NA STĚNU - VARIANTA B – obrázky k výše popsaným činnostem Wall Mounting – Variant B – figures to illustrate the above activities MONTÁŽ NA STĚNU - VARIANTA B – obrázky k výše popsaným činnostem B3 - detail B3 - detail B3 - detail...
  • Page 21 PERGOLAS B5, B6 B5, B6 Platnost návodu: 06. 11. 2019...
  • Page 22 PERGOLAS Wall Mounting – Variant C Prior to taking any measurements, check the surface to which the pergola is to be installed. Measure the surface inclination, difference of level at the house wall and on the opposite side of the pergola. Place the pergola in accordance with the client’s instructions (to the centre, to the left side, etc.).
  • Page 23 PERGOLAS NÁVOD NA VYMĚŘENÍ A MONTÁŽ NÁVOD NA VYMĚŘENÍ A MONTÁŽ Platnost návodu: 06. 11. 2019...
  • Page 24 PERGOLAS ČÁSTÍ KONSTRUKCE, KTERÉ JE NUTNO OŠETŘIT TĚSNÍCÍM TMELEM STRUCTURAL PARTS TO BE TREATED WITH SEALING COMPOUND Platnost návodu: 06. 11. 2019...

  • Page 25: Electrical Connections

    PERGOLAS ELECTRICAL CONNECTIONS The pergolas are controlled by one, two, or three motors, and the individual sections can be controlled individually, or together. The standard confi guration is Somfy io motor with Somfy Situo 5 Variation io controller. If a rain sensor is used, it is necessary to use the WT motor with a remote control receiver (the rain sensor is not supplied in the io version).
  • Page 26 When installing our screen ZIP roller blinds, we recommend to always use guide rails type 838. With respect to the dimensions of poles used for the Artosi pergolas (110 × 110 mm), we recommend using 110 mm box when installing screen roller blinds.

  • Page 27: Recommended Maintenance

    PERGOLAS UNPACKING AND STORING THE PERGOLA In most cases, the pergola is supplied in wooden crates. We therefore recommend unloading the crates from the vehicle using a fork-lift truck. If a fork-lift truck cannot be provided, open the crates on the vehicle and carefully unload the individual parts of the pergola and place them on a flat surface –...
  • Page 28 PERGOLAS Pergola Anchoring Template: Space for cable outlet The through hole is always oriented to the exterior side of the pergola. View of the foot from the inner side of the pergola.
  • Page 29 PERGOLAS Template TypeB Space for cable outlet PROSTORY PRO PROSTUP KABELU ISOTRA ARTOSI - ŠABLONA PRO KOTVENÍ NA STĚNU - TypB (A3A1)
  • Page 30 PERGOLAS Notes:...
  • Page 31 PERGOLAS...
  • Page 32 ISOTRA a.s. ISOTRA Partner Bílovecká 2411/1, 746 01 Opava Tel.: +420 553 685 111 Fax: +420 553 685 110 E-mail: isotra@isotra.cz www.isotra.com Released: 02/2020 … protecting your privacy.
