PERGOLA ARTOSI
Measurement
Always take measurements of the outer profiles of the structure.
We enter the total width [W], the total length [L] (marked as
height in the order form) and passage height (H) for each
individual pole.
When taking the measurements, it is also necessary to specify
optional accessories such as lighting, rain sensor, etc. In the order
form. It is also suitable to specify construction readiness for the
subsequent installation of the whole pergola system (anchor
points, water outflow, motor placement, electricity connections, integration of the pergola to the
house, etc.). When the pergola is mounted properly, slats dropping is made in direction from the motor to
the other side. Water drainage has to be thus always on the opposite side of the motor. There always has to
be at least one drainage groove in a pergola.
Measurements will be described in detail for each variant of the pergola types.
The supply includes a dimensional sketch of the actual order with electricity connections and water outflow
points.
Manipulation space is necessary for the installation – see the cross-hatched area (red) in the figures below.

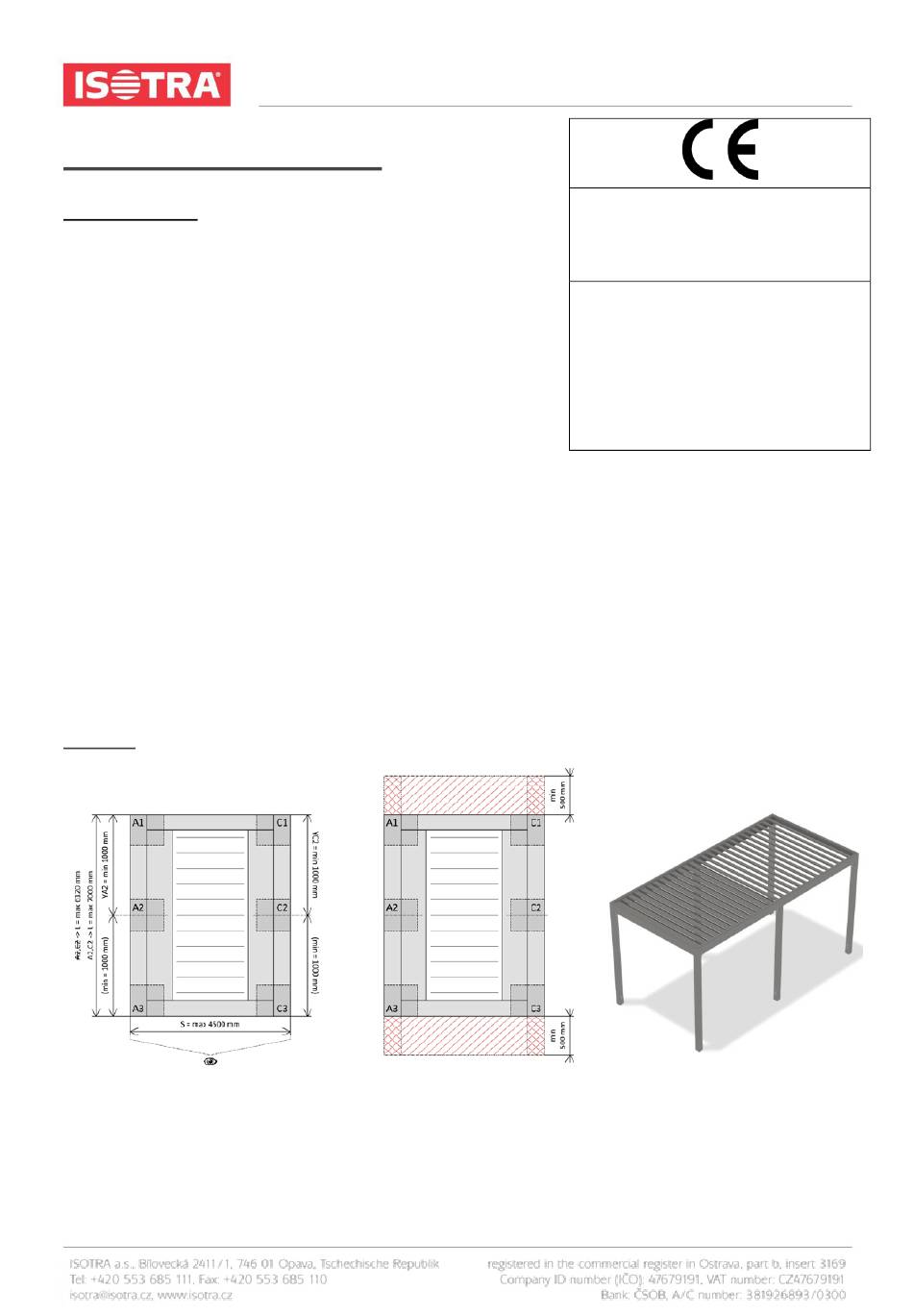

Variant A
Validity of the manual: 21.3.2022
MEASUREMENT AND ASSEMBLY MANUAL
Wind resistance: 6
Total solar energy transmission factor gtot: 0,03 - 0,6
ISOTRA a.s.
Bílovecká 2411/1, 746 01 Opava
19
EN 13561:2015
ARTOSI
CPR 043/2019
Exterior Sun Screen
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARTOSI and is the answer not in the manual?

Questions and answers

Related Manuals for Isotra ARTOSI

Summary of Contents for Isotra ARTOSI

  • Page 1 MEASUREMENT AND ASSEMBLY MANUAL PERGOLA ARTOSI Measurement ISOTRA a.s. Bílovecká 2411/1, 746 01 Opava Always take measurements of the outer profiles of the structure. We enter the total width [W], the total length [L] (marked as EN 13561:2015 height in the order form) and passage height (H) for each ARTOSI individual pole.
  • Page 2 MEASUREMENT AND ASSEMBLY MANUAL Variant B Variant C Validity of the manual: 21.3.2022...

  • Page 3: Installation Instructions

    MEASUREMENT AND ASSEMBLY MANUAL 1. Introduction Read this installation manual carefully prior to installing the pergola structure. This structure has been designed solely as protection from sun, rain, and wind, and cannot be considered water-tight. Incorrect use or incorrect installation may result in the termination of the guarantee. Anchoring materials must be selected with respect to the structure in which the pergola is to be attached.
  • Page 4 MEASUREMENT AND ASSEMBLY MANUAL (40 × 1.8 mm) for water draining (not part of delivery) into the pole and apply sealing compound to the funnel, see Fig. D.1. Adjust the height of the pole A1 according to the actual passage height (the pole height can be adjusted in the range of + 2 cm) and tighten the four countersunk bolts M8.
  • Page 5 MEASUREMENT AND ASSEMBLY MANUAL GROUND MOUNTING – variant A – FIGURES TO ILLUSTRATE THE ABOVE ACTIVITIES Validity of the manual: 21.3.2022...
  • Page 6 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 21.3.2022...
  • Page 7 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 21.3.2022...
  • Page 8 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 21.3.2022...
  • Page 9 MEASUREMENT AND ASSEMBLY MANUAL Wall Mounting – Variant B Prior to taking any measurements, check the surface to which the pergola is to be installed. Measure the surface inclination difference of level at the house wall and on the opposite side of the pergola. Place the pergola in accordance with the client’...
  • Page 10 MEASUREMENT AND ASSEMBLY MANUAL Wall Mounting – Variant B – figures to illustrate the above activities B5, B6 Validity of the manual: 21.3.2022...
  • Page 11 MEASUREMENT AND ASSEMBLY MANUAL Wall Mounting – Variant C Prior to taking any measurements, check the surface to which the pergola is to be installed. Measure the surface inclination, difference of level at the house wall and on the opposite side of the pergola. Place the pergola in accordance with the client’s instructions (to the centre, to the left side, etc.).
  • Page 12 MEASUREMENT AND ASSEMBLY MANUAL WALL MOUNTING – VARIANT C – FIGURES TO ILLUSTRATE THE ABOVE ACTIVITIES Validity of the manual: 21.3.2022...
  • Page 13 MEASUREMENT AND ASSEMBLY MANUAL Validity of the manual: 21.3.2022...
  • Page 14 MEASUREMENT AND ASSEMBLY MANUAL STRUCTURAL PARTS TO BE TREATED WITH SEALING COMPOUND Silicone – gutter corner Validity of the manual: 21.3.2022...

  • Page 15: Electrical Connections

    MEASUREMENT AND ASSEMBLY MANUAL ELECTRICAL CONNECTIONS Pergolas are controlled by one or two motors, individual sections can be controlled separately or together. The Somfy WT motor is used as standard, as well as the external pergola Slim receiver IO, the Somfy Situo 5 Variation IO controller.
  • Page 16 MEASUREMENT AND ASSEMBLY MANUAL The LED supply unit is placed within the transverse section (A1-C1 or A3-C3). The unit is powered from the central box using a Hirschmann terminal. The LED supply unit contains a 220/24 V transformer, LED io receiver, connecting box. The unit can be removed from the transverse section.
  • Page 17 When installing our screen ZIP roller blinds, we recommend to always use guide rails type 838. With respect to the dimensions of poles used for the Artosi pergolas (110 × 110 mm), we recommend using 110 mm box when installing screen roller blinds. If a larger box is used and the roller blinds are attached to...
  • Page 18 MEASUREMENT AND ASSEMBLY MANUAL UNPACKING AND STORING THE PERGOLA In most cases, the pergola is supplied in wooden crates. We therefore recommend unloading the crates from the vehicle using a fork-lift truck. If a fork-lift truck cannot be provided, open the crates on the vehicle and carefully unload the individual parts of the pergola and place them on a flat surface –...

  • Page 19: Maintenance

    MEASUREMENT AND ASSEMBLY MANUAL 2. MAINTENANCE In order to keep the product in perfect operating and safety conditions, proceed as follows: • Visually inspect the load-bearing structure at least twice a year (in spring and before winter). If it is necessary, clean the surface of aluminium profiles from dirt, dust and smog.
  • Page 20 MEASUREMENT AND ASSEMBLY MANUAL Pergola Anchoring Template: The through hole is always oriented to the exterior side of the pergola. View of the foot from the inner side of the pergola. Validity of the manual: 21.3.2022...
  • Page 21 MEASUREMENT AND ASSEMBLY MANUAL Construction readiness Validity of the manual: 21.3.2022...
