Envirovent PIV AIR SOURCE Installation Manual page 6

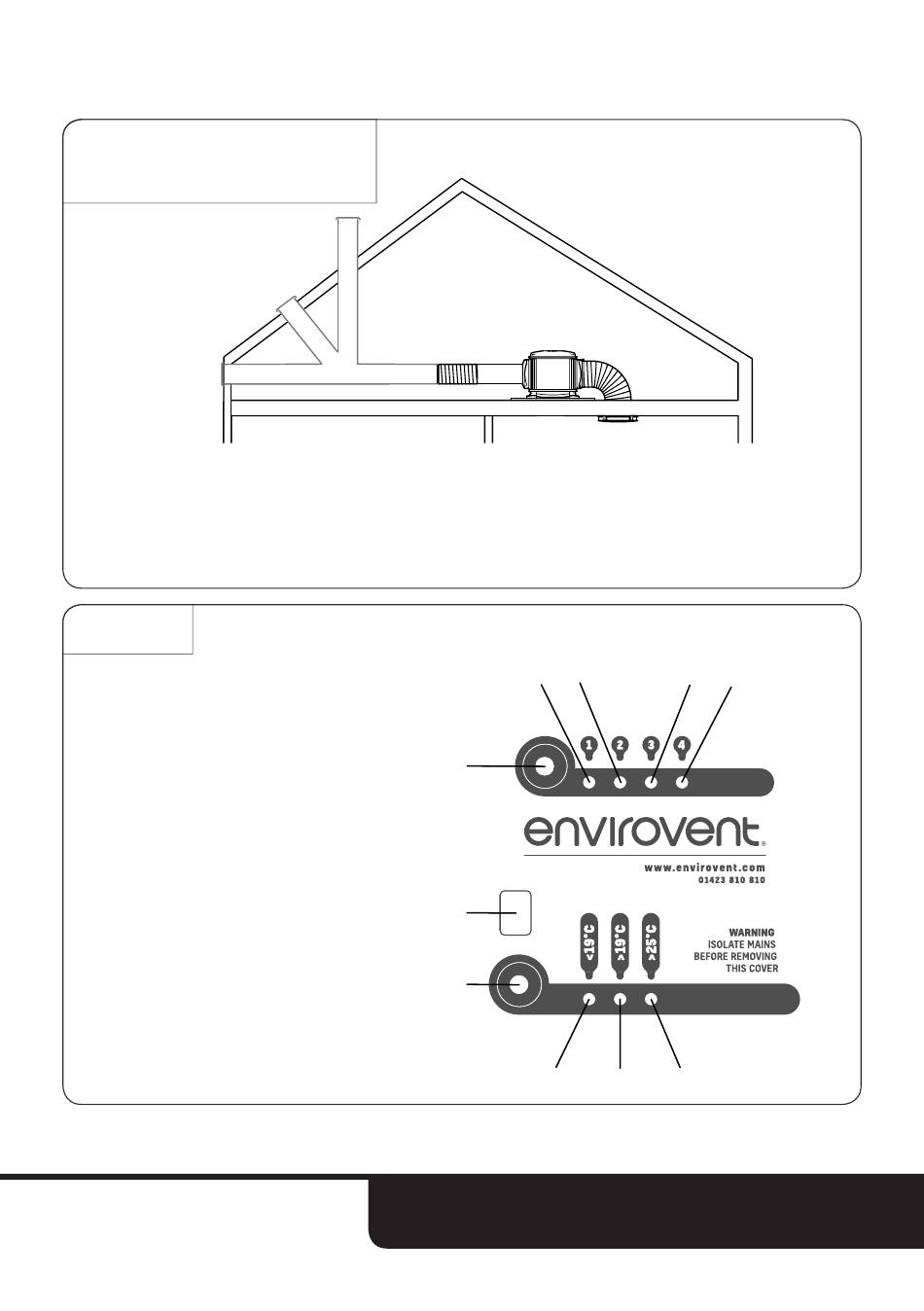

INLINE DUCT
CONFIGURATIONS
1
Use one of three options to connect the inline duct to the outside of the property (extra
parts not supplied):
1. Straight duct to a wall mounted vent or grille.
2. Angled duct to a roof tile vent.
3. 90 degree bend duct to a straight roof vent.
KEYPAD
1 - Airflow 1
2 - Airflow 2
3 - Airflow 3
4 - Airflow 4
5 - Temperature <19
6 - Temperature >19
7 - Temperature >25
8 - Top button
9 - Numeric Display
10 - Bottom button
5
PIV & MIV Air Source / Inline
3
2
8
C
0
C
0
9
C
0
10
SHOULD YOU ENCOUNTER ANY PROBLEMS
INSTALLING THIS UNIT, CALL US ON:
1 2 3
5 6 7
01423 859 395
4
