Summary of Contents for Envirovent PROFILE–150S

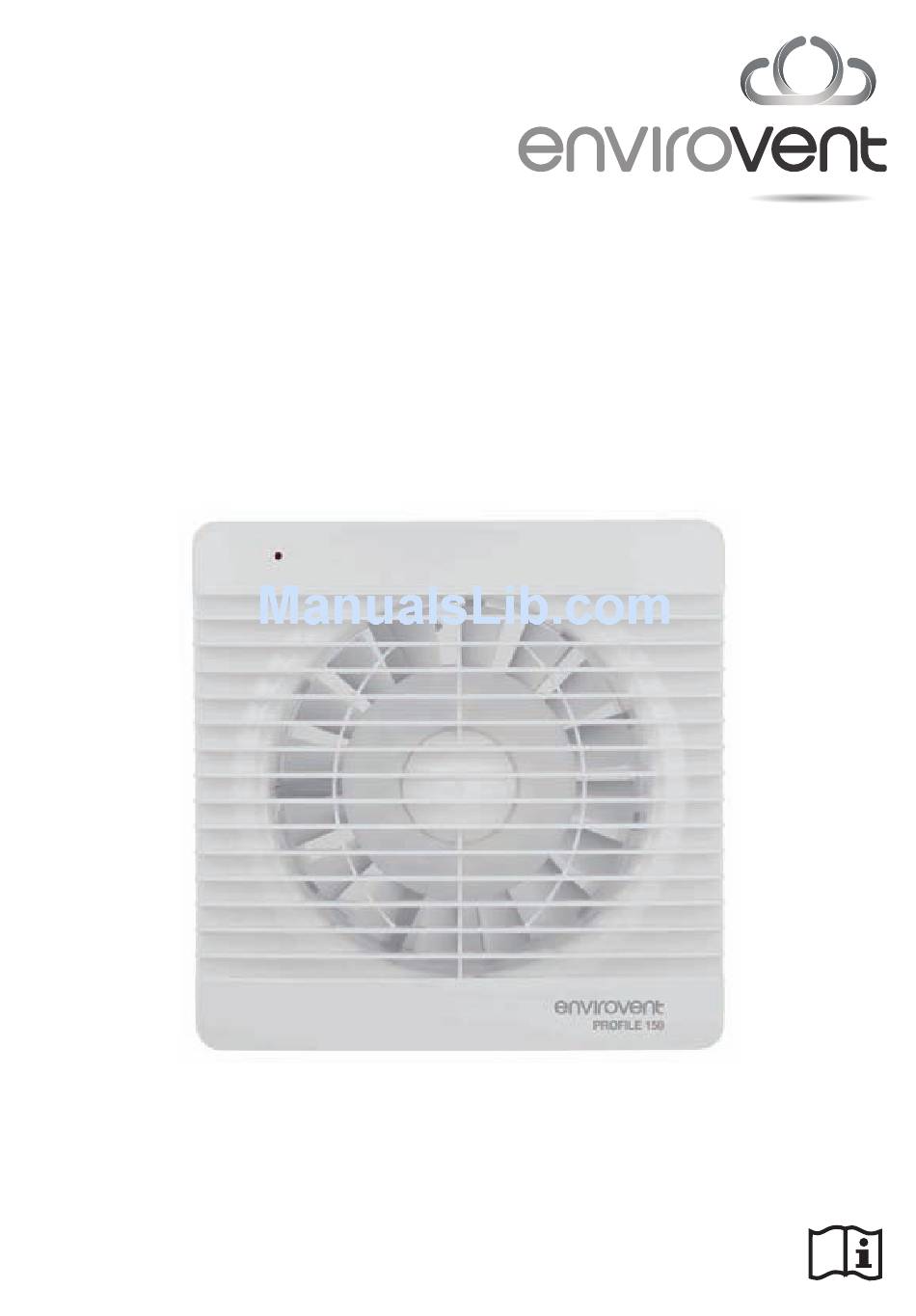

- Page 1 PROFILE-150 Installation and Wiring Instructions...
- Page 2 PROFILE-150 AXIAL EXTRACTOR FANS Suitable for kitchen applications Thank you for placing your confidence in EnviroVent by buying this product. It has been manufactured in accordance with current safety regulations, production and quality standards as laid down by the international Quality Standard ISO 9001.
- Page 3 INSTALLATION: PROFILE –150 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 t min 2/20 2/20 % Hr 60/90 60/90 Fig.7 Fig.8...
- Page 4 5 – Connection terminals The PROFILE-150 is suitable for panel, ceiling or wall mounting (for wall mounting applications using EnviroVent wall kit) (fig. 2). Drill 160mm-diameter hole in chosen position in the panel, ceiling or wall. The hole for •...
- Page 5 WIRING IMPORTANT: ENSURE THAT THE MAINS SUPPLY IS SWITCHED OFF BEFORE MAKING ELECTRICAL CONNECTIONS. The PROFILE is an extractor fan designed for a single-phase supply, with voltage and frequency as indicated on the rating plate of the unit. The units are manufactured with double insulation (Class ll) and therefore do not require an earth connection.
- Page 6 We recommend you recommend you recommend you do not dismantle or remove any other parts than those mentioned, as any tampering would automatically cancel the guarantee. If you detec any fault, contact EnviroVent on 01423 810810. Thank you for choosing EnviroVent - the fastest growing ventilation company in the And remember, if you have any problems please call our dedicated Technical Team on the Hotline 0845 27 27 810.
- Page 7 In the event of any failure of the fan within two years of supply- excluding only wilful or careless damage – we will exchange the fan free of charge. EnviroVent Ltd EnviroVent House Hornbeam Business Park Harrogate HG2 8PA Name and address of purchaser ………………………………………...
- Page 8 EnviroVent Ltd EnviroVent House Hornbeam Business Park Harrogate Hg2 8PA 01423 810 810 info@envirovent.com www.envirovent.com Ref.9023007502...
