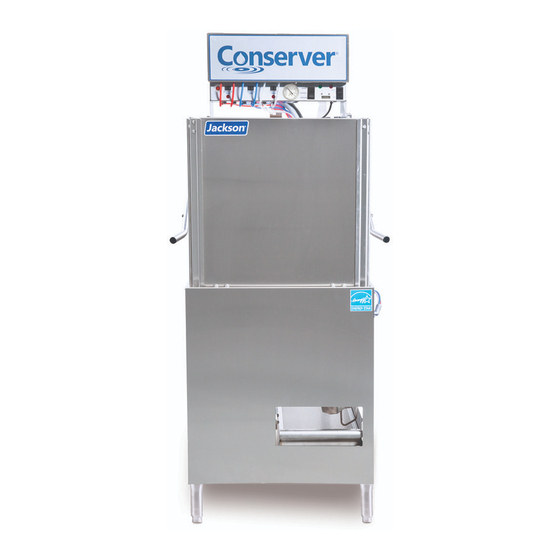

Jackson CONSERVER XL-E Installation, Operation And Service Manual
  1. Manuals
  2. Brands
  3. Jackson Manuals
  4. Dishwasher
  5. CONSERVER XL-E
  6. Installation, operation and service manual

Jackson CONSERVER XL-E Installation, Operation And Service Manual

Dishmachines
Hide thumbs Also See for CONSERVER XL-E:
Table of Contents

Advertisement

Quick Links

Download this manual

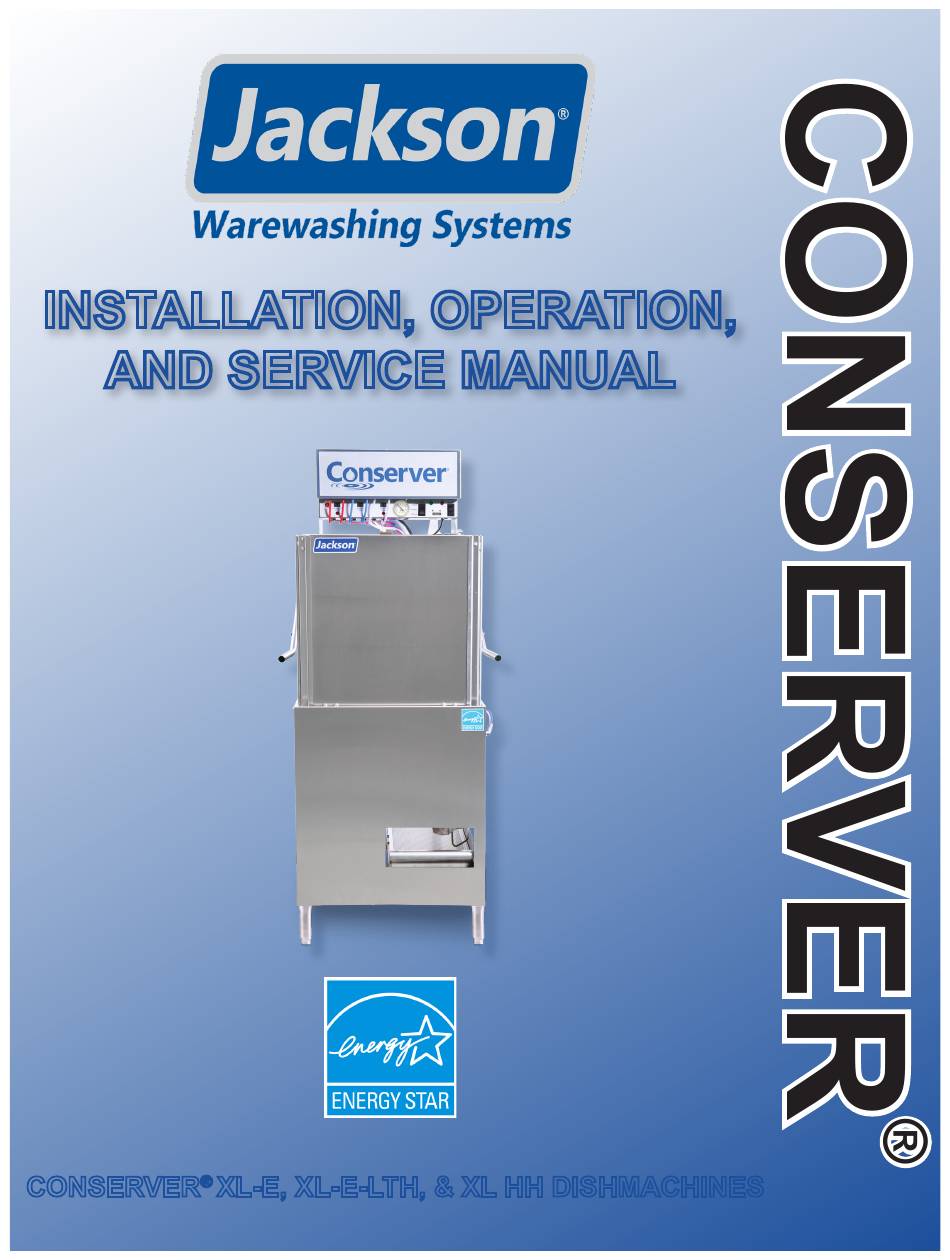

INSTALLATION, OPERATION,
AND SERVICE MANUAL
CONSERVER
XL-E, XL-E-LTH, & XL HH DISHMACHINES
®
Conserver XL-E/XL-E-LTH/XL HH Manual • 07610-003-92-84-R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONSERVER XL-E and is the answer not in the manual?

Questions and answers

Related Manuals for Jackson CONSERVER XL-E

Summary of Contents for Jackson CONSERVER XL-E

  • Page 1 INSTALLATION, OPERATION, AND SERVICE MANUAL CONSERVER XL-E, XL-E-LTH, & XL HH DISHMACHINES ® Conserver XL-E/XL-E-LTH/XL HH Manual • 07610-003-92-84-R...
  • Page 2 ONE YEAR LIMITED PARTS AND LABOR WARRANTY For a period of one (1) year from date of original installation of a new Jackson Dishmachine (but in no event to exceed eighteen (18) months from date of shipment from Jackson’s factory), Jackson WWS, Inc. (Jackson) will repair or replace, at its discretion, any original part that proves defective in materials or workmanship at the time the Dishmachine was purchased;...
  • Page 3 MANUFACTURER'S LIMITED WARRANTY (CONT.) (APPLICABLE ONLY IN THE UNITED STATES AND CANADA) PRODUCT CHANGES: Jackson reserves the right to make changes in design and specification of any component of the Dishmachine as engineering or necessity requires. DISCLAIMER OF WARRANTIES: THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, THAT ARE NOT SET FORTH HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF.
  • Page 4 REVISION HISTORY Revision Revision Made by Applicable ECNs Details Letter Date 1-6-14 8241 Release to production. 8-18-14 8305 Removed pg. 17, updated part on pg. 20. 8-29-14 Updated part on pg. 27. Added 208 V schematic on pg. 32. Updated available electrical characteristics on pg. 4. 10-14-14 Updated pg.
  • Page 5 NOMENCLATURE Conserver XL-E ® Door-type dishmachine; chemical-sanitizing, single-rack. Conserver XL-E-LTH ® Door-type dishmachine; chemical-sanitizing, single-rack, with booster heater. Conserver XL HH ® Door-type dishmachine; chemical-sanitizing, single-rack with high hood. The manufacturer provides technical support for all of the dishmachines detailed in this manual.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS GUIDES Symbols ............................1 Abbreviations & Acronyms ......................1 SPECIFICATIONS XL-E Dimensions ........................2 XL-E-LTH Dimensions ........................3 XL HH Dimensions ........................4 Table Installation .........................5 Operating Capacities ........................6 Electrical Requirements ......................7 INSTALLATION Installation Instructions ....................... 8 Inspection......................... 8 Unpacking ........................8 Leveling..........................
  • Page 7 TABLE OF CONTENTS MAINTENANCE Preventative Maintenance ......................21 TROUBLESHOOTING Troubleshooting ........................22 PARTS XL-E Control Box ........................24 XL-E-LTH Control Box ......................26 XL HH Control Box ........................28 Chemical Feeder Pump Components ..................31 XL-E Hood ..........................33 XL-E-LTH Hood ........................35 XL HH Hood ..........................37 Plumbing Options ........................39 XL-E/XL-E-LTH Door ........................40 XL HH Door ..........................42...

  • Page 8: Symbols

    GUIDES GUIDES SYMBOLS - Risk of Injury to Personnel WARNING - Risk of Damage to Equipment CAUTION - Risk of Electrical Shock - Caustic Chemicals - Reference Data Plate - Lockout Electrical Power - Important Note NOTICE  - Instructions Hyperlink ABBREVIATIONS &...

  • Page 9: Specifications

    XL-E DIMENSIONS SPECIFICATIONS 4 in (102 mm) LEGEND MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) 1 (25 mm) C - Drain Connection (2” NPT) D - Chemical Connection (7/8” Hole) 13 1/4 (337 mm) All dimensions from the floor can be increased 1 1/2”...

  • Page 10: Xl-E-Lth Dimensions

    XL-E-LTH DIMENSIONS SPECIFICATIONS 4 in (102 mm) LEGEND MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) 1 (25 mm) C - Drain Connection (2” NPT) D - Chemical Connection (7/8” Hole) All dimensions from the floor can be increased 13 1/4 (337 mm) 1 1/2”...

  • Page 11: Xl Hh Dimensions

    All dimensions from the floor can be increased 13 1/4 (337 mm) 1 1/2” using the machine’s adjustable feet. 29 1/2 (750 mm) 4 in (102 mm) CONSERVER XL-E HH CONSERVER XL-E HH MINIMUM 29 1/4 (743 mm) 5 3/4 (146 mm) 6 3/4 (171 mm)
  • Page 12 TABLE INSTALLATION SPECIFICATIONS CORNER INSTALLATION 4 (102 mm) MIN ALIGN WITH TABLE - DISTANCE CAN VARY XL-E/XL-E-LTH False Panel Kit 4 (102 mm) MIN 05700-003-12-93 ALIGN WITH TABLE - DISTANCE CAN VARY False Panel Only 8 1/4 4 (102 mm) MIN (210 mm) 05700-002-51-66 20 1/2”...

  • Page 13: Operating Capacities

    OPERATING CAPACITIES SPECIFICATIONS Model Designation: XL-E XL-E-LTH XL HH Operating Capacity: Racks per Hour Dishes per Hour Glasses per Hour 1404 1404 1404 Tank Capacity (Gallons): Wash Tank 1.02 (40.2 GPH) 1.02 (40.2 GPH) 1.61 (62.8 GPH) Electrical Loads (as applicable): Wash Motor HP Operating Times (seconds): Normal Medium Heavy...

  • Page 14: Electrical Requirements

    ELECTRICAL REQUIREMENTS SPECIFICATIONS NOTICE All electrical ratings provided in this manual are for reference only. Always refer to the machine data plate to get exact electrical information for this machine. All electrical work performed on machines should be done in accordance with applicable local, state, territorial, and national codes.

  • Page 15: Installation

    INSTRUCTIONS INSTALLATION INSPECTION Before installing the , check the packaging and machine for damage. If the machine packaging is damaged, the machine might also be damaged. If there is damage to both the packaging and machine, do not throw away the packaging. The has been machine Do not throw away the...

  • Page 16: Water Supply Connections

    INSTRUCTIONS INSTALLATION WATER SUPPLY If water hardness tests higher than 3 GPG, install the Scaltrol Water Treatment system (see the Plumbing Options page) into the water line before the machine’s incoming CONNECTIONS: water connection point. A water shut-off valve should be installed to allow access for WATER HARDNESS service.

  • Page 17: Electrical Power Connections

    INSTRUCTIONS INSTALLATION ELECTRICAL POWER Electrical and grounding conductors must comply with the applicable portions of the National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes. CONNECTIONS Refer to the machine data plate for machine operating requirements, machine voltage, total amperage, and serial number.

  • Page 18: Voltage Check

    INSTRUCTIONS INSTALLATION VOLTAGE CHECK 1. Ensure power switch is in the OFF position and apply power to the machine 2. Check the incoming power at terminal block and ensure it corresponds to voltage listed on the data plate. If not, contact a qualified service agency to examine the problem.

  • Page 19: Heater Contactor Wires (Lth Only)

    INSTRUCTIONS INSTALLATION PRIMING CHEMICAL • Rinse-aid: FEEDER PUMPS WARNING WARNING! Some of the chemicals used in • Sanitizer: dishwashing might cause chemical burns if they come in contact with skin. Wear protective gear when handling these chemicals. If any contact with skin occurs, immediately follow the treatment 4.

  • Page 20: Cam Timer Operation

    INSTRUCTIONS INSTALLATION CAM TIMER The CAM timer is a 1-minute, 30-second, 8-CAM timer that controls the operation of the . The following is a description of the setpoints for each CAM and the function machine OPERATION of each switch. FUNCTION: When the machine is in operation mode the notch is in the home CAM 1 is a cut CAM with position.
  • Page 21 INSTRUCTIONS INSTALLATION CAM TIMER FUNCTION: The fill solenoid CAM works off the normally-closed contacts of CAM 5. The switch is held open by the CAM until it drops into the notch of the OPERATION CAM. This energizes the fill solenoid, which starts filling the machine with water. CAM 5 is an adjustable After a 10-second delay, the CAM reverses the switch, de-energizing the fill CAM that controls the fill...

  • Page 22: Operating Instructions

    OPERATING INSTRUCTIONS OPERATION PREPARATION Before operating the machine, verify the following: 1. The sump strainer and pan strainer are in place and clean. 2. The drain stopper is installed. 3. The wash/rinse arms (one on top and one on bottom) are installed and secure. POWER UP To place the in standby, flip OFF/ON/FILL switch to ON position.

  • Page 23: First Rack

    OPERATING INSTRUCTIONS OPERATION FILLING THE 3. Verify drain stopper is preventing wash tub water from pouring out excessively. There might be slight leakage from the drain hole. Verify there are no other WASH TUB leaks on the before proceeding further. machine 4.

  • Page 24: Shutdown & Cleaning

    OPERATING INSTRUCTIONS OPERATION SHUTDOWN & 1. Turn machine off by flipping OFF/ON/FILL switch to OFF position. CLEANING 2. Open door. 3. Remove drain stopper and allow tub to drain. WARNING WARNING! Wash tank water could be hot. 4. Remove sump strainer and pan strainer. 5.
  • Page 25 OPERATING INSTRUCTIONS OPERATION SHUTDOWN & 8. Verify the nozzles and arms are free from obstruction. If clogged, remove end- caps, clean nozzles with a brush, and flush with fresh water. CLEANING 9. Replace end-caps and ensure they have been tightened. 10.

  • Page 26: Deliming

    DELIMING INSTRUCTIONS OPERATION DELIMING 1. Follow Filling the Wash Tub section. 2. Add deliming solution per chemical supplier’s instructions. 3. Close door. 4. Flip NORMAL/DELIME switch on the back of the control box to DELIME. DELIME NORMAL 5. Run machine period of time recommended by chemical supplier. 6.

  • Page 27: Detergent Control

    DETERGENT CONTROL OPERATION DETERGENT Detergent use and water hardness are two factors that greatly contribute to the machine's operating efficiency. Using the proper amount of detergent can become a CONTROL source of substantial savings. A qualified water-treatment specialist can determine what is needed for maximum efficiency from the detergent.

  • Page 28: Preventative Maintenance

    PREVENTATIVE MAINTENANCE MAINTENANCE PREVENTATIVE The manufacturer highly recommends that any maintenance and repairs not specifically discussed in this manual be performed only by QUALIFIED SERVICE PERSONNEL. MAINTENANCE Performing maintenance on your machine may void your warranty, lead to larger problems, or even cause harm to the operator. So if you have a question or concern, do not hesitate to contact a QUALIFIED SERVICE AGENCY.

  • Page 29: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING OBSERVATION POSSIBLE CAUSE REMEDY Machine will not run, 1. Service disconnect switch 1. Turn disconnect on. no voltage at wash relay off or faulty. terminals L1 and T1. 2. Branch circuit breaker 2. Reset or replace. tripped/fuse blown. 3.
  • Page 30 TROUBLESHOOTING TROUBLESHOOTING OBSERVATION POSSIBLE CAUSE REMEDY Machine fills slowly and/or the 1. Clogged or obstructed 1. Remove and clean the rinse arms. rinse is weak. rinse arms. 2. Low incoming water pressure. 2. Adjust the water pressure regulator to ensure that there is 15 PSI water flow pressure.

  • Page 31: Parts

    XL-E CONTROL BOX PARTS 07610-003-92-84-R...
  • Page 32 XL-E CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Control Box Top 05700-003-81-49 Decal, Warning–Disconnect Power 09905-004-08-16 Upper Decal, XL-E 09905-004-00-07 Chemical Feeder Pump Assembly, 36 RPM (208 V) 05700-003-78-74 Chemical Feeder Pump Assembly, 36 RPM (115 V) 05700-003-25-02 Chemical Feeder Pump Assembly, 14 RPM (208 V) 05700-003-31-86 Chemical Feeder Pump Assembly, 14 RPM (115 V) 05700-003-25-03...

  • Page 33: Xl-E-Lth Control Box

    XL-E-LTH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER XL-E-LTH Control Box Complete Assembly 05700-004-49-01 Box, Control Assembly 05700-004-49-02 Bracket, Terminal Block 05700-004-51-59 Bracket, Pressure Switch 05700-004-08-99 Bracket, Timer Mounting 05700-004-08-77 Chemical Feeder Pump Assembly, 36 RPM 05700-003-78-74 Chemical Feeder Pump Assembly, 14 RPM 05700-003-31-86 Timer, Wash Cycle Delay 05945-002-13-78...
  • Page 34 XL-E-LTH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Contactor, 30 A 05945-004-43-74 Thermostat, Electric (Dual) 06685-004-17-27 Probe, Thermistor 4” 06685-004-17-26 Terminal Board 05940-021-94-85 Terminal Block, 3-Pole 05940-011-48-27 Contactor, 30 A 05945-002-74-20 Counter, Plastic 05990-111-47-42 Relay, Top Mount 05945-111-47-51 Timer 05945-111-48-25 Microswitch, Timer 05930-011-65-81 Lug, Ground...

  • Page 35: Xl Hh Control Box

    XL HH CONTROL BOX PARTS HOUSING COVER AND SCREWS REMOVE COVER FROM PUMP AND (ATTACH THE 8-32 FLAT HEAD SCREW) TO PUMP MOTOR INSIDE CONTROL BOX 07610-003-92-84-R...
  • Page 36 XL HH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER High Hood Control Box Complete Assembly 05700-004-25-41 Control Box Weldment 05700-003-81-49 Light, Red 05945-504-07-18 Light, Green 05945-504-08-18 Switch, Carling 05930-301-21-18 Counter, 115 V 05990-111-35-38 Counter, 208 V 05990-111-47-42 Screw, 4-40 x 1/4" Phillips Pan Head w/Washer 05305-002-32-38 Chemical Feeder Pump Assembly, 14 RPM (208 V) 05700-003-31-86...
  • Page 37 XL HH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Upper Decal 09905-004-30-01 Bracket, Pressure Switch 05700-004-08-99 Decal, Wash/Rinse 09905-002-82-46 P-clamp 1/4" ID 05975-002-61-42 Temperature Gauge 06685-111-68-49 Timer 05945-004-11-78 Microswitch, Timer 05930-011-65-81 Decal, Timer Cam Operation 09905-004-37-27 Screw, 6-32 x 3/8" SEMS w/Ext Wash 05305-002-25-91 Plug, 2643 1/3"...

  • Page 38: Chemical Feeder Pump Components

    CHEMICAL FEEDER PUMP COMPONENTS PARTS Technical Manual (07610-003-92-84) PARTS SECTION NOTICE For complete Chemical Feeder Pump Assembly part numbers, see the Control Box pages. CHEMICAL FEEDER PUMP COMPONENTS Rear Housing Chemical Feeder Pump Kit Assembly, 36 RPM w/ 04320-111-37-09 Motor 120V (Complete) 05700-003-25-02 Chemical Feeder Pump Kit Assembly, 14 RPM w/ Motor 120V (Complete) 05700-003-25-03 Screw, 8-32 x 3/8”...
  • Page 39 CHEMICAL FEEDER PUMP COMPONENTS PARTS ITEM DESCRIPTION PART NUMBER Rear Housing 04320-111-37-09 Motor, 14 RPM 115 V Rinse-aid Feeder Pump 04320-111-35-13 Motor, 14 RPM 208/230 V, Rinse-aid Feeder Pump 04320-111-47-46 Motor, 36 RPM 115 V, Detergent/Sanitizer Feeder Pump 04320-111-35-14 Motor, 36 RPM 208/230 V, Detergent/Sanitizer Feeder Pump 04320-111-47-47 Screw, 8-32 x 1/2”...

  • Page 40: Xl-E Hood

    XL-E HOOD PARTS Before ordering plumbing assembly or plumbing parts, NOTICE see the note on the next page. Complete Inlet Plumbing Assembly 05700-004-34-44 07610-003-92-84-R...
  • Page 41 XL-E HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, 115 V 05700-004-01-65 Control Box Assembly, 208 V 05700-004-16-66 Hood, Weldment 05700-004-08-68 Locknut, 1/4-20 with Nylon Insert 05310-374-01-00 Hood Support 05700-002-78-99 Bolt, 1/4-20 x 1/2” 05305-274-02-00 Washer, SS 1/4” 05311-174-01-00 Bracket, Cantilever Support 09515-003-15-64 Wear Button...

  • Page 42: Xl-E-Lth Hood

    XL-E-LTH HOOD PARTS Complete Inlet Plumbing Assembly 05700-004-49-05 07610-003-92-84-R...
  • Page 43 XL-E-LTH HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, XL-E-LTH 05700-004-49-01 Hood, Weldment 05700-004-08-68 Gasket, Air-gap 05330-002-14-48 Air-gap 05700-004-34-42 Nipple, 3/4" x 2" Brass 04730-207-46-00 Elbow, 3/4", 90-degree Brass 04730-206-13-00 Nipple, 3/4" x 1 3/8" Brass 04730-207-34-00 Solenoid Valve, 3/4”, 208/230 V 04810-100-03-18 Nipple, 3/4"...

  • Page 44: Xl Hh Hood

    XL HH HOOD PARTS Before ordering plumbing assembly or plumbing parts, NOTICE see the note on the next page. Complete Inlet Plumbing Assembly 05700-004-34-44 07610-003-92-84-R...
  • Page 45 XL HH HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, 115 V 05700-004-25-41 Control Box Assembly, 208 V 05700-004-30-24 Hood, Weldment 05700-004-24-96 Locknut, 1/4-20 with Nylon Insert 05310-374-01-00 Hood Support 05700-004-13-45 Bolt, 1/4-20 x 1/2” 05305-274-02-00 Washer, SS 1/4” 05311-174-01-00 Bracket, Cantilever Support 09515-003-15-64...

  • Page 46: Plumbing Options

    PLUMBING OPTIONS PARTS SHOCK ABSORBER (WATER ARRESTOR) OPTION Water Arrestor, 1/2” 06685-100-05-00 Machines with serial numbers NOTICE before 17C331529 have 1/2" here plumbing. Click to open the manual which shows the 1/2" plumbing. Tee, 3/4” x 3/4” x 1/2” 04730-211-06-00 Nipple, 3/4”...

  • Page 47: Xl-E/Xl-E-Lth Door

    XL-E/XL-E-LTH DOOR PARTS 24, 18 10 11 12 10, 11, 12 24 18 15 16 15, 16 23, 18 23 18 17, 18 21, 25 19, 11, 12 19 11 12 17 18 21 25 07610-003-92-84-R...
  • Page 48 XL-E/XL-E-LTH DOOR PARTS ITEM DESCRIPTION PART NUMBER Arm, Cantilever 05700-031-50-67 Spring Pin, 1/4” Dia. x 1 1/8” 05315-407-06-00 Yoke Assembly 05700-000-75-77 Cotter Pin 05315-207-01-00 Yoke 05700-000-75-78 Clevis Pin 05315-700-01-00 Nylon Washer 05311-369-03-00 Bushing 03120-100-03-00 Lock Nut, 3/8-16 SS (Not Shown) 05310-256-04-00 Rod, Spring Universal 05700-003-67-39...

  • Page 49: Xl Hh Door

    XL HH DOOR PARTS 07610-003-92-84-R...
  • Page 50 XL HH DOOR PARTS ITEM DESCRIPTION PART NUMBER Door, Front Outer 05700-004-14-21 Door, Left Outer 05700-004-14-19 Door, Right Outer 05700-004-14-17 Bracket, Door Connecting 05700-004-14-23 Handle, Door Front 05700-004-14-30 Plug, Cantilever 05340-011-35-00 Washer, 1/4-20 ID 05311-174-01-00 Locknut, 1/4-20 Low Profile with Nylon Insert 05310-374-02-00 Bolt, 1/4-20 x 1/2"...

  • Page 51: Wash Arms

    WASH ARMS PARTS Wash Arm Assembly 05700-003-59-35 2 per Machine ITEM DESCRIPTION PART NUMBER Bearing Assembly 05700-021-35-97 O-ring, 117-S70 Silicon 05330-002-60-69 Wash Arm End-cap 05700-011-35-92 Wash Arm 05700-003-57-70 07610-003-92-84-R...

  • Page 52: Wash Manifold

    WASH MANIFOLD PARTS ITEM DESCRIPTION PART NUMBER Bolt, 3/8-16 x 3/8" SS 05306-011-36-95 Casting, Upper Wash Manifold 05700-031-34-82 3/8" Lockwasher, SS 05311-276-01-00 3/8" Hex Nut, SS 05310-276-01-00 Bolt, 3/8-16 x 1 1/4" SS 05305-276-10-00 Lower Wash Manifold 05700-003-78-40 Gasket, Wash Manifold 05700-111-35-03 3/8"...

  • Page 53: Tub

    PARTS ITEM DESCRIPTION PART NUMBER Tub Assembly, XL-E/XL-E-LTH 05700-003-78-39 Tub Assembly, XL HH 05700-004-27-28 Rack Guide Assembly 05700-031-36-76 Bulkhead Fitting, 1/2” 04730-011-45-21 Clamp, Nylon 04730-011-39-01 Lock Nut, 10-24 05310-373-01-00 Wash Arm Assembly 05700-003-59-35 Bolt, 1/4-20 x 1/2” 05305-274-02-00 Lock Nut, 1/4-20 05310-374-01-00 Bolt, 1/4-20 x 1 1/8”...

  • Page 54: Wash Sump

    WASH SUMP PARTS ITEM DESCRIPTION PART NUMBER Pump & Motor Assembly See Pump & Motor page. Pump Drain Hose 05700-004-08-52 Clamp, 7/16” to 25/32” 04730-011-36-05 Sump Weldment 05700-003-78-41 Sump Gasket 05330-003-78-31 Lock Nut, 1/4-20 05310-374-01-00 Drain Solenoid, 115 V 04810-200-11-00 Drain Solenoid, 208/230 V 04810-111-87-74 Drain Link...

  • Page 55: Spillway

    SPILLWAY PARTS ITEM DESCRIPTION PART NUMBER Gasket, Spillway 05700-111-34-52 Spillway 05700-003-52-13 Lock Nut, 1/4-20 Hex with Nylon Insert 05310-374-01-00 Drain Link 05700-003-78-49 Connector, Drain Link 05700-004-53-23 Drain Seat 05700-004-37-18 07610-003-92-84-R...

  • Page 56: Pump & Motor

    PUMP & MOTOR PARTS Complete Assembly Complete Pump & LTH 3-Phase Only Motor Assembly See Motor Rotation section. 06105-004-24-80 Motor Only 06105-004-32-04 Parts Pump Dishcharge Hose (Not Shown) 05700-003-78-50 Hose Clamp, 1 5/16" to 2 1/4" S/S (Not Shown) 04730-719-18-00 (2 required) ITEM DESCRIPTION PART NUMBER...

  • Page 57: Xl-E-Lth Booster Tank

    XL-E-LTH BOOSTER TANK PARTS 07610-003-92-84-R...
  • Page 58 XL-E-LTH BOOSTER TANK PARTS ITEM DESCRIPTION PART NUMBER Complete Booster Tank Assembly 05700-004-52-09 Booster Tank 05700-004-52-23 Plate, Booster Tank Base 05700-004-48-90 Bracket, Booster Mount 05700-004-48-83 Bracket, Booster Tank 05700-004-52-08 Plumbing, Booster Inlet/Outlet 05700-004-52-28 Hose, Blue 3/4" x 45" 05700-004-52-27 Hose, Red 3/4" x 49" 05700-004-52-26 Washer, 1/4-20 05311-174-01-00...

  • Page 59: Frame

    FRAME PARTS ITEM DESCRIPTION PART NUMBER Frame Weldment 05700-003-78-38 Splash Shield 05700-004-01-54 Strainer 05700-004-09-08 Strainer Stop 05700-004-18-33 Accumulator 05700-004-08-39 Adjustable Foot 05340-108-01-03 Screw, 1/4-20 x 1 1/2" 05305-274-23-00 Locknut, 1/4-20 (Not Shown) 05310-374-01-00 Bolt, 1/4-20 x 3/8" 05305-274-20-00 Locknut, 1/4-20 Low Profile (Not Shown) 05310-374-02-00 05700-004-08-71 Front Dress Panel...

  • Page 60: Miscellaneous Parts

    MISCELLANEOUS PARTS PARTS Parts not shown to scale in relation to each other. Drain Stopper Assembly, XL-E/XL-E-LTH 05700-003-78-51 Bulk Head Fitting Drain Stopper Assembly, XL HH 04730-011-45-21 05700-004-27-31 Blue Chemical Tubing (120") 05700-011-37-17 Red Chemical Tubing (120") 05700-011-37-15 White Chemical Tubing (120") Ball Stopper 05700-011-37-13 05700-121-35-54...

  • Page 61: Schematics

    XL-E/XL HH 115 V, 60 HZ, 1-PHASE SCHEMATICS 07610-003-92-84-R...

  • Page 62: Xl-E/Xl Hh 208 V, 60 Hz, 1-Phase

    XL-E/XL HH 208 V, 60 HZ, 1-PHASE SCHEMATICS 07610-003-92-84-R...

  • Page 63: Xl-E-Lth 208/230 V, 60 Hz, 1/3 Phase

    XL-E-LTH 208/230 V, 60 HZ, 1/3 PHASE SCHEMATICS 07610-003-92-84-R...
  • Page 64 Jackson WWS, Inc. • 6209 N. US Hwy 25E • Gray, KY 40734 USA 1.888.800.5672 • www.jacksonwws.com Conserver XL-E/XL-E-LTH/XL HH Manual • 07610-003-92-84-R...
