pascom ZONE-120 Operation Manual page 5

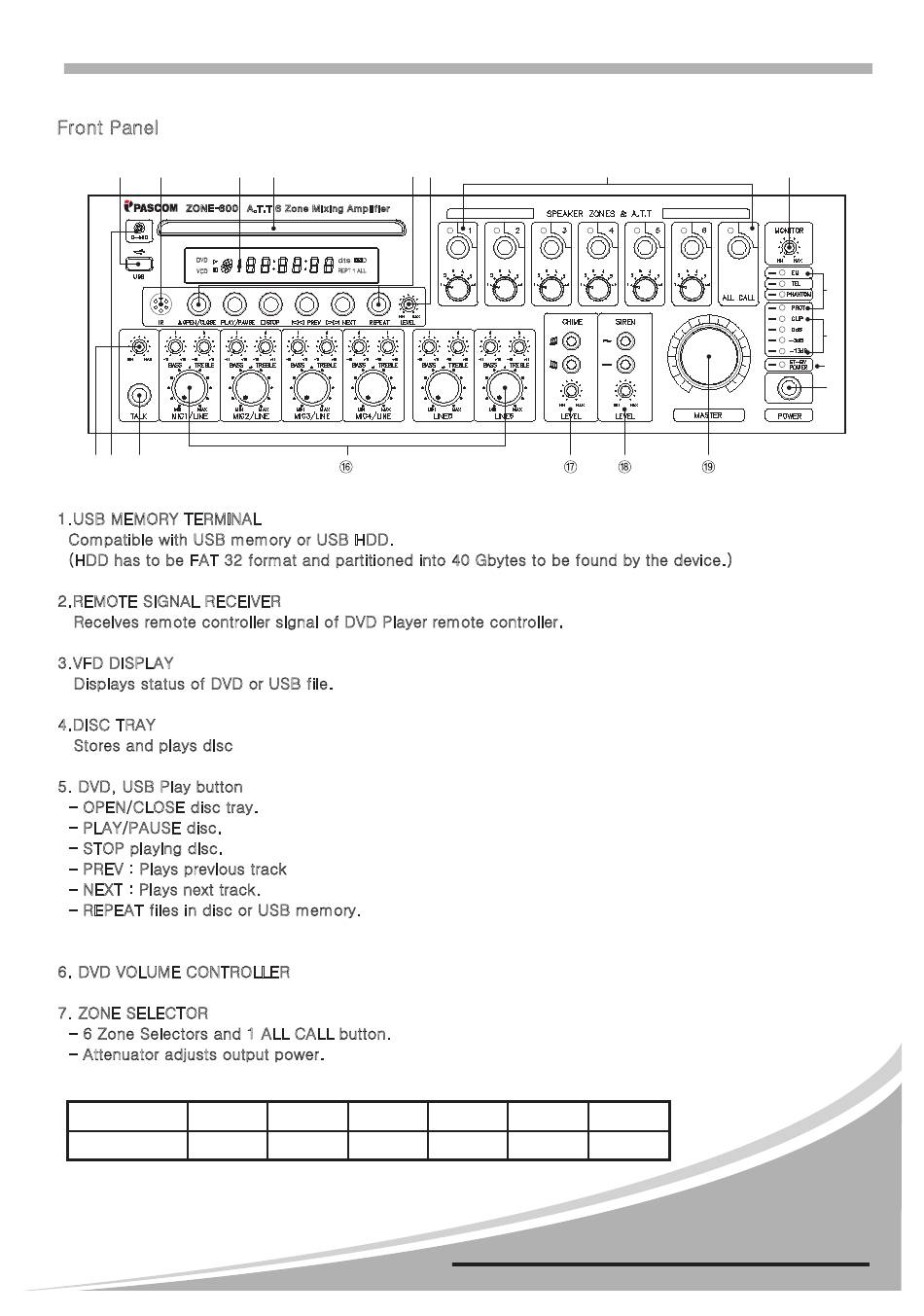

Front Panel
①
②
- 600
ZONE
⑬ ⑭ ⑮
1.USB MEMORY TERMINAL
Compatible with USB memory or USB HDD.
(HDD has to be FAT 32 format and partitioned into 40 Gbytes to be found by the device.)
2.REMOTE SIGNAL RECEIVER
Receives remote controller signal of DVD Player remote controller.
3.VFD DISPLAY
Displays status of DVD or USB file.
4.DISC TRAY
Stores and plays disc
5. DVD, USB Play button
- OPEN/CLOSE disc tray.
- PLAY/PAUSE disc.
- STOP playing disc.
- PREV : Plays previous track
- NEXT : Plays next track.
- REPEAT files in disc or USB memory.
6. DVD VOLUME CONTROLLER
7. ZONE SELECTOR
- 6 Zone Selectors and 1 ALL CALL button.
- Attenuator adjusts output power.
ATTENUATOR 1
8.9V
OUTPUT POWER
③ ④ ⑤ ⑥
A.T.T 6 Zone Mixing Amplifier
2 3
12.5V 25V
ATT 6 ZONE MIXING AMPLIFIER
⑦
4 5 6
50V 70V 100V
ZONE-120/240/360/480/600 .5
⑧
⑨
⑩
⑪
⑫
