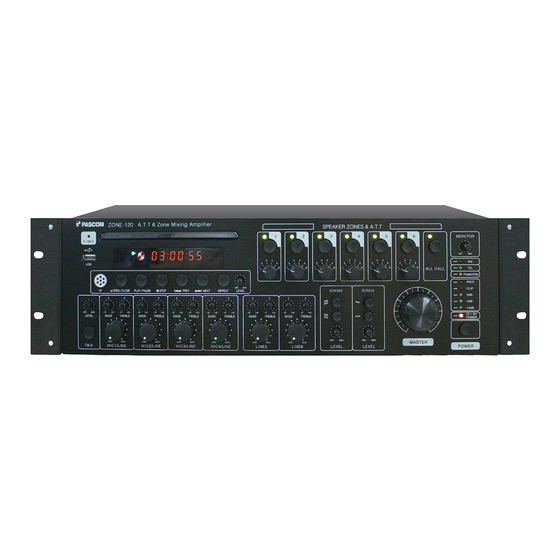

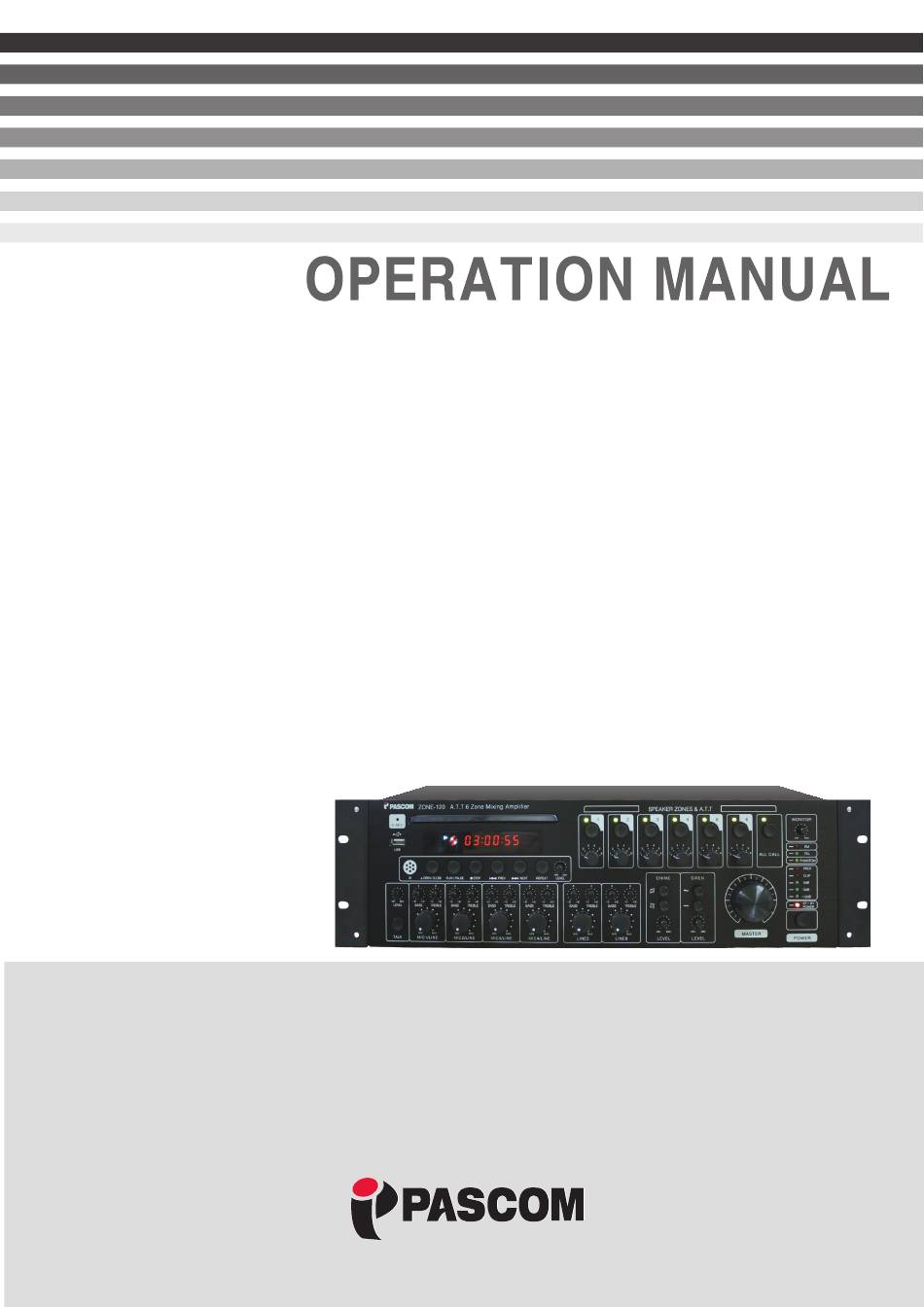

- Page 1 ZONE-120/240/360/480/600 A.T.T. 6 Zone Mixing Amplifier Better Communication Better Communication Better Communication Better Communication...
-
Page 2: Safety Precautions
- This is recommended to a fire. and a fire. extend device’s life. Keep the device away from Unplug the device when in Don’t use non-Pascom products To help ventilation and avoid water or humid area. thunderstorm. connected with ours. over-heating, install this device at least 5~10cm off from walls. - Page 3 This might cause provided cables only. This the same for all products. For damage to the device. helps performance. specific warranty information about warranty or service, contact Pascom co.,ltd directly or authorized distributor for your country or region.
-
Page 4: Special Function
2 type 4-tone Chime is provided to use before and after announcement. Convenient external chime terminal. ④ EMERGENCY ADDRESS Automatic fire evacuation address is released as fire signal is received from contact type fire signal receiver. ⑤ REMOTE POWER Power is turned on/off by convenient remote control. 4. ZONE-120/240/360/480/600... - Page 5 - NEXT : Plays next track. - REPEAT files in disc or USB memory. 6. DVD VOLUME CONTROLLER 7. ZONE SELECTOR - 6 Zone Selectors and 1 ALL CALL button. - Attenuator adjusts output power. ATTENUATOR 8.9V 12.5V 100V OUTPUT POWER ZONE-120/240/360/480/600 .5...
- Page 6 18. SIREN VOLUME In case of emergency, you can release siren and adjust its volume. (~) : undulating tone siren (-) : one tone siren 19. MASTER VOLUME CONTROLLER Controls the volume of finally mixed sound by individual adjustment. 6. ZONE-120/240/360/480/600...
-
Page 7: Rear Panel
- Bottom line: left side 485+,485- and GND for remote amplifier and other line signals. (Right side 485+ and 485- are not in use) - Connect CHIME with remote chime release button. ZONE-120/240/360/480/600 .7... -
Page 8: Power Input
Cables have to be diameter of 3.0mm or over, and length of 8m or less. (power loss ≤1V, FUSE is F3, F4 on POWER PCB) - Capacity Remarks: ZONE-120 : T10A/250V ZONE-240 : T20A/250V ZONE-360 : T15A/250V X 2 ZONE-480 : T20A/250V X 2 ZONE-600 : T25A/250V X 2 9. - Page 9 When ring signal is sent to INPUT terminal, ring tone will release to the selected zone. During ring signal INPUT, double check ZONE SELECTOR lamps. This will help avoid malfunction and operate system properly. You can adjust Ring signal volume by Chime Volume knob on front panel. ZONE-120/240/360/480/600 .9...
-
Page 10: Dvd Player Operation
ATT 6 ZONE MIXING AMPLIFIER DVD PLAYER OPERATION 10. ZONE-120/240/360/480/600... -
Page 11: Remote Controller
PROG : sort playlist by the title, chapter, or music ⑨ 1~10 : Select track to play. TIME : Displays proceeding/remaining time in current play. ⑩ OSD : Display caption on TV in configuration MUTE : Mute/unmute sound VOL + - : Controls the volume ZONE-120/240/360/480/600 .11... - Page 12 OFF ---> Repeat one ---> Repeat All ---> OFF ---> ..③ REPEAT ONE ☞ The selected track will be played back repeatedly. ④ REPEAT ALL ☞ All music of the inserted disc will be played back repeatedly. 12. ZONE-120/240/360/480/600...
- Page 13 ☞ It is adjusted by 1/2, 1/3, 1/4, 1/5, 1/6, 1/7 in 6 step as pressing the SLOW button. ZOOM Function - Enlarge/Reduce the picture screen by pressing the ZOOM button while playing DVD movies. ☞ It is adjusted by zoom2, zoom3, zoom4, zoom1/2, zoom1/3, zoom1/4 in 6 step as pressing the SLOW button. ZONE-120/240/360/480/600 .13...
- Page 14 You can play DIVX of AVI format. Clips might break up, play slowly or won't start according to capacity and resolution of each file. - Play JPG file You can play JPG images in USB memory or HDD. 14. ZONE-120/240/360/480/600...
-
Page 15: Receiver Rear Panel
6. Optical terminal 3. COAXAL jack 7. Component Jack for HD TV 4. Regular TV VIDEO jack ▶ By provided RCA cable, you can connect with receiver, amplifier or other stereo input Jack. Red into Right, White into Left. ZONE-120/240/360/480/600 .15... - Page 16 ▶ Yellow is for [VIDEO] jack, red is right sound channel for [R] jack, and white is left sound channel for [L] jack. In case of mono TV, either red or white is fine. ▶ Change TV mode to [EXTERNAL INPUT] mode by your TV remote controller. 16. ZONE-120/240/360/480/600...
- Page 17 Red into L, White into R. (Yellow is not used) ▶ Turn on TV and the device, change video mode on SETTING: [SYSTEM SETUP]☞ [VIDEO]☞[P-SCAN YPBPR]. If there is no signal, use device remote controller's [VIDEO MODE] button and change to [P-SCAN YPBPR] mode. ZONE-120/240/360/480/600 .17...
- Page 18 Pr/Cr COAX VIDEO S-VIDEO 5.1CH VIDEO Receiver rear panel 5.1IN ▶ Connect 5.1CH output signal with receiver as the picture above and enjoy spectacle 3D sound. ▶ Connector cable is not provided in this package. Please purchase separately. 18. ZONE-120/240/360/480/600...
-
Page 19: Specification
LINE ------------------------------------------------------------- Better than 70dB ■ TOTAL HARMONIC DISTORTION (on WTD 20KHz) ---------------------------- Less than 1 % ■ POWER SOURCE --------------------------------------------- ~AC 230V/50Hz, DC 24V ■ POWER CONSUMPTION ----------------------------------- ZONE-360 : 380W(1/8 POWER) ■ DIMENSION -------------------------------------------------- 482(W)x88(H)X340(D)mm ■ WEIGHT -------------------------------------------------------------------- 21 Kg ZONE-120/240/360/480/600 .19... - Page 20 ATT 6 ZONE MIXING AMPLIFIER NOTE. 20. ZONE-120/240/360/480/600...
- Page 21 Better Communication Better Communication MADE IN KOREA www.ipascom.com...
