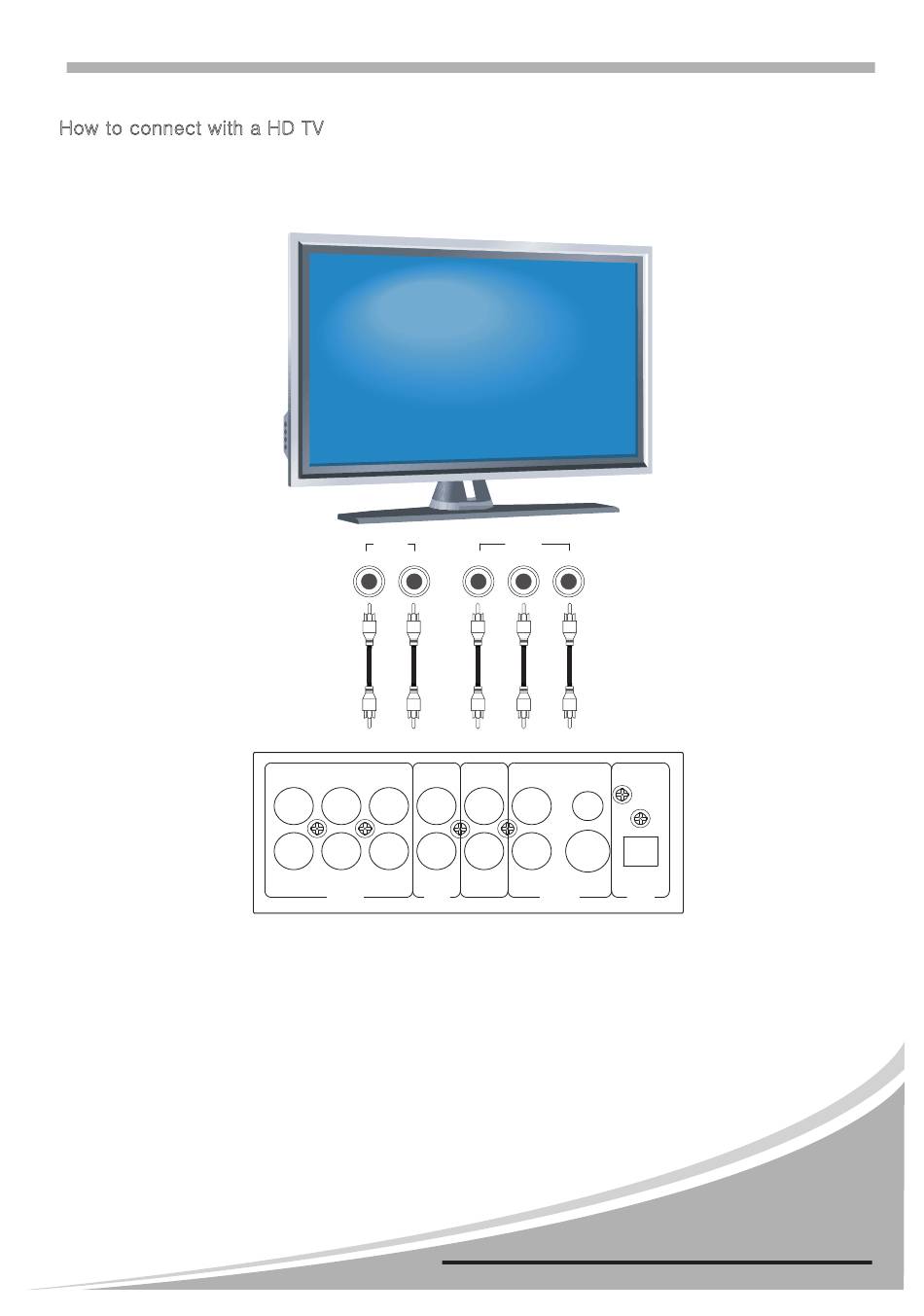

How to connect with a HD TV
◆ Make sure that this device and TV are both turned off and unplugged.
◆ In case of component connection, change video setting to [COMPONENT]mode.
You can adjust on [SETTING] or by using device remote controller's [VIDEO MODE] button.
▶ Plug in each connector into relevant component jack on rear panel of the device.
Green into Y, blue into Pb/Cb, Red into Pr/Cr.
▶ Plug in 3 colored RCA connector cable into 2CH jack on rear panel of the device.
Red into L, White into R. (Yellow is not used)
▶ Turn on TV and the device, change video mode on SETTING: [SYSTEM SETUP]☞
[VIDEO]☞[P-SCAN YPBPR]. If there is no signal, use device remote controller's
[VIDEO MODE] button and change to [P-SCAN YPBPR] mode.
