pascom ZONE-120 Operation Manual page 16

ATT 6 ZONE MIXING AMPLIFIER

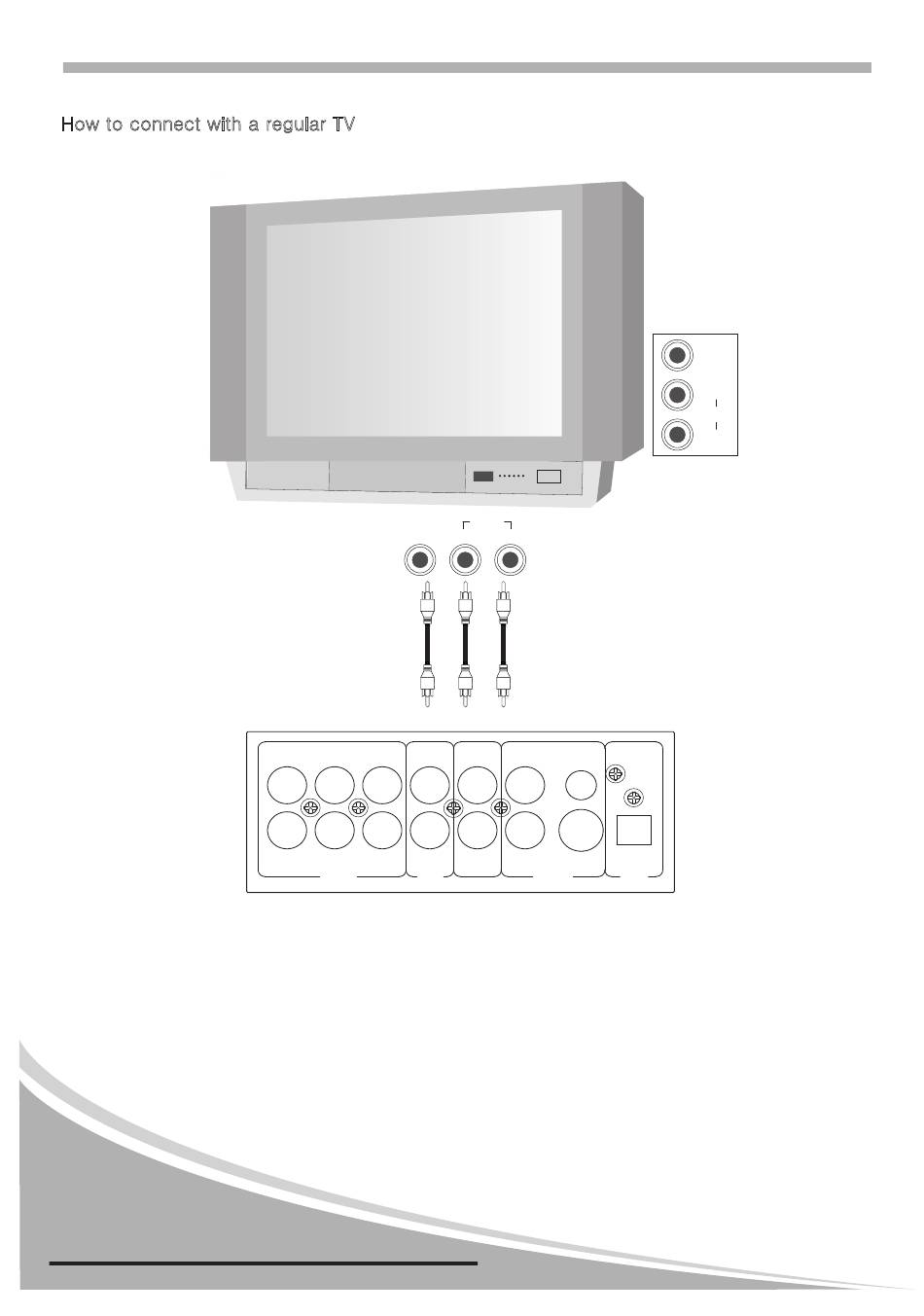

How to connect with a regular TV
◆ Make sure that this device and TV are both turned off and unplugged.
▶ Plug in 3-colored RCA connector cable into female jack on the rear panel of the device.
▶ Yellow is for [VIDEO] jack, red is right sound channel for [R] jack, and white is left
sound channel for [L] jack. In case of mono TV, either red or white is fine.
▶ Change TV mode to [EXTERNAL INPUT] mode by your TV remote controller.
16. ZONE-120/240/360/480/600
VIDEO
White
Yellow
FL CEN SL L
FR SUB SR R
5.1CH 2CH
SOUND
Red
L R
Y Pb/Cb Pr/Cr
COAX VIDEO S-VIDEO
VIDEO OPT
VIDEO
L
SOUND
R
