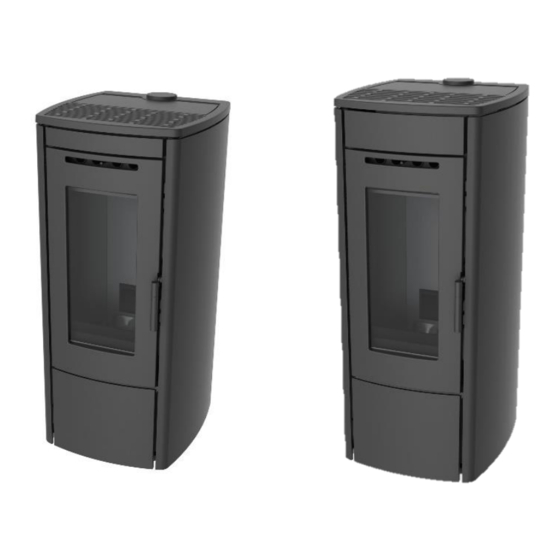

Pellet-burning stove
Hide thumbs Also See for SOFT 80:
Table of Contents

Advertisement

Quick Links

ENGLISH
Main Revision 1.0
FPH_supplement: 001
SOFT 80,
SOFT 100
pellet-burning
stove
INSTALLATION, USE AND
MAINTENANCE, USEFUL ADVICE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOFT 80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for klover SOFT 80

Summary of Contents for klover SOFT 80

  • Page 1 SOFT 80, ENGLISH SOFT 100 Main Revision 1.0 FPH_supplement: 001 pellet-burning stove INSTALLATION, USE AND MAINTENANCE, USEFUL ADVICE...
  • Page 3 Ref. Annex III EU Regulation no. 305/2011 DoP/KLOVER-048 Identification number : S80 Model and/or lot no. and/or serial no. (Art.11-4) : SOFT 80 Intended use of the product according to the : Wood pellet-fired domestic heating appliance relevant harmonised technical specification KLOVER s.r.l.
  • Page 4 Intended use of the product according to the : Wood pellet-fired domestic heating appliance relevant harmonised technical specification KLOVER s.r.l. Name or trademark of the manufacturer (Art11-5) I - 37047 San Bonifacio (VR) – Via A. Volta, 8 Name and address of the representative (Art.12-2)

  • Page 5: Table Of Contents

    INTRODUCTION ................................. 3 ........................... 3 MPORTANT SAFETY INSTRUCTIONS THE MACHINE AND THE PELLETS ..........................4 ............................. 4 OMPONENTS OF THE APPLIANCE SOFT 80 ............................6 VERALL DIMENSIONS SOFT 100 ............................. 7 VERALL DIMENSIONS SOFT 80 ....................... 8 ECHNICAL SHEET FOR...

  • Page 6: Contents

    STANDARD WARRANTY CONDITIONS ......................... 49 Dear Customer, first of all, we would like to thank you for choosing a “KLOVER” product and hope that you will be fully satisfied with your purchase. Carefully read the warranty certificate on the last page of this User guide.

  • Page 7: Introduction

    - The appliance’s installation and initial start-up must be performed by skilled personnel trained in the relevant safety standards, who are responsible for the definitive installation of the appliance and its efficient operation. KLOVER S.r.l. shall not be held liable if these precautions are not observed.

  • Page 8: The Machine And The Pellets

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 KLOVER S.R.L. DECLINES ALL LIABILITY IN CASE OF ACCIDENTS DUE TO FAILURE TO COMPLY WITH THE SPECIFICATIONS OF THIS MANUAL. KLOVER S.R.L. DECLINES ALL LIABILITY DUE TO INCORRECT USE OF THE PRODUCT BY THE USER, UNAUTHORISED MODIFICATION AND/OR REPAIRS, AND USE OF NON-ORIGINAL SPARE PARTS OR SPARE PARTS NOT SPECIFICALLY DESIGNED FOR USE ON THIS PRODUCT MODEL.
  • Page 9 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Smoke outlet top configuration. Intake pipe. Smoke outlet rear configuration. Support panel. Safety thermostat with manual reset. Wi-Fi information T.ROOM terminal (MAC address and Room thermostat registration code). connection. Anti-interference filter...

  • Page 10: Overall Dimensions Soft 80

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Overall dimensions SOFT 80...

  • Page 11: Overall Dimensions Soft 100

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Overall dimensions SOFT 100...

  • Page 12: Technical Sheet For Soft 80 Connections

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Technical sheet for SOFT 80 connections REAR VIEW Description of connections A = Intake pipe 50 mm Sb = Rear flue gas outlet 80 mm M Su = Upper flue gas outlet...

  • Page 13: Technical Sheet For Soft 100 Connections

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Technical sheet for SOFT 100 connections REAR VIEW Description of connections A = Intake pipe 50 mm Sb = Rear flue gas outlet 80 mm M Su = Upper flue gas outlet...

  • Page 14: Technical Specifications Soft 80

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Technical specifications SOFT 80 Nominal heat input kW (Kcal/h) 8,01 (6.889) Reduced heat input kW (Kcal/h) 2,70 (2.322) Nominal heat output kW (Kcal/h) 7,41 (6.373) Reduced heat output kW (Kcal/h) 2,55 (2.193)

  • Page 15: Technical Specifications Soft 100

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Technical specifications SOFT 100 Nominal heat input kW (Kcal/h) 10,3 (8.858) Reduced heat input kW (Kcal/h) 2,7 (2.322) Nominal heat output kW (Kcal/h) 9,56 (8.222) Reduced heat output kW (Kcal/h) 2,55 (2.193)

  • Page 16: Requirements Of The Place Of Installation

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Good quality pellets should have the following properties: - Constant-diameter cylinders with a smooth, shiny surface; - Low amount of sawdust inside the packages; - After grabbing a bunch of pellets and placing them into a container filled with water, good quality pellets will sink and poor quality ones will tend to float;...

  • Page 17: Spaces Around And Above The Appliance

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Spaces around and above the appliance The figure below shows the minimum distances from walls or other not-easily-removable furniture, that need to be taken into consideration when positioning the appliance.
  • Page 18 Figura A Chimney and Flue pipe The chimney is essential to the efficient operation of a Klover appliance. The chimney should be designed and constructed according to these instructions, and relevant regulations including Building Regulations Approved Document Shape and size of chimney: A round chimney of 125mm diameter is recommended. 125mm is also the minimum diameter which should be used.
  • Page 19 EN - Rev. 2.2 SOFT 80, SOFT 100 PELLET-BURNING STOVE SMART 120 PELLET BOILER COOKER EN - Rev. 1.0 Orientation and initial vertical rise: The flue system should run as vertically as possible as any deviations off the vertical can adversely affect the draw. 45º is the maximum off-vertical angle than may be used. Non-vertical sections should make up no more than ¼...
  • Page 20 EN - Rev. 2.2 EN - Rev. 2.2 SOFT 80, SOFT 100 PELLET-BURNING STOVE SMART 120 PELLET BOILER COOKER SMART 120 PELLET BOILER COOKER EN - Rev. 1.0 Height and draught: In order for the appliance to perform satisfactorily the chimney height must be sufficient to ensure a draught of 12 Pa so as to clear the products of combustion and prevent smoke problems into the room.

  • Page 21: Electrical Connection

    Do not pass electrical cables in the immediate vicinity of the flue gas pipe, unless they are insulated with suitable materials. KLOVER S.r.l. declines all responsibility for injury to persons and animals or damage to objects due to failure to earth the appliance or to comply with IEC specifications.

  • Page 22: Description Of Components

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 DESCRIPTION OF COMPONENTS Remote control Display Button 1 – INCREASE Button 5 – ESC Button 2 – DECREASE Button 4 – SET Button 3 – ON/OFF The remote control must be powered by 3 x 1.5 V AAA batteries (model LR03 / MN2400); the battery life depends on how frequently the remote control is used.

  • Page 23: Support Panel

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Support panel LED 6 – WI-FI LED 4 – RECEPTION LED 5 – ALARM LED 3 – POWER STATUS Button 2 – POWER LED 2 – POWER STATUS Serial connection for remote control LED 1 –...

  • Page 24: Display

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 The support panel allows for managing the basic functions concerning the appliance’s operation when there is no remote control. The following operations can therefore be carried out: - SWITCHING ON/OFF: by pressing and holding button 1 (On/Off) for 2 seconds - WORKING POWER CHANGE: whenever button 2 (Power) is pressed, the working power can be varied by selecting one of the three available power levels (1, 3 or 5).

  • Page 25: The Menu

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 THE MENU Pressing button 4 (Set) of the remote control allows for accessing the menu. The menu is divided into various items and levels that allow for accessing the settings and programming options of the appliance.
  • Page 26 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 The image below shows the display when the timer is enabled: Enable field  Sub-menu 02 – 02 – Daily chrono Allows for enabling, disabling and setting the daily programme functions.
  • Page 27 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0  Sub-menu 02 – 03 – Weekly chrono Allows for enabling, disabling and setting the weekly timer functions. The weekly timer has four time slots delimited by the set times, as shown in the following diagram (they do not have to...
  • Page 28 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0  Sub-menu 02 – 04 – Week-end chrono Allows for enabling, disabling and setting the weekend timer functions (applies to Saturday and Sunday). Switch-on time (OFF signals to the clock to...
  • Page 29 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 The table below indicates the settings with the relevant meaning: Menu Meaning Settable values * BOARD BEEPS Enables/disables the beep sound on the power PCB ON – OFF BACKLIGHT ON Regulates the duration of display illumination 2 –...
  • Page 30 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Indicates the status of the brazier cleaner. G.A.S. (OFF = Contact OPEN = Brazier not aligned) (ON = Contact CLOSED = Brazier aligned) Indicates the status of the pellet level sensor inside the tank.

  • Page 31: Initial Settings

    Connection to the Wi-Fi network The appliance is equipped with a Wi-Fi board that enables it to be remotely controlled via the “My Klover” Web app, which can be downloaded to smartphones, tablets or PCs from various stores (Apple, Android, etc.).
  • Page 32 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 4. Open the current browser (Internet Explorer, Firefox, Safari, etc.) used by the device and enter the following address in the address bar: http://192.168.1.1 . 5. The home page of the Wi-Fi module will open up (Welcome to WiFiMi Setup). Select the language to be used for the successive Wi-Fi module configuration menus.
  • Page 33 (Apple, Android, etc.). 11. Return to the home page of the “My Klover” app and access your account by entering the credentials (e-mail address and password) previously used for the registration phase. You can now add a new appliance by clicking in the “Add...

  • Page 34: Commissioning

    12. At this point, the appliance will be added and can be managed through the Web app from any device (PC / tablet / smartphone) connected to the Internet. It can be accessed from the address http://appwifi.klover.it/it/ or via the “My KLOVER” app, which can be downloaded from various stores (Apple, Android, etc). COMMISSIONING Initial start-up Perform the following operations: - Connect the appliance to the electrical system using the cable provided;...

  • Page 35: Ignition Cycle

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Ignition cycle Prolonged pressing of button 3 (On/Off) on the remote control or of button 1 (On/Off) on the support panel allows for switching the appliance on. The ignition cycle can last maximum 20–25 minutes and is divided into five steps:...

  • Page 36: Modifying The Power Set-Point

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 - By pressing button 3 (On/Off) or waiting a few seconds without confirming, the set value is not saved. During this operation, the display will appear as shown below: SET ROOM...

  • Page 37: Problems, Alarms, Useful Advice

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 During this operation, the display will appear as shown below: SET AIR (speed of the frontal air fan) PROBLEMS, ALARMS, USEFUL ADVICE Useful info… Listed below is some important information regarding the appliance: - It is normal for the appliance to emit a smell of paint during its first few days of operation.

  • Page 38: Alarm Signals

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 ...the pellet tank cover is open or not properly closed If the pellet tank cover is left open or not properly closed, pellet loading will not start and the appliance will not switch on.

  • Page 39: Cleaning And Maintenance

    Every alarm causes the appliance to switch-off immediately. The alarm status is reached after the time set on Pr11 (set by default to 90 sec.) and can be reset by pressing and holding button 3. In case of anomalies, contact the Klover authorised Technical Assistance Centre. CLEANING AND MAINTENANCE...
  • Page 40 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Use the appropriate cleaning hook for the front scraper to pull out the front rod and then move it forward and backwards to clean off combustion residues from the air exchanger (Figure 1).
  • Page 41 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Vacuum the ash deposited inside the brazier (Figure 5) and outside of it (Figure 6). If necessary, scrape the bottom to eliminate any combustion residues. WARNING: use suitable ash vacuum devices equipped with a fine-mesh filter in order to prevent ash from being blown into the room and damages to the vacuum cleaner.

  • Page 42: Non-Routine Cleaning

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Vacuum any residues inside the ash box compartment (Figure Reassemble all the previously removed components, making sure that the seals guarantee perfect tightness. Non-routine cleaning Non-routine cleaning of the appliance must be done at least every 30 days so as to always guarantee its efficient performance and optimal operation.

  • Page 43: Annual Cleaning

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 To ensure correct operation, it is necessary to remove the sawdust deposited on the bottom of the tank (Figure 12) least once every 30 days. The pellet tank must be emptied at the end of every season.
  • Page 44 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Loosen the two screws shown in the picture (Figure 14) and dismantle the two RH and LH side panels (Figure 15). Remove the cover of the cast iron top (Figure...
  • Page 45 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Use a pipe cleaner or a vacuum cleaner to remove any dust residues from the cast iron heat exchanger (Figure 18). Remove the cast iron heat exchanger (Figure 20), by loosening the 4 nuts shown in the picture (Figure 19).
  • Page 46 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Use a steel scraper to scrape the side walls of the stove (Figure 21) and the inner walls of the cast iron heat exchanger (Figure 22) then vacuum the residues.

  • Page 47: Cleaning The Vermiculite Components

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Cleaning the vermiculite components The vermiculite panels do not require any special maintenance. If necessary, they must be dusted gently using a brush only. To avoid jeopardising their durability, they must not be cleaned using abrasive sponges, wet cloths or the tube of the ash vacuum device placed directly in contact with it.

  • Page 48: Cleaning The Glass-Ceramic Panel

    It is necessary to periodically check the seals as they guarantee air- and water-tightness of the appliance and its efficient operation; if they are worn or damaged, they must be replaced immediately by contacting a Klover authorised Technical Assistance Centre.

  • Page 49: Pcb Parameters

    The following parameters are already stored when the appliance is tested directly in the factory; these parameters stem from rigorous tests using several types of pellets and must not be modified without the authorisation of Klover S.r.l. to avoid impairing the appliance’s operation.
  • Page 50 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 “FACTORY SETTINGS” parameters - Model S80 (L09_161018) Database Parameter Menu level Description Display wording Measurement Value field Pr01 M10 – 05 – 01 Ignition cycle maximum time START TIME Minutes 5 –...

  • Page 51: Parameter Tables Soft 100

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 Parameter tables SOFT 100 “CLEANER SETTINGS” parameters - Model S100 (L09_161018) Database Parameter Menu level Description Display wording Measurement Value field Pr51 M10 – 01 – 01 ON time for brazier cleaning gearmotor...
  • Page 52 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 “FACTORY SETTINGS” parameters - Model S100 (L09_161018) Database Parameter Menu level Description Display wording Measurement Value field Pr01 M10 – 05 – 01 Ignition cycle maximum time START TIME Minutes 5 –...

  • Page 53: Wiring Diagram

    SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0 WIRING DIAGRAM COMPONENT KEY: LEGENDA COMPONENTI: LEGENDA DISPOSITIVI DI SICUREZZA: SAFETY DEVICES KEY: M1 = Auger gearmotor M1 = Motoriduttore coclea ALp = Micro chiusura porta fuoco ALp = Fire door closure micro-switch...

  • Page 54: Standard Warranty Conditions

    The Klover Warranty will remain valid for 2 years from the date of purchase of the Product, if proven by a delivery note or other fiscally valid document (e.g. receipt), stating the name of the seller, the product purchased and the date of purchase.
  • Page 55 Consumer in such cases. Klover S.r.l. declines all liability for any damages that may be caused, directly or indirectly, to the Consumer and/or to a third party or to persons, animals or property as a result of failure to comply with all the relevant instructions concerning installation, use and maintenance of the Product.
  • Page 56 SOFT 80, SOFT 100 PELLET-BURNING STOVE EN - Rev. 1.0...
  • Page 57 Cod. CS.IST.S80-EN KLOVER S.r.l. Via A. Volta, 8 37047 San Bonifacio (VR) VAT No. 02324280235 www.klover.it...

This manual is also suitable for:

Soft 100
