JDW ZQ563 Instruction Manual

18v cordless hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

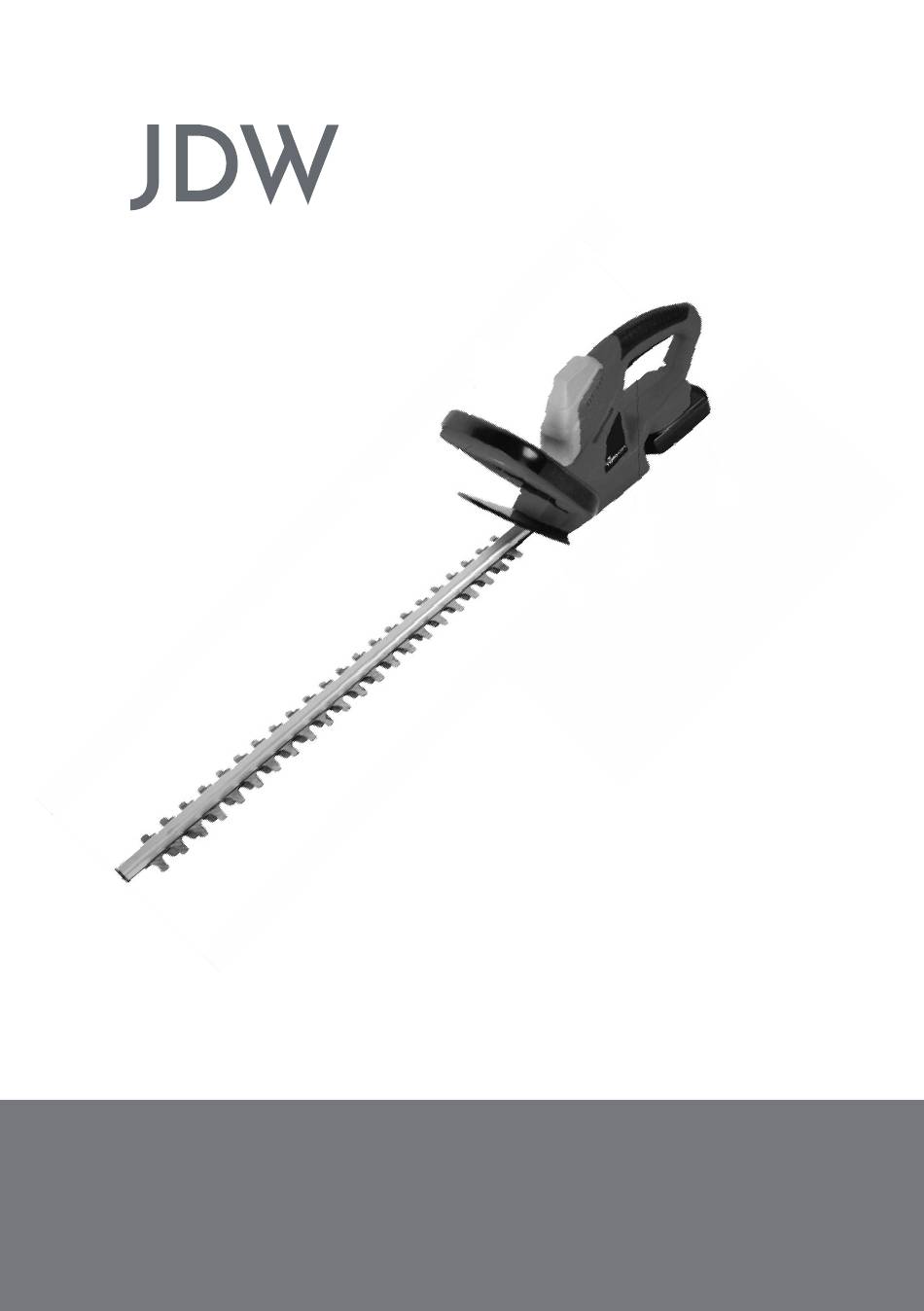

ZQ563 08102018
18V Cordless Hedge Trimmer
Instruction Manual
1
Model Ref: ZQ563

Advertisement

Table of Contents
loading

Related Manuals for JDW ZQ563

Summary of Contents for JDW ZQ563

  • Page 1 ZQ563 08102018 18V Cordless Hedge Trimmer Instruction Manual Model Ref: ZQ563...

  • Page 2: Table Of Contents

    INTRODUCTION Thank you for choosing this Cordless Hedge Trimmer. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your device. Remove all packaging material.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 4: Personal Safety

    or entangled cords increase the risk of electric shock. - When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. - If operating a power tool in a damp location is unavoidable, use a residual current device (RCD with a tripping current of 30 mA or less) protected supply.
  • Page 5 unexpected situations. - Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 6 Service - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SPECIAL SAFETY REQUIREMENTS For outdoor use only. Do not use when it is raining. Check that the ventilation slots are not blocked.

  • Page 7: Safety Instructions For The Battery And Charger

    SPECIAL SAFETY INSTRUCTIONS FOR THE BATTERY AND CHARGER - Check that the battery is clean and dry before connecting it into the charger or placing it into the hedge trimmer. Store and use the charger at temperatures between 1 O and 40 °C only.
  • Page 8 Charging - Charge the battery fully before using the hedge trimmer for the first time. - If you have recently used the hedge trimmer and the battery is warm or hot, allow it to cool before charging it. - Press in the battery lock on the battery (3). Remove the battery.

  • Page 9: Product Overview

    PRODUCT OVERVIEW Protective shield On/off switch Battery Support grip Blade/cutter Handle Charger Safety contact...

  • Page 10: Before First Use

    BEFORE FIRST USE WARNING! Remove the battery pack before any installation or cleaning the tool. - Always release the On/Off switch before insertion or removal of the battery pack. - To remove the battery pack, depress the button on end of the battery pack, and then remove the pack from the tool.

  • Page 11: Maintenance And Storage

    - Move the hedge trimmer from side to side with even movements to cut the hedge. Use Information - Always start from the bottom and side, and repeat the movement over the same area if the foliage is very thick. - Be very careful when cutting near walls, thick branches, wire fencing or other obstacles.

  • Page 12: Specification

    SPECIFICATION Charger Voltage 100-240V ~50-60Hz Output Voltage DC 22V Battery Voltage 18 V Li-Ion, 1,300 mAh Product Blade Length 510mm Max Cutting Diameter 15mm Charging Time 3-5 hours Operating Time (Fully Charged) 45 minutes...
  • Page 13 DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE APPLIANCE IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, the Pressure Washer must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 14 JD Williams Ltd. Manchester, UK, M60 6ES M606ESO1...
