JDW ZQ562 Instruction Manual

18v cordless trimmer
Hide thumbs

Advertisement

Quick Links

Download this manual

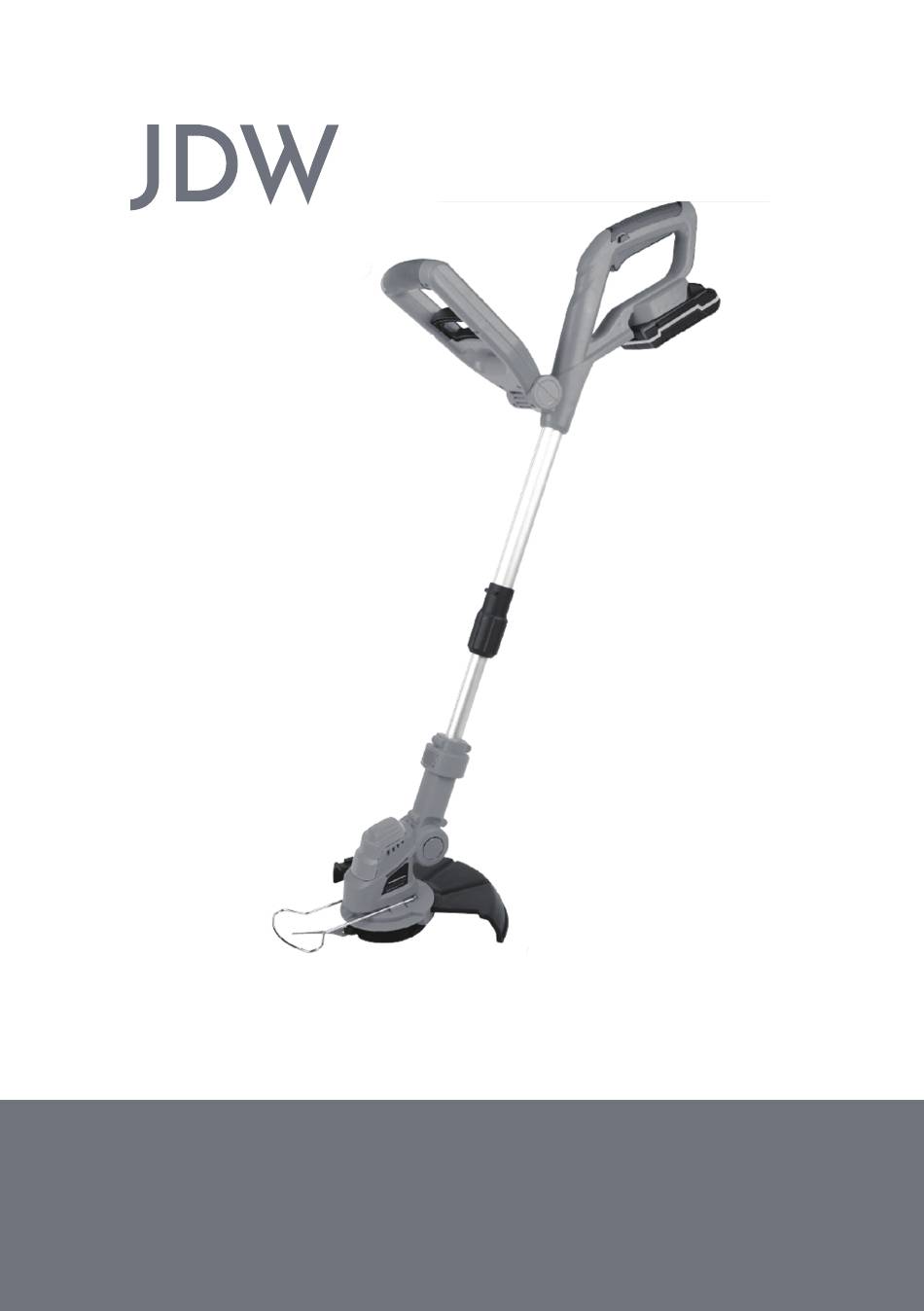

ZQ562 03102018
18V Cordless Trimmer
Instruction Manual
1
Model Ref: ZQ562

Advertisement

loading

Related Manuals for JDW ZQ562

Summary of Contents for JDW ZQ562

  • Page 1 ZQ562 03102018 18V Cordless Trimmer Instruction Manual Model Ref: ZQ562...

  • Page 2: Table Of Contents

    INTRODUCTION Thank you for choosing this Cordless Trimmer. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your device. Remove all packaging material. You may wish to keep the packaging for future use or storage of your device.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING - Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 - When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. - If operating a power tool in a damp location is unavoidable, use a residual current device (RCD with a tripping current of 30 mA or less) protected supply.
  • Page 5 - Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. - If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 6: Special Safety Instructions

    Service - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. SPECIAL SAFETY INSTRUCTIONS - Wear safety goggles when operating this tool. - Wear gloves when operating this tool.
  • Page 7 - Keep hands and feet away from the cutting are at all times and especially when switching on the motor; - Guard against injury from the cutting blade fitted for trimming the filament line length. After extending new cutting line always return the trimmer to its normal operating position before switching on;...

  • Page 8: Safety Warnings For Chargers And Battery

    SAFETY WARNINGS FOR CHARGERS AND BATTERY Battery - Never attempt to open for any reason. - Do not expose to water. - Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire.
  • Page 9 Chargers - Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18-24C. Do not charge the battery pack in a very low or very high air temperature. - The Charger’s plug must match the outlet. Never modify the plug in any way.

  • Page 10: Product Overview

    PRODUCT OVERVIEW...
  • Page 11 ASSEMBLING YOUR UNIT (Instructions Below)

  • Page 16: Using Your Unit

    USING YOUR UNIT NOTE: Before using the tool, read the instruction book carefully. Intended Use This grass trimmer is designed for cutting grass and similar soft vegetation and for trimming grass edges in private and hobby garden areas which are not accessible with a lawnmower. This device is not allowed to be used in public gardens, parks, sports centres or at roadsides as well as in agriculture and forestry.
  • Page 17 Adjusting The Height (See Fig. 9, 10) Unscrew the Height Adjustment Locking knob (10) in the direction indicated to unlock, turn it clockwise. Adjust the length of the Aluminum tube to the most comfortable length. Tighten the Height Adjustment Locking knob (10) in the direction indicated to lock, turn it counterclockwise.
  • Page 18 battery pack from the charger and allow time for the battery to cool down before recharging. The battery in your new tool is not charged when it leaves the plant. Therefore it must be full charged before using the first time.
  • Page 19 NOTE: When removing the battery pack, hold it firmly to avoid potential accidents. Safety On/Off Switch (See Fig. 22) The safety switch is locked off to prevent accidental starting. Depress the lock-off button (3) then depress the on/off switch (4) and release lock off button.
  • Page 20 Trimming (See Fig. 23) Position the trimmer head as shown for trimming. Keep the bottom of the trimmer head just above the ground and at an angle. Allow only the tip of plastic cutting blade to make contact. Do not force plastic cutting blade into work area.

  • Page 21: Maintenance And Storage

    Battery Indicators (See Fig. 26) NOTE: The indicators give a general picture of the batterys actual charge status. The percentages below should therefore be considered as approximate indicators. The readings from the two different indicators can differ somewhat from each other. One battery indicator is found on the battery.

  • Page 22: Specification

    SPECIFICATION Type KG711-1180LI Voltage 18VDC Battery type Lithium-Ion No load speed 8000 /min Cutting width 250/220/250mm Battery capacity 1.5 Ah Charging time Approx. 4 Hours Weight (kg) 2.3Kg Sound pressure level 75 dB(A) Uncertainty KpA= 3.0 dB Guaranteed sound pow- er level(in accordance with 93 dB(A) 2000/14/EC)
  • Page 23 DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE APPLIANCE IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, the Pressure Washer must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 24 JD Williams Ltd. Manchester, UK, M60 6ES M606ESO1...
