Notes on positioning the Nordmann AT4 D SPA Display

Please observe the following notes for the correct positioning of the Nordmann AT4 D SPA Display:
– The Nordmann AT4 D SPA Display must not be installed in hazardous locations and in rooms where
water splashes may occur.
– Do not mount the Nordmann AT4 D SPA Display inside the steam bath cabin, sauna, bio sauna, etc.
– If possible mount the Nordmann AT4 D SPA Display at eye level.
– Do not mount the Nordmann AT4 D SPA Display in exposed places.
– Do not mount the Nordmann AT4 D SPA Display on vibrating components.
4.4

Mounting the Nordmann AT4 D SPA Display

CAUTION!
The electronic components of the Nordmann AT4 D SPA Display are very sensitive to electrostatic
discharge. For all installation work on equipment appropriate measures must be taken to protect these
components against damage caused by electrostatic discharge (ESD protection).
4.4.1

Flush mounting

1. At the desired location, mark mounting opening according to the size of the flush-mounted housing
with the help of a spirit level, then ream out the mounting opening.
Important: the mounting opening must be reamed out exactly since the decoration cover (broken
line in Fig.
and on the top and bottom side only 8.5 mm.
m
9 m

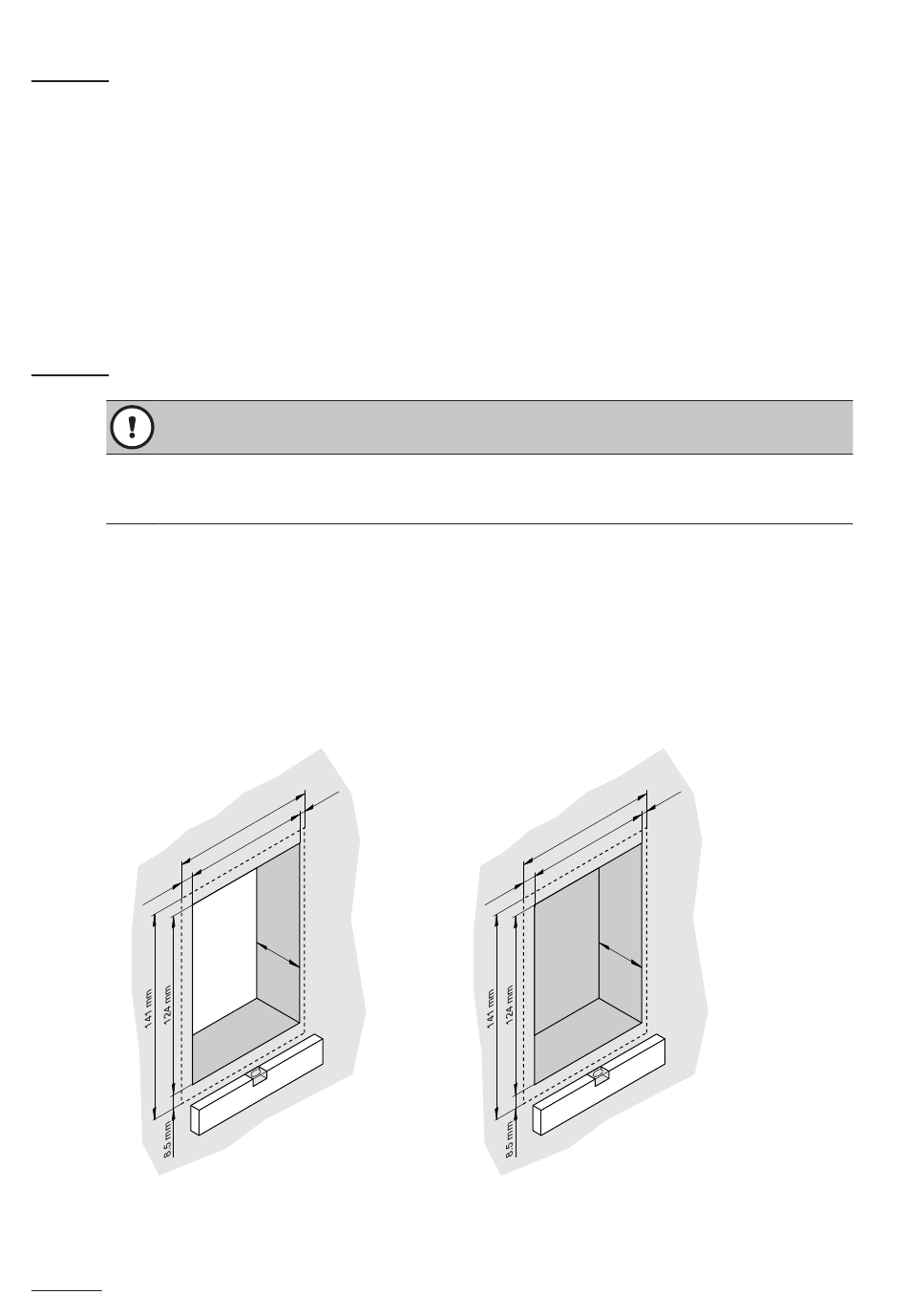

Fig. 5: Making the mounting opening for the flush-mounted housing
10
5) overlaps the mounting opening on the right side only 4 mm, on the left side only 9 mm
m
4 m
m
0 m
1 0
m m
8 7
Cavity wall
Tmin: 15 mm
T
4 m
m
0 m
1 0
m m
8 7
m
9 m
T
m
Massive wall
Tmin: 35 mm
