SUSPENZ 7801BSZ Manual

Suspenz 8725 Roswell Road, Suite O-220, Atlanta, gA USA 30350
®
WARNINg! Strictly follow all instructions to avoid an accident, damage to property,
personal injury or death.
WARNINg! This product is not to be used for human suspension. components may fail
causing person to fall, possibly resulting in serious injury or death.
save time! Read the entiRe manual befoRe beginning hoisteR installation.

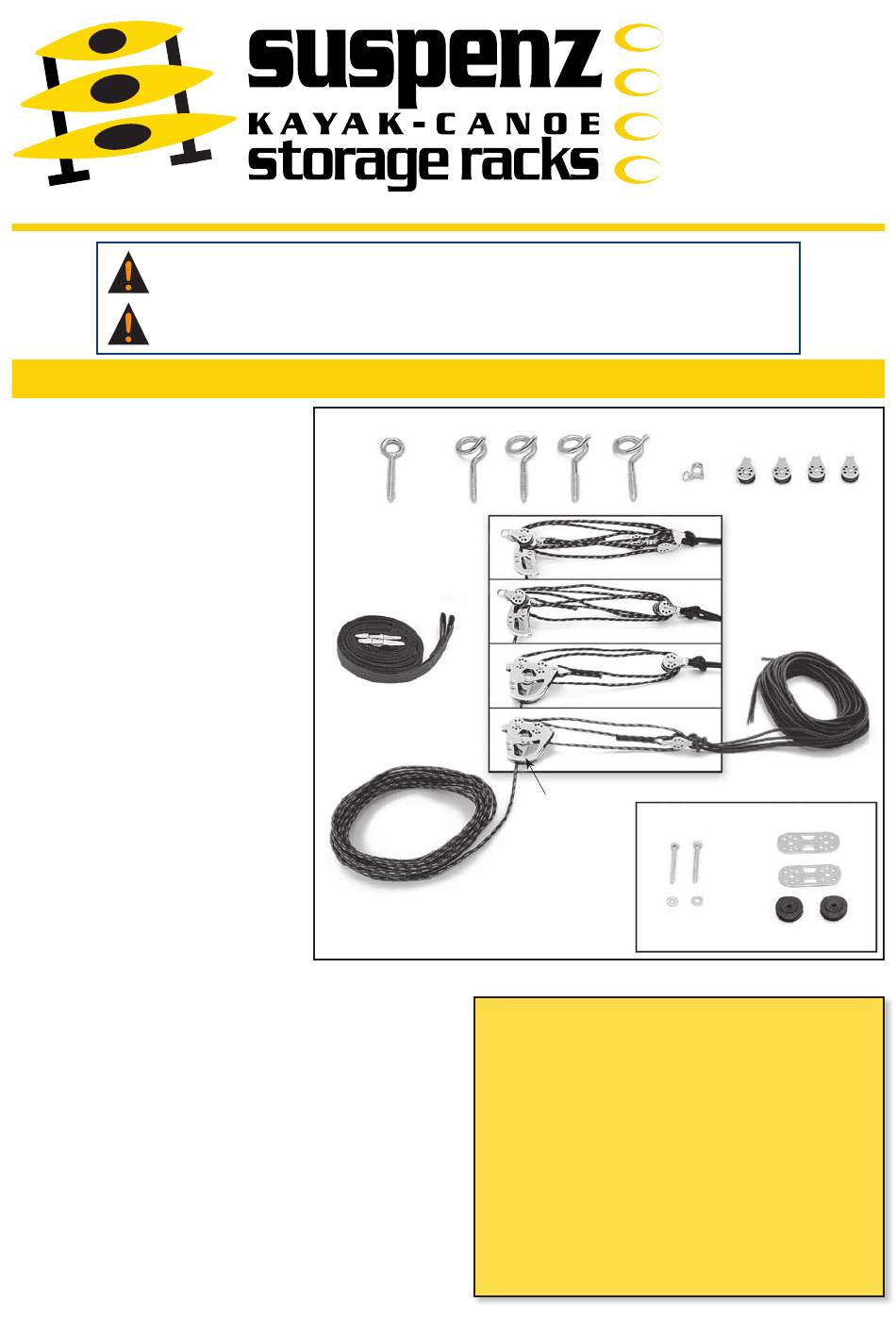

Kit includes:
A 1 Welded screw eye
B 4 Pigtail lag screws
C 1 Shackle
D 4 Pulleys
E 2 Webbing straps with buckles
7' (2.13 m)
F 1 Single black/yellow hoisting rope
G 1 Block and tackle with
cleat (G1) and rope
H 4 Black drop ropes: 2 long, 2 short
I 2 Lag bolts 1/4" x 2-1/2"
(6 x 63 mm)
J 2 Washers 1/4" (6 mm)
K 2 Organizer plates
L 2 Organizer pulleys
Purchase separately (if needed)
2 Pine boards (grade 2) 2" x 6" x 6'
(50 mm x 152 mm x 1.83 m)
8 Lag bolts and washers
5/16" x 4" (8 x 100 mm)
Tools Needed:
Drill
Drill bits: 5/32" (4 mm), 7/32" (6 mm), 5/16" (8 mm)
Plumb line
Pencil
Stud finder
Stepladder
Safety glasses
Tape measure
Wrench: 7/16" (11 mm) box end or ratcheting wrench
Tel: 866-SUSPENZ or 770-518-0045
•
(B) Pigtail lag screws
(A)
Welded
screw
eye
(E) Webbing straps with buckles
7' (2.13 m)
(F) Single black/yellow hoisting
rope (DO NOT untie)
(G) Block and Tackle varies by system size. Refer to Hoister part number for specific
*Note:
cleat style.
7801bSZ: 60 (27 kg) System
7802bSZ: 90 (41 kg) System
7803bSZ: 145 (66 kg) System
7806bSZ: 200 (91 kg)System
Email: info@Suspenz.com
•
(C) Shackle
7803bSZ
7802bSZ
(G) Block and tackle*
7801bSZ
(G1)
Cleat
(I) Lag bolts
(6 mm x 63 mm)
(J) Washers
/ " (6 mm)
1
4

imPoRtant safety infoRmation

• NEVER USE TO LIFT A PERSON.
• DISAbLE AUTOmATIc gARAgE DOOR OPENER
when installing, raising, or lowering Hoister.
• READ ENTIRE mANUAL cAREFULLy bEFORE
starting installation. It will save you time.
• DO NOT UNTIE ANy ROPES
System comes ready to install.
Leave F, g and H together.
• DO NOT RAISE OR LOWER HOISTER
with anyone standing under boat.
Web: www.Suspenz.com
•
(D) Pulleys
7806
(H) Drop black
ropes (DO
NOT untie)
Rope Organizer Components
/ " x 2 / "
1 1
(K) Organizer plates
4 2
(L) Organizer pulleys
