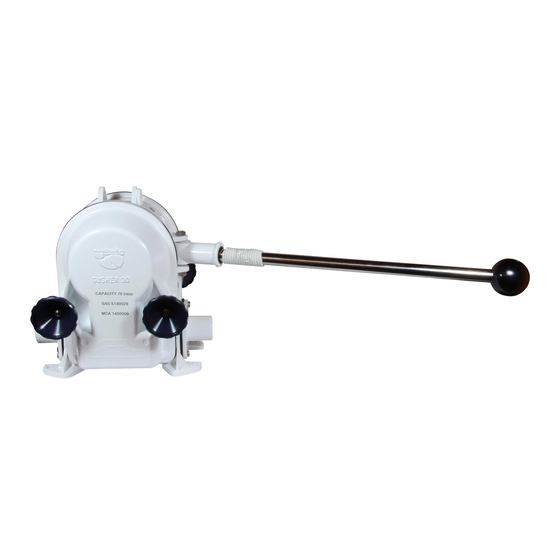

Whale Gusher
INSTALLATION & USER INSTRUCTIONS
Thank you for purchasing this Whale® product.
For over 60 years Whale® has led the way in the design and manufacturer of water and waste systems
including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have
built a reputation for quality, reliability and innovation backed up by excellent customer service.
For information on our full product range visit: www.whalepumps.com
CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
EU Declaration of Conformity
14.
15.
LIST OF IMAGES
Fig. 1
Through-deck installation
Fig. 2
Incorrect installation
Fig. 3
Typical installation diagram
Fig. 4
Underdeck installation
Fig. 5
Exploded diagram
Read the following carefully before installation
To the Fitter:
Check that the product is suitable for the intended application. Follow these installation instructions and ensure all
relevant personnel read the points listed below. Also ensure that these operating instructions are passed on to the
end user. The manufacturer cannot be held responsible for claims arising from incorrect installation, unauthorised
modification or misuse of the product.
To the User:
Read the following instructions carefully.
30 Pump
®
BP3000 / BP3010 / BP3020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gusher 30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Whale Gusher 30 Series

  • Page 1 Thank you for purchasing this Whale® product. For over 60 years Whale® has led the way in the design and manufacturer of water and waste systems including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have built a reputation for quality, reliability and innovation backed up by excellent customer service.
  • Page 2 PRINCIPLES OF OPERATION This bilge pump is designed to exhaust standing water only. The double acting pump chamber design of the Gusher® 30 ensures highly efficient throughput with an easy pumping action. Full even strokes will obtain the best results. The detachable handle is fitted with a lanyard and should be safely secured close to the pump. SPECIFICATION Model On Deck...
  • Page 3 To ensure good priming and flow, avoid sharp bends in pipework and fit a Whale strumbox / strainer (Part number SB3422 / SB4222 / SB5865 (incorporating a non-return valve)) in order to prevent the end of the hose sucking against a flat surface and therefore allowing the water level to be reduced to a minimum.
  • Page 4 The pump should be operated to show that it pumps water efficiently. Annual Checks • Whale advises that the boat's plumbing system is checked annually for leaks and obstructions. Optimal Performance • Ensure this product is clear of debris.
  • Page 5 Keep valve retainers (one located in inlet valve chamber and the other in between the outlet valves). Note that the 2 holes on the valves are not evenly spread. Match these with the large holes on the valve retainer. Pass the 2 screws through the 2 large holes in the valve retainer and valves, then place resulting assembly in outlet chamber - located on side of pump.
  • Page 6 Inspect and remove any debris. If damaged replace (Part No. AK3051) outlet valve failure WINTERISING Note: Annually at the end of the season, fully drain all water in the pipework and pump chamber. Whale® cannot guarantee warranty if the system is not fully drained for winterising. SERVICE SUPPORT DETAILS Service kits available: AK3051 (Full Spare Kit) and AS3095 (Spare Handle etc) For installation or service advice please contact Whale®...
  • Page 8 Munster Simms Engineering Ltd. 2 Enterprise Road, Bangor, N. Ireland BT19 7TA Tel: +44 (0)28 9127 0531 whalepumps.com info@whalepumps.com Ref No: db_jw_G30_181.17_v7_0314...
