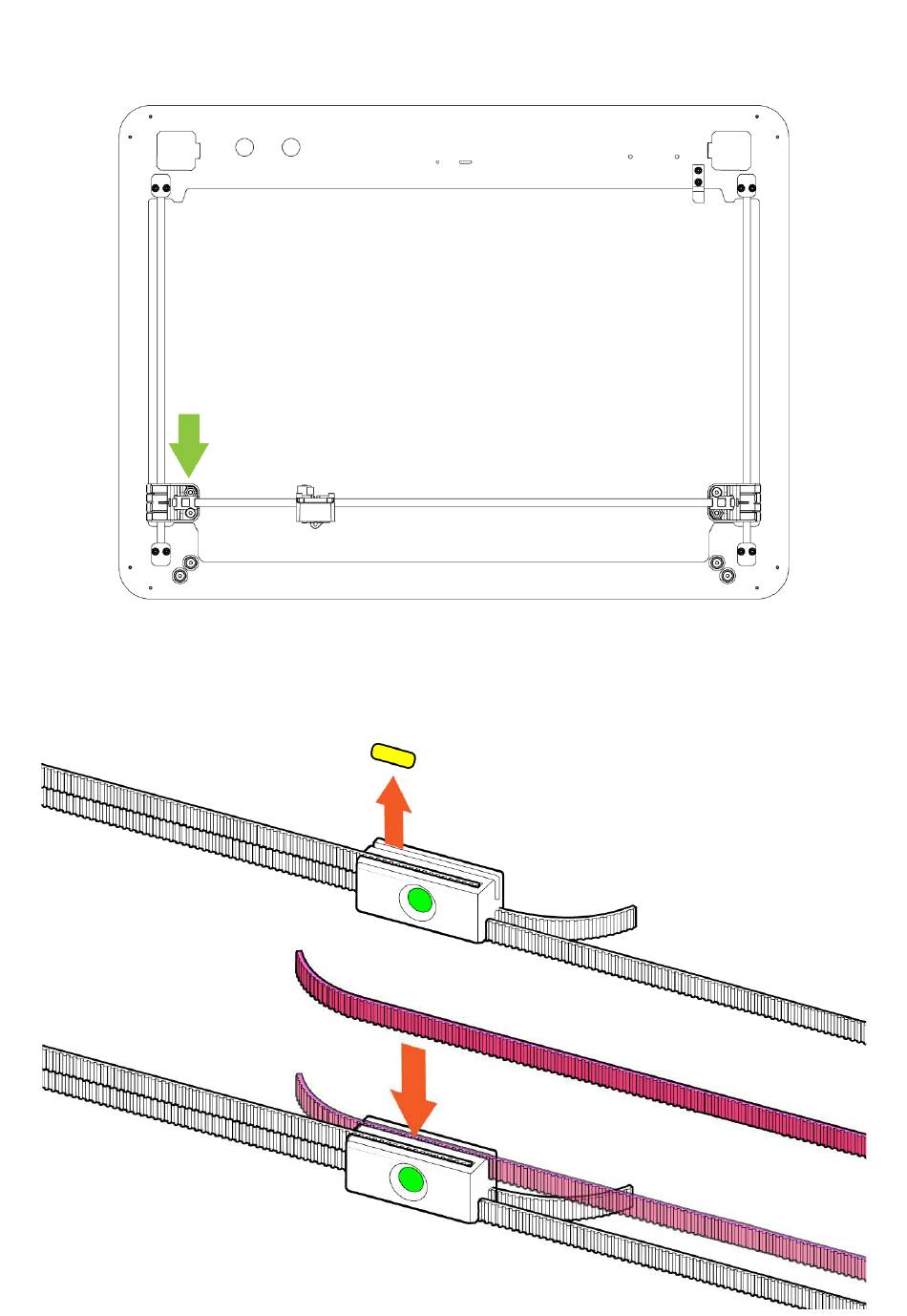

Pull the belt tight. This should cause the left hand side Gantry Carriage to get closer to the Top
Panel.
Apply just enough tension to the belt to remove the gap between the left hand side Gantry
Carriage and the Top Panel.
Remove the yellow belt tab and and press the Belt into the Belt Hub as shown in the diagram.
45
45
