Summary of Contents for Lumag MD-500EK

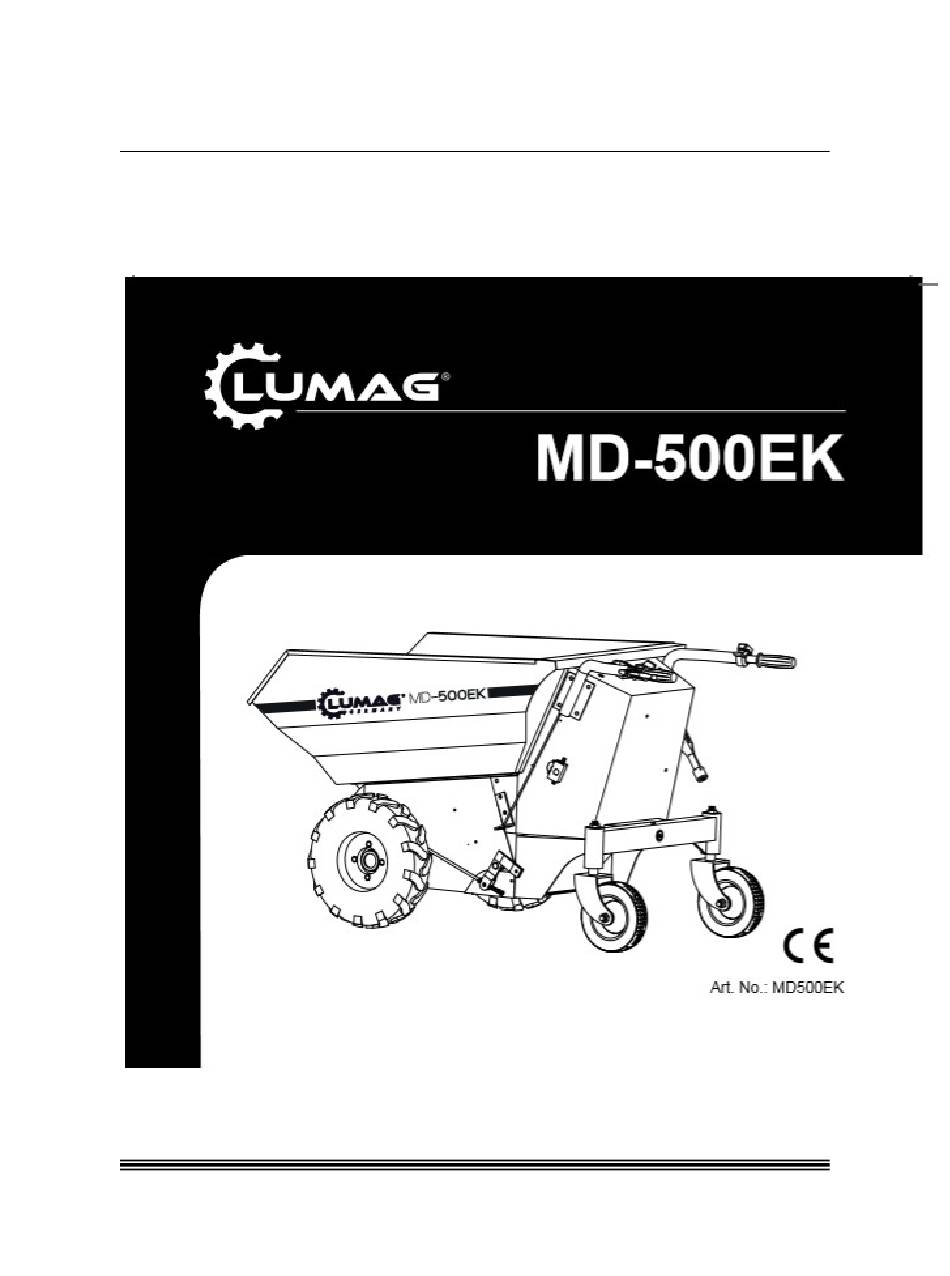

- Page 1 User Manual SAFETY AND OPERATION INSTRUCTIONS IMPORTANT: Read safety rules and instructions carefully before operating equipment.
-
Page 2: Table Of Contents
Table of Contents Table of Contents PART I: General Safety Rules ..................2 PART II: Familiar with the Mini Dumper ..............6 PART III: Operating the Mini Dumper ..............7 PART IV: Maintaining the Mini Dumper ..............9 PART V: Parts List ..................... 10 Conventions used in this manual WARNING This indicates a hazardous situation, which, if not avoided, could result in death... -
Page 3: Part I: General Safety Rules
Part I: General Safety Rules PART I: General Safety Rules Improper installation and operation could cause personal injury, and/or equipment and property damage. Read and understand labels and the USER Manual before installing, operating, or making adjustments. Safety Labels Found on Your Unit WARNING Read this Safety &... -
Page 4: Protecting Yourself And Those Around You
Part I: General Safety Rules NOTICE A． Operators must be fully trained before using this machine. B． User Manual is read and understood. C． Machine is positioned on level ground, all guards are fitted and in good condition. D． Shovel is in good condition and secure. E．... - Page 5 Part I: General Safety Rules Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the machine and the activity. Never assume that children will remain where you last saw them. Always follow these precautions: A.
- Page 6 Part I: General Safety Rules N. Exercise extreme caution with the controls when working on steep or slippery surfaces. Especially, when people are near to the working area. A Note to All Users List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this machine in a safe manner.
-
Page 7: Part Ii: Familiar With The Mini Dumper
Part II: Familiar with the Snowplow PART II: Familiar with the Mini Dumper It may be helpful to familiarize yourself with the controls and features of the Mini Dumper. If you have any question, please contact the dealers in your area. TECHNICAL SPECIFICATIONS Power 48V/20AH/1000W Electric... -
Page 8: Part Iii: Operating The Mini Dumper
Part III: Operating the Snowplow PART III: Operating the Mini Dumper It may be helpful to better familiarize yourself with the features of your machine before beginning the steps outlined in this chapter. WARNING A. Read and understand all instructions, safety precautions, and/or warnings listed in “PART I: General Safety Rules”... - Page 9 Part III: Operating the Snowplow 1. Stop the machine and disengage right handle rotation. 2. Jerk brake handles upwards 3. Turn the “dumping switch” clockwise and hold until dumping finished. Turn switch anti-clockwise to restore the dumper.
-
Page 10: Part Iv: Maintaining The Mini Dumper
Part IV: Maintaining The Snowplow PART IV: Maintaining the Mini Dumper Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual for maintenance procedures. WARNING 1. Before performing any maintenance procedure or inspection, stop the motor. 2. -
Page 11: Part V: Parts List
Part V: Parts List PART V: Parts List Ref.No. Description Ref.No. Description Bucket Rear wheel frame Handle cover Main frame Switch Ø4 cotter pin Right handrail Brake cable fitting plate Brake assemble Frone wheel brake rod Brake fitting tube Ø12*26 pin axle Brake fitting flat tube Spring Electric box... - Page 12 Part V: Parts List...
- Page 13 Part V: Parts List Wiring Diagram...
