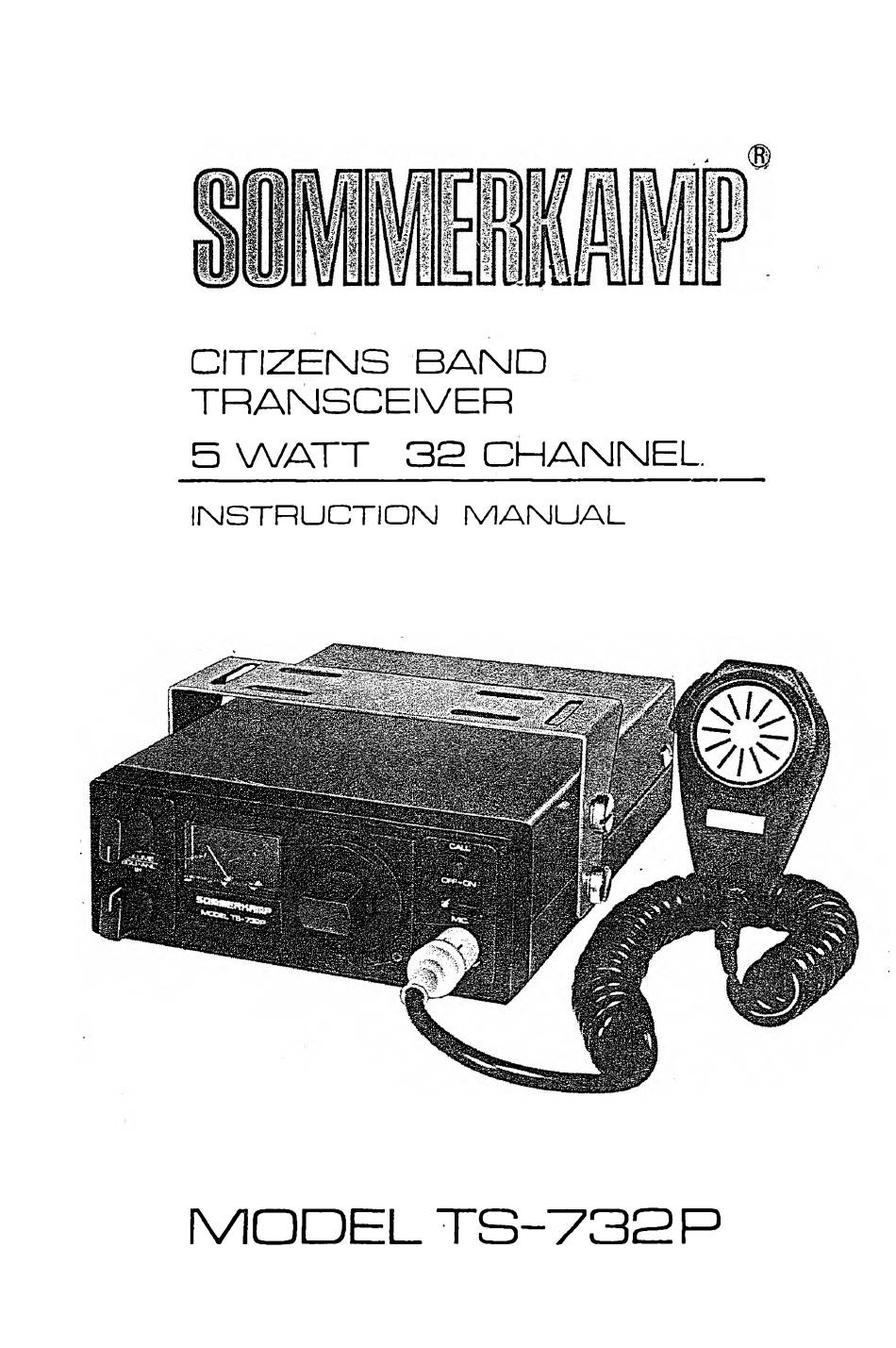

- Page 1 CITIZENS BAND TRANSCEIVER 5 WATT 3g CHANNEL INSTRUCTION MANUAL M O D E L T S - 7 3 2 P...
-
Page 2: Control Locations
IN D IC A T IO N L A M P ANTENNA CONNECTOR PACKING LIST: Beside this manuał, the carton shall contain the following items: 1 Transceiver TS-732P 1 Mounting bracket 4 Screw for Mounting bracket 1 Microphon hanger 1 AC cord with 8 pin connector... -
Page 3: General Description
GENERAL DESCRIPTION Your SOMMERKAMP TS-732P transceiver has been désignée! for continous heavy duty mobile and base Station application. It can be operated with a microphone and internal speaker or headset, speaker/ microphone combination, telephoneset incorporating automatic voice operated transmit/receive Switching, external sélective calling with automatic answerback and many more. -
Page 4: Receive/Transmit Switching
TRANSMITTER & MODULATOR SECTION: The transm itter section is designed for continous heavy duty transmission amplitude modulated (AM /A3) signais in the 26.965 to 27.275 MHz. (11 meter) citizens band. The transm itter consists of crystal controlled osciilator. The output of this osci- llator is amplified in a dass A buffer followed by a tuned filter, and a highly efficient collector-modulated dass C driver and power output stage,... - Page 5 BASE STATION INSTALLATION AND CHECKOUT Unpack the transceiver carefully and check for exterior damages and the access- ories. Connect the 3 wire AC cord to an AC plug in the following manner: blue to AC terminal brown to AC terminal yellow/green to the earth terminal Connect the antenna plug to the antenna jack with an SWR-Meter inserted into the antenna cable.
-
Page 6: Mobile Installation
MOBILE INSTALLATION Mounting bracket and screws are supplied for mounting the transceiver underneath the dashboard. Microphone hanger and screws are also supplied. For electrica! connection, firs t make sure that the transceiver is turned off. Connect the red wire to the ACC terminal of the ignition switch or + terminal of battery and ground the red and white or black wire to the chassis of the vehicle. -
Page 7: Microphone Jack
MICROPHONE JACK The 7-pin DIN standard accessory jack has the following internai connections: 1. Microphone input(Z 600-10K ohm) 5. Audio output (Z 8 ohm-10K ohm) 2. Transmit/Receive switching. 6. +12V for VOX unit etc. 3. Internai microphone output (Z 1K ohm) 7. Ground return for 1-6. 4. - Page 8 SC H E M ATIC DIAGRAM...
-
Page 9: Main Parts Layout
MAIN PARTS LAYOUT ü... - Page 10 PRINTED CIRCUIT BOARD PARTS LAYOUT п...
-
Page 11: Wiring Layout
WIRING LAYOUT... - Page 12 B L O C K DIAGRAM...
- Page 13 P A R TS L IS T fo r T S - 7 3 2 P D E S I G N A T I O N P A R T S N A M E P A R T S N O.
- Page 14 P A R T S L IS T fo r T S - 7 3 2 P D E S I G N A T I O N P A R T S N A M E P A R T S N O.
- Page 15 S P E C IFIA T IONS fo r T S - 7 3 2 P 2 FET, 15 transis-tor, 20 diode. Semiconductors : Transmitter System: Crystal controlled. Collector modulation ÀM. Frequency : 32 channels on 27 MHz. 10 watts. Input Power: Band Width: 8 KHz (max).
