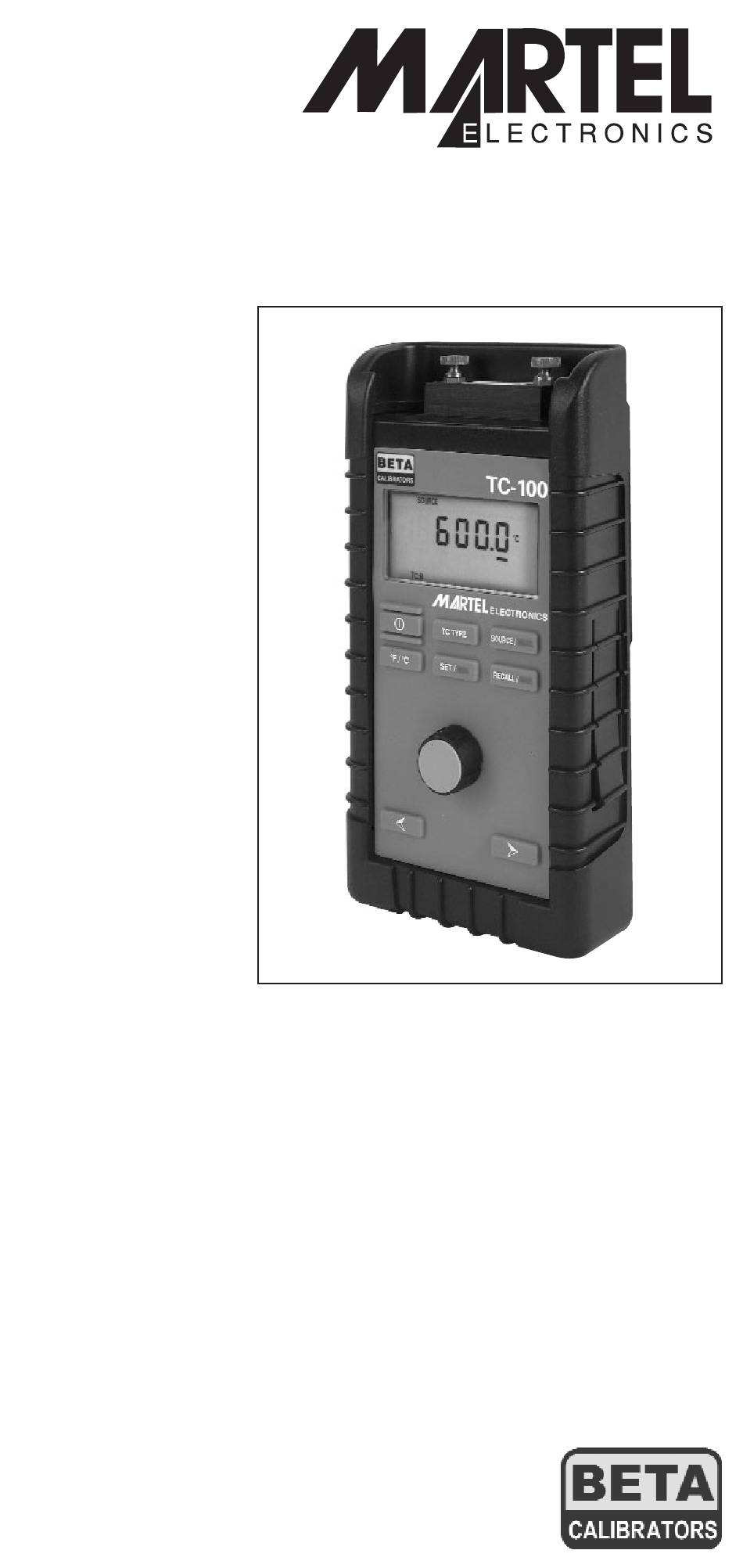

  • Page 1 TC100 Precision Thermocouple Calibrator...
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction .....1 2. Accessories ....5 3.
  • Page 3: Introduction

    TC100 1. Introduction The Martel TC100 is designed to be a simple to use, high accuracy thermocouple calibrator capable of either simulating or reading J, K, T, L, E, R, S, T, B, C, or mV thermocouple types. A standard thermocouple mini-connector along...
  • Page 4 1.2. Unpacking Your Calibrator Remove the packing list and verify that all equipment has been received. If there are any questions about the shipment please call Martel Electronics at 1-800-821-0023. When the ship- ment is received inspect the container and equipment for any signs of damage.
  • Page 5 Double Insulated Electric Shock Fuse PE Ground Hot Surface (Burn Hazard) Read the User’s Manual (Important Information) Canadian Standards Association The following definitions apply to the terms “Warning” and “Caution”. • “Warning” identifies conditions and actions that may pose hazards to the user. •...
  • Page 6 Warning To avoid possible electric shock or personal injury: • Do not apply more than the rated voltage. See specifications for supported ranges. • Follow all equipment safety procedures. • Do not use the calibrator if it is damaged. Before you use the calibrator, inspect the case.
  • Page 7: Accessories

    2. Accessories The following items are available for the TC100 calibrator. Item AC adapter/charger 1001-9V (120V) 80013 (220V) 9V NiCd battery 1002-9V (must use with above charger) TC wire kit (J, K, T, E) 80029 TC wire kit (R, S, B, N) 80036 3.
  • Page 8: Operating Procedure

    Before beginning, become familiar with the key- pad layout and the configuration of the input/output jacks. See Figure 1. In the basic or “as shipped” setup, the TC100 allows the user to step through all available T/C types (10 plus mV). In certain situations this may be confusing to infrequent users as to which type to use.
  • Page 9: Operating Connections And Precautions

    5 minutes for the T/C connector (or wire) to stabilize to the same temperature as the connector block. 4. If you are using the TC100 in the output mode use the cursor control keys to select the decade to be controlled. Note that the cursor is the line under a specific digit.
  • Page 10: Battery Save Feature

    The TC100 incorporates an Auto Shut Off or Battery Save feature that will automatically turn off the TC100 after a preset amount of time (up to 30 minutes) The factory default setting is 30 minutes, but can be changed or disabled by completing the following steps: 1) Turn on the TC100.
  • Page 11: Setpoint Feature

    7. Setpoint Feature The TC100 allows the user to program up to 3 setpoints for each TC type (including mV). to set the setpoints complete the following proce- dure: 1) Turn on the TC100 and select the Source Mode. 2) Select the TC type to be simulated and cor- rect units (either °C or °F).
  • Page 12 Warning: You may want to disable the Battery Save feature before using the Datalogging Mode to prevent the TC100 from turning off pre- maturely. 5) At any time press the min. or max. to display the value stored.
  • Page 13: Maintenance

    Because of this protection no fuse is required. C. Calibration The TC100 is designed to hold its rated accura- cy for a minimum of one (1) year. It is therefore recommend that an annual re-calibration be done to ensure operation within specification.
  • Page 14: Specifications

    10. Specifications (1 year at 23°C ±5°C; % of reading unless otherwise noted) Output Voltage Range -10 to +75.000 mV Resolution 1 mV ±0.007 % of reading, ±5 µV Accuracy Output Impedance >1 Ohm Input Voltage Range -10 to +75.000 mV Resolution 1 mV ±0.007 % of reading, ±5 µV...
  • Page 15: Warranty

    Receiving Department to accept the shipment. Any package not so marked will not be accept- ed and will be returned to the shipper. Martel will not be responsible for damage as a result of poor return packaging. Out of warranty repairs and recalibration will be subject to spe- cific charges.
  • Page 16 Tel: (603) 434-8179 800-821-0023 Fax: (603) 434-1653 Martel Electronics PO Box 770 1F Commons Drive Londonderry, NH 03053 www.betacalibrators.com Tel: 800-537-2181 or (972) 241-2200 Fax: (972) 241-2200 Beta Calibrators 2309 Springdale Rd. Farmers Branch, Texas 75234 0219084 2/05 Rev C...
