CLEVER01
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The installation manual can be downloaded by going
WARNING
to the "Downloads" section of Erreka website:
http://www.erreka-automatismos.com

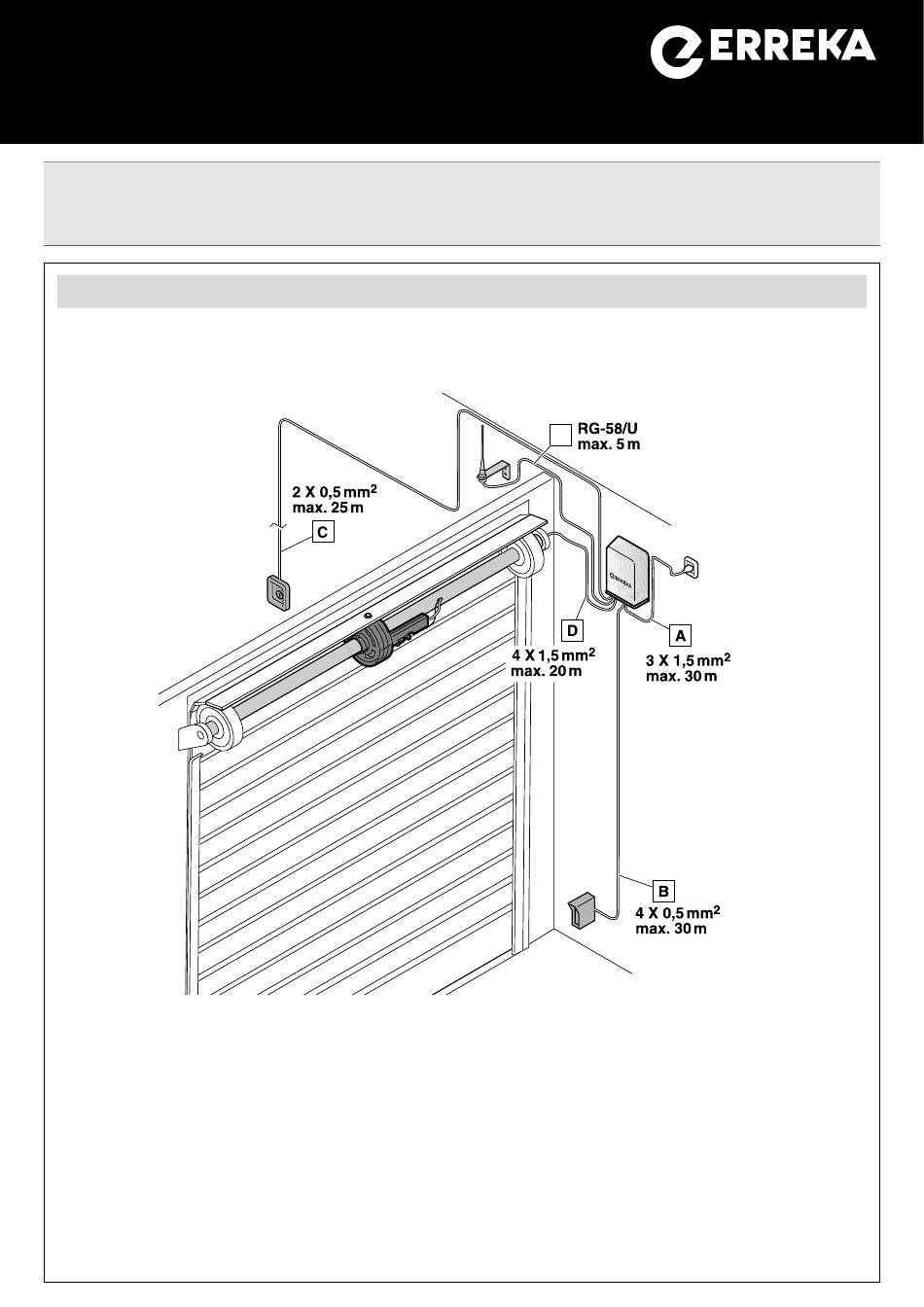

Elements of the complete installation
Electrical wiring
A: Main power supply
B: Photocells (mirror)
C: Pushbutton or key switch
D: Operator (motor + limit switches)
E: Antenna
E
English
E270A
9
