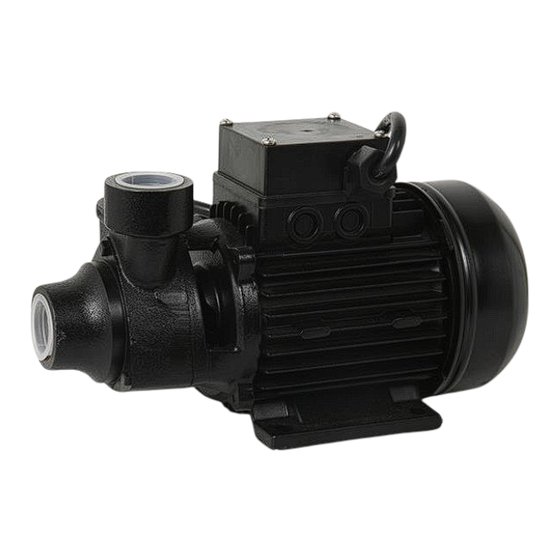

- Page 1 1/2 Horse Clear Water Pump Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #50134 SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing anIronton product! For future reference, please complete the owner’s record below: Serial Number/LotDate Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Considerations ......................5 Safety Labels ............................5 Grounding .............................. 6 Extension Cords ............................ 7 Assembly ............................... 8 Before Each Use ............................ 8 Operating Instructions .......................... 9 Priming the Pump ........................... 10 AfterEach Use ............................ -
Page 4: Intended Use
Intended Use This cast iron pump is designed for clear (clean) water transfer applications on a farm, at aconstruction site, or at home. It is not designed for sea water, dirty or gritty water, or flammable, corrosive liquids. The pump is also not designed to be submerged or for continuous duty. Technical Specifications Property Specification... -
Page 5: Important Safety Considerations
Important Safety Considerations Read and understand all instructions. Failure to follow all instructions may result in serious injury. The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this tool. Always be aware of the environment and ensure that the tool is used in a safe and responsible manner. -
Page 6: Grounding
Grounding The pump must be grounded while in use to protect the operator from electrical shock. It is equipped with an electric cord that has an equipment-groundingconductor and a grounding plug. The plug MUST be plugged into a matching receptacle that is properly installed andgrounded in accordance with ALL local codes and ordinances. -
Page 7: Extension Cords
Extension Cords USE A PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and cause overheating. -
Page 8: Assembly
Assembly On first delivery, check that all parts are present. Compare the contents of the shipping carton with the packing list. If any parts are missing or damaged, contact customer service for replacement parts (see the Replacement Parts section in this manual for the phone number). Before Each Use ... -
Page 9: Operating Instructions
Operating Instructions Stay alert, watch what you are doing, and use common sense when operating the pump. Do not use the pump while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the pump may result in serious personal injury. ... -
Page 10: Priming The Pump
Priming the Pump The pump housing must be filled with water before starting the pump. This must be done after the pump is installed and all pipes connected, or may be necessary if the pump has not been run for a long time. -
Page 11: Aftereach Use
AfterEach Use Before moving the pump after use, unplug it then allow time for it to cool because it will be HOT.Disconnect the suction and discharge hoses then drain the pump housing and reinsert the plastic caps in the inlet and outlet ports. Also drain the hoses and coil them up. Never lift the pump by the power cord. -
Page 12: Maintenance
Maintenance Maintain your tool. It is recommended that the general condition of any tool be examined before it is used. Keep your tool in good repair by adopting a program of conscientious repair and maintenance in accordance with recommended procedures. ... -
Page 13: Parts Diagram
Parts Diagram Page 13 of 17... -
Page 14: Parts List
Parts List Part No. Description Quantity Dustproof cover Hexangular tie bolt Pump body Impeller External circlip Washer O-sealing ring Mechanical seal Pump support Water proof gland Shaft key Ball bearing External circlip Rotor Wave spring Cable Fan cover Hexangular tie bolt Real cover Blind nut Outlet nozzle gasket... -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action 1. Plug not connected 1. Check that cord is plugged in. 2. No power at outlet 2. Check power at outlet. If outlet is unpowered, turn off pump and check the circuit breaker. If breaker is tripped, make sure circuit is right Pump does not capacity for pump and circuit has no other... -
Page 16: Limited Warranty
Limited Warranty 12-MONTH REPLACEMENT WARRANTY The pump is covered by a 12-month replacement warranty from the date of purchase. Industrial or high-frequency use will void this warranty. The warranty covers faulty parts or workmanship. WARNING The following actions will result in the warranty being void. ... - Page 17 Distributed by Northern Tool and Equipment Company, Inc. Burnsville, Minnesota 55306 NorthernTool.com Made in China Page 17 of 17...
