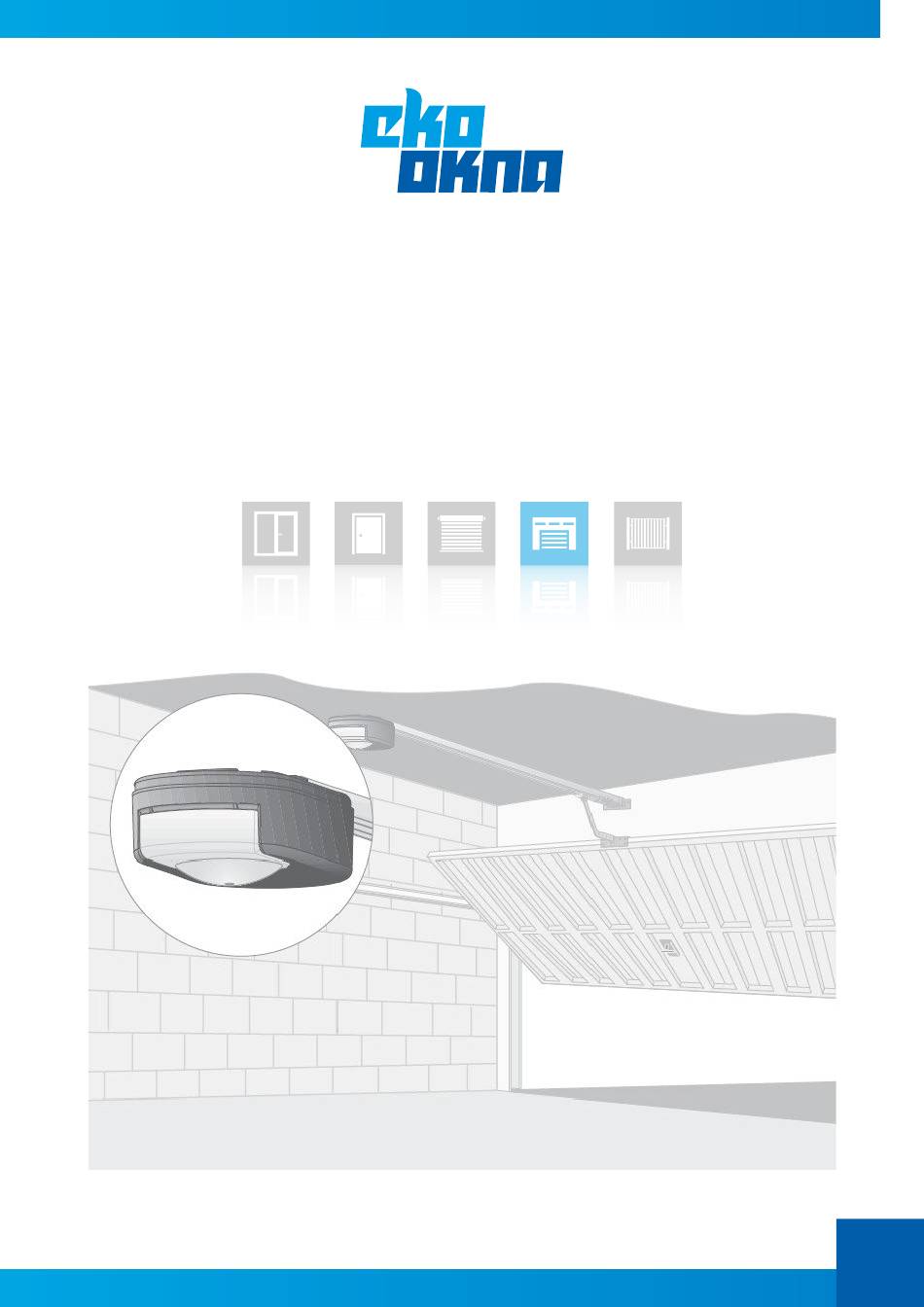

- Page 1 Installation instruction for the gate drive Series Dexxo...
- Page 3 The engine rail mounting bracket should be mounted in the lintel or on the ceiling, however not more than 200 mm from the lintel (see drawing) Before programming the drive, the upper gate's limit switch must be installed. The drive uses a movement limiter as reference points for automatically setting the upper end position. Upper position limiter (when the door is fully open).
- Page 4 AUTOSET function, setting the gate end positions. Dexxo Pro/io 800/1000 [N] The servomotor automatically selects the thrust force to the specific gate. 1. Press the key for approx. 2 seconds, the drive lamp will light up and go off. S2 will appear on the display. 2.
- Page 5 Learning function, setting the gate end positions. Dexxo Optimo 800N 1. Press the key for approx. 2 seconds until the lamp switches on. The display range indicator light flashes 2. Using the buttons, move the chain / belt coupler until it engages with the guide arm (bogie). Long press causes continuous closing movement.
- Page 6 DELETION OF REMOTE CONTROL Pressing the button for 7 seconds (the lamp will light - go off - flashing) will erase all previously saved transmitters. Detailed information about Somfy Dexxo engines can be found in the package with the engine.
- Page 8 www.ekookna.com 1/2018...
