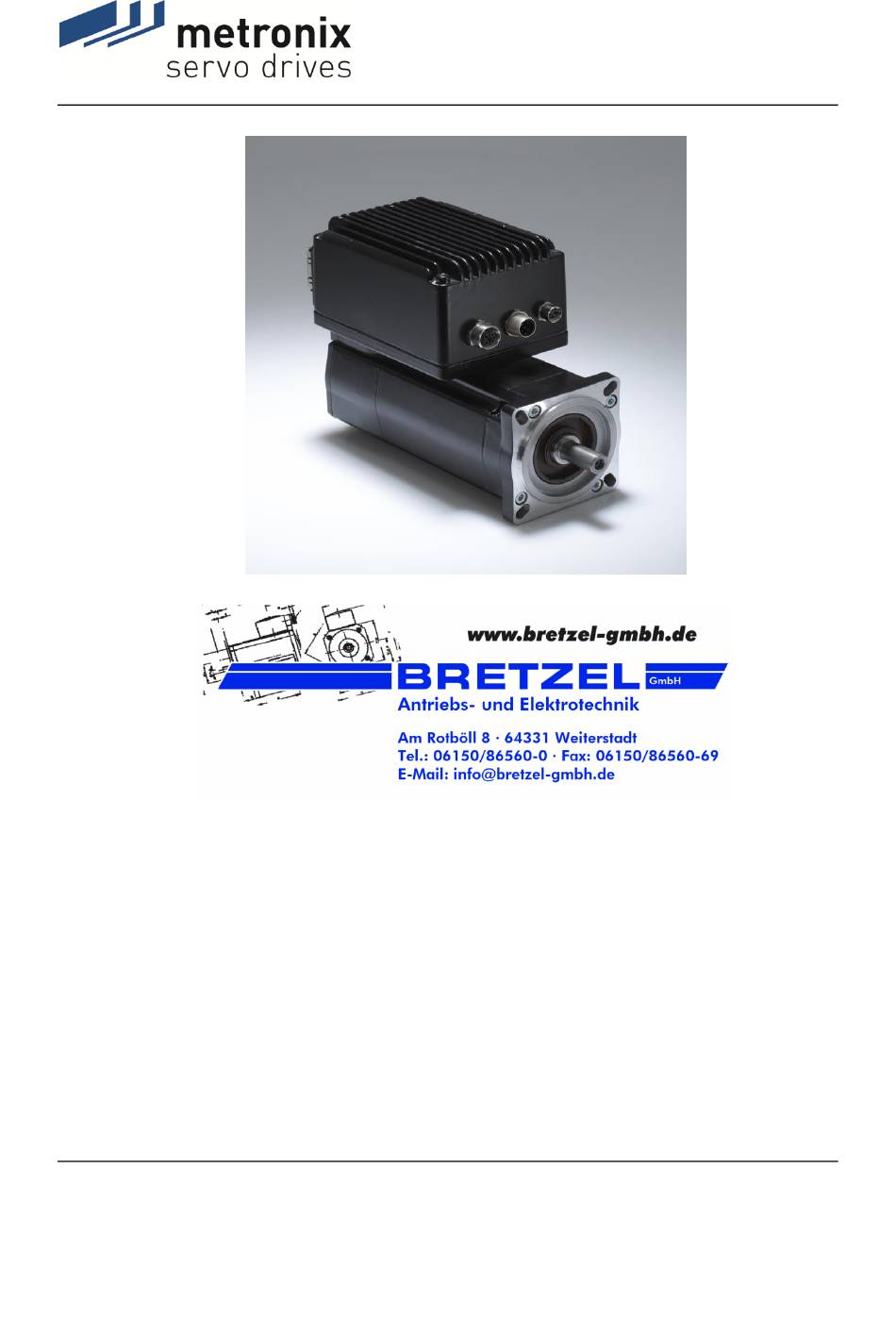

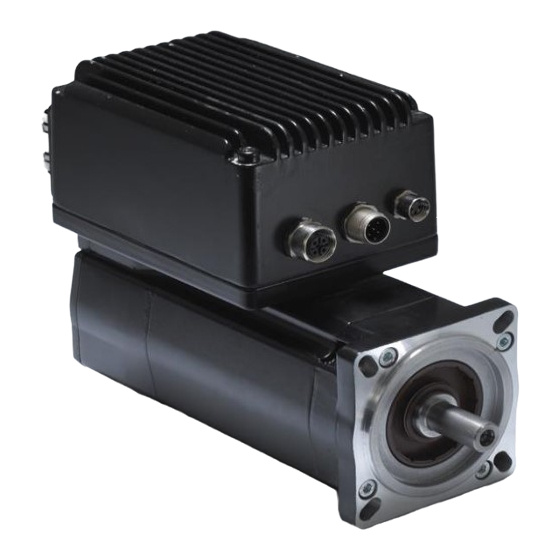

Servo positioning controller
PROFIBUS Manual
Telefon:
+49-(0)531-8668-0
Telefax:
+49-(0)531-8668-555
E-mail: vertrieb@metronix.de
http://www.metronix.de
DIS-2 48/10 FB
