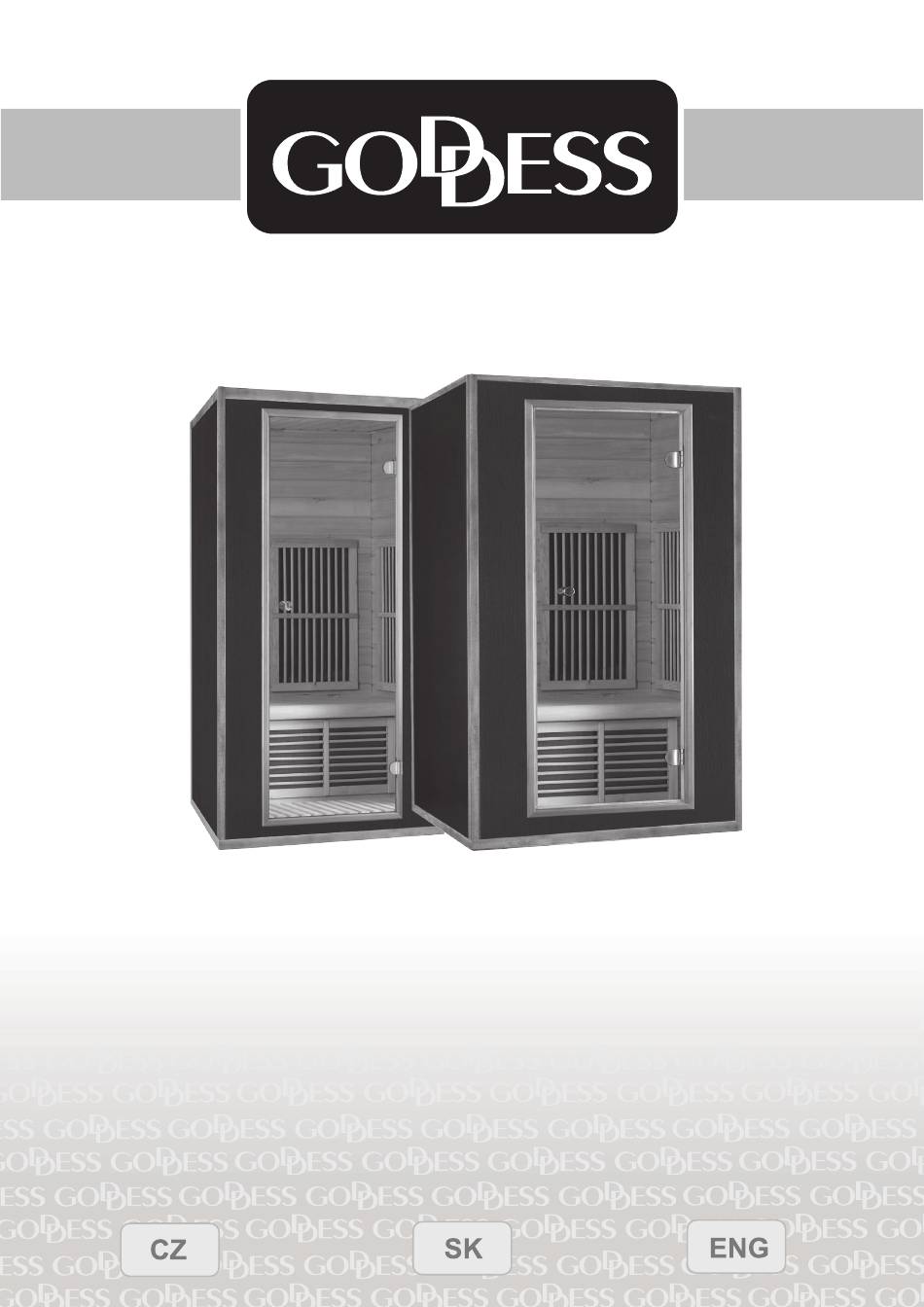

- Page 1 SPLIT 1N / SPLIT 1B / RIMINI 2N / RIMINI 2B NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUCTION MANUAL Osobní infra Osobnná infra Personal infra sauna sauna sauna...
-
Page 2: Table Of Contents
Thank you for choosing our infrared sauna! INDEX Important safety guides ......................27 Introduction, benefits, highlights .................... 28 Installation requirements ....................... 29 Installation procedure ......................29 Operation ..........................33 Warnings ..........................34 Trouble Shooting ........................35 Maintenance .......................... 36 Transportation ........................36 Packing List ........................... -
Page 3: Important Safety Guides
IMPORTANT SAFETY GUIDES READ AND FOLLOW ALL INSTRUCTIONS A) A receptacle shall not be installed inside the heated room. B) The door of the heated room do not include any locking or latching system, malfunction of which could cause entrapment inside the heated room. C) Keep the intended ventilation open when use the dry-bath bathing room. -
Page 4: Introduction, Benefits, Highlights
INTRODUCTION We welcomes you to the most affordable infrared sauna in the nation! We also congratulate you on your new path to better health! Thousands of users enjoy the benefits of infrared saunas every day. Infrared saunas help you burn calories, reduce toxins, relieve pain and even clear complexions. -
Page 5: Installation Requirements
INSTALLATION INSTALLATION REQUIREMENTS A) Do not plug any other appliances into the outlet with your our infrared sauna. (The outlet must be secured by current-balance protection) B) Install the sauna on a completely level floor. C) Do not spray the exterior with water. Keep the sauna installed in a high & dry place. D) Do not store flammable objects or chemical substances near the sauna. - Page 6 INSTALLATION Make sure all parts are present before installing the unit. Tools Required: Screwdriver BOTTOM (floor) PANEL Place the bottom panel on the floor; make sure the bottom panel front side is facing outward. BACK PANEL Place the BACK PANEL with the heating elements facing inward on the bottom panel (Image1).
- Page 7 SITTING BAFFLE AND BENCH 1) Sitting baffle Slide the sitting baffle down vertically into the slot within left and right panel. (Image 4). Image 4 Image 5 2) Connectors connect the bench’s heater element wire to corresponding wire from the back wall, then locate sitting baffle and slide into place.
- Page 8 FRONT PANEL Place the FRONT PANEL onto the recessed area on the BOTTOM PANEL. Align both sides of the front panel to the the side panels and screw them together (Image 7). Make sure the front and side panels are horizontally aligned. Image 7 Image 8 TOP PANEL...
-
Page 9: Operation
PUT ON THE TOP COVER ON THE TOP PANEL Take out the power cord from the round hole on the TOP COVER and then place the TOP COVER gently ante the TOP PANEL, lower down and screw securely in place. Make sure the antenna is reachable.(Image 10) Image 10 ACTIVATE AND ENJOY... -
Page 10: Warnings
2) Operation a) plug the sauna into a wall outlet (220V-240 Volt) which is stated in nameplate. Do not share the outlet with any other appliances. Switch on the main switch at the ceiling of the sauna room and then activate the sauna through the ON/OFF switch on the control panel. -
Page 11: Trouble Shooting
TROUBLE SHOOTING: Problem Possible reason Countermeasure The connector is not connected Check the connector or replace properly a new one Indicator light for power supply Check the circuitry (especially not working No power supply input weather there is power supply input) Indicator light is broken Replace the circuitry panel The heating indicator light is broken... -
Page 12: Maintenance
USER MAINTENANCE INSTRUCTIONS CLEAR AND MAINTENANCE Cleaning Clean the faceplate with a wet towel, or clean with a small amount of hand-soap mixed with warm water if necessary. Clean the sauna room with a wet cotton towel, dry with a clean dry towel. - Page 13 We reserve the right to change technical specifications. WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don’t use it or before a revision. There aren’t any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service.
- Page 14 After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair by the authorized service. Split 1N / Split 1B / Rimini 2N / Rimini 2B Match code: Date of sale:...
