EMC VNX5300 Hardware Information Manual page 33

Note: The RJ-45 NICs (labeled A and CS) are integrated into the rear of the Control Station
while the RJ-45 NICs (labeled B and MGMT) are on a PCI-e card in the expansion slot on
the rear of the Control Station.
One (DB-9 plug) serial console (RS-232/EIA-232) connector
◆
Two USB 2.0 connectors—not used
◆
POST diagnostic LEDs
◆
Two CAT-5E/6 panel-mount Ethernet cable extensions
◆
Figure 30 shows the orientation of these components.
1
1 AC power in connector
2 PS/2 connector (mouse)—not used
3 DB-9 serial modem plug connector
4 RJ-45 Ethernet NIC port (labeled CS
5 RJ-45 Ethernet NIC port (labeled B)
6 RJ-45 Ethernet NIC port (labeled MGMT)
a. The CS port uses an IPMI (Intelligent Platform Management Interface) cable to connect to a standby Control Station).
b. These LEDs might light during power on self test (POST); they are not important for the administration or maintenance of
the Control Station.
c. An extension cable with a label (CS 0 B) is provided with this connector (see the cable kit).
d. An extension cable with a label (CS 0 MGMT) is provided with this connector (see the cable kit).

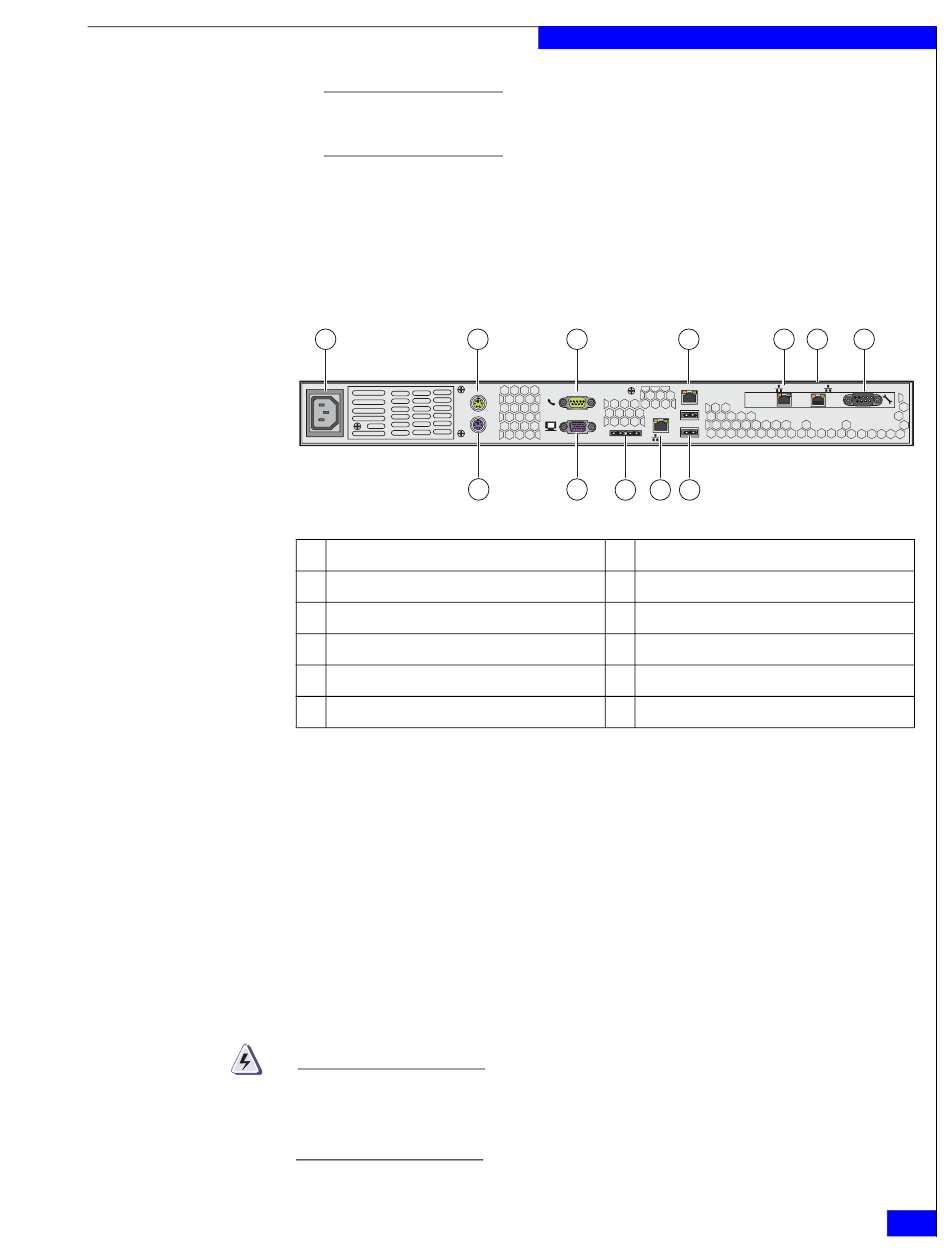

Figure 30 VNX5300 platform Control Station (rear view)
Control Station Input/output ports and connectors
The
Block and File
ports on the rear of the Control Station:
Four Ethernet (RJ-45) NIC ports
◆
One serial modem (DB-9) plug connector
◆
One serial console (DB-9) plug connector
◆
WARNING
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to
telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and
WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45
connectors. Use caution when connecting cables.
2 3
12 11
a
)
c
d
VNX5300 platform Control Station supports the following I/O
EMC® VNX5300™ Hardware Information Guide
4 5
CS
B
A
10 9 8
7 DB-9 serial console plug connector
8 Two USB 2.0 connectors—not used
9 RJ-45 Ethernet NIC port (labeled A)
b
10 POST diagnostic LEDs
11 DB-15 Video (VGA) socket connector—not used
12 PS/2 connector (keyboard)—not used
System component description
6 7
MGMT
CNS-001741
33
