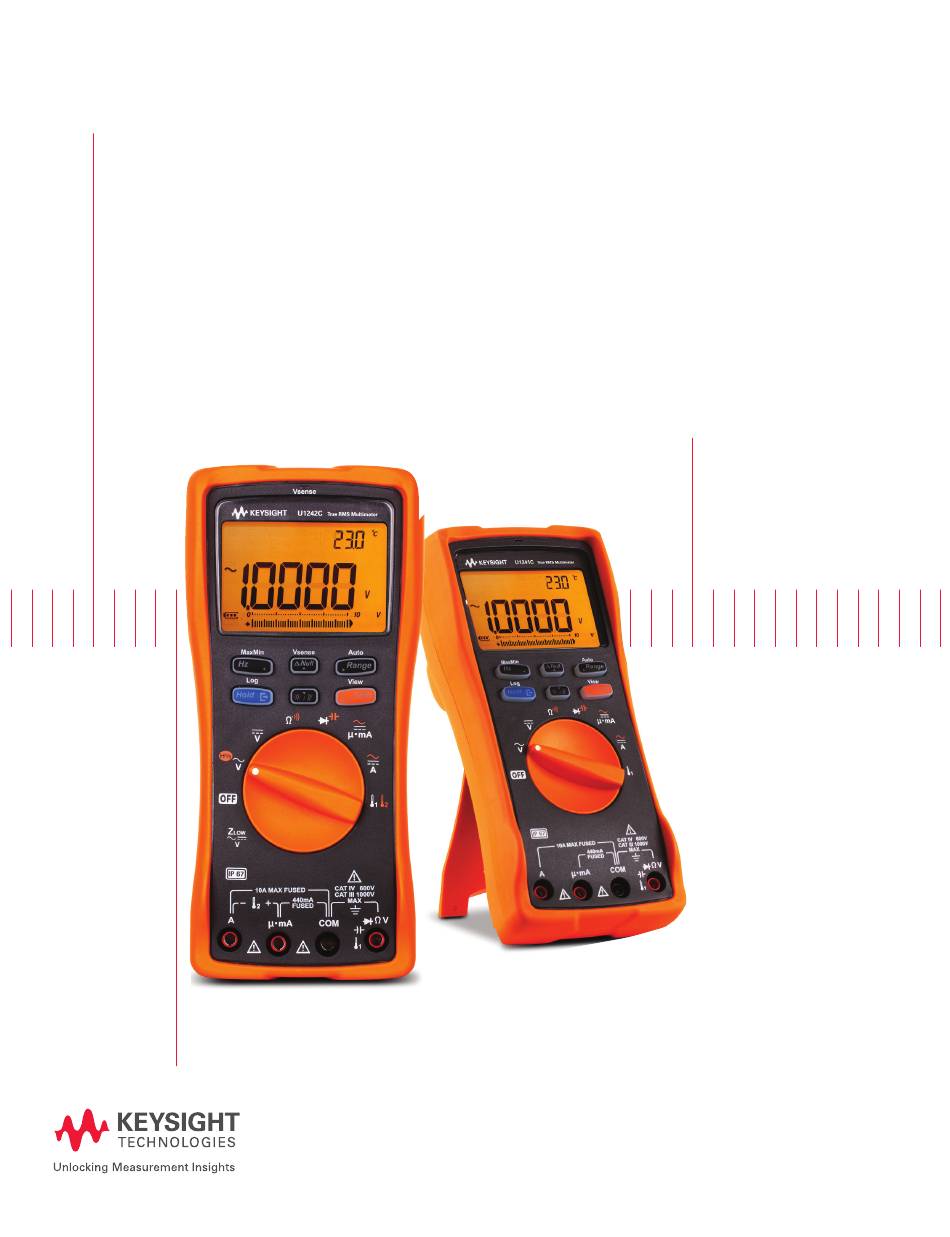

- Page 1 Keysight Technologies U1240 Series Handheld Digital Multimeters Data Sheet Perform Test Confidently and Efficiently Over a Longer Period of Time!
-
Page 2: Key Features
Introduction For technicians or industrial test engineers, their ultimate goal is to keep the production line running seamlessly to prevent unplanned shutdown. The strong and solid U1240C Series handheld digital multimeters (DMMs) are the tools you need to work efficiently. Certified to IP 67 and capable to withstand up to 3-meter (10 feet) drop to suit harsh working environments, these durable DMMs can even work longer for you with up to 400 hours of battery life. - Page 3 03 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Test Confidently and Efficiently Harmonics ratio Regular maintenance to keep the production line running seamlessly is the ultimate goal for industrial test engineers. In real life there is the presence of harmonics due to many electronic devices powered by switched mode current pulses that travels back into the power source.
- Page 4 04 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Dual and differential temperature Whether during installation, maintenance or troubleshooting heating, ventilation and air-conditioning (HVAC), temperature measurements are essential. As an example, to ensure boiler temperature adheres to safety requirements, you would need to measure both boiler and air temperature simultaneously to achieve accurate real-time readings.
- Page 5 10,000 readings storage. Second option is to transmit data to a PC with the IR-USB cable utilizing the Keysight Technologies, Inc. handheld Meter Logger software or to do so wirelessly with the Figure 3.
-
Page 6: Front Panel
06 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Take a Closer Look Front panel Vsense* red LED indicator for non-contact voltage detection 10,000-count dual display Data logging: – Manual data logging up to 100 readings, or, –... - Page 7 07 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet U1240C series comparison U1241C U1242C Basic features Display resolution 10,000 10,000 Auto/manual ranging Analog bar graph Backlight AC bandwidth 2 kHz 2 kHz True RMS AC (Switchable to averaging sense)
-
Page 8: General Specifications
08 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet General specifications Display 4 ½-digit liquid crystal display (LCD) with maximum reading of 11,000-count Automatic polarity indication Power consumption 530 mVA maximum with backlight and flashlight. Battery type 4x 1.5 V AA alkaline batteries (ANSI/NEDA 24A or IEC LR03), or;... - Page 9 09 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet DC specifications for U1241C / U1242C Function Range Resolution Accuracy ± (% of reading + Test current / burden voltage counts of least significant digit) Voltage 100 mV 0.01 mV...
- Page 10 10 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet AC voltage specifications for U1241C / U1242C Function Range Resolution Accuracy ± (% of reading + counts of least significant digit) 40 Hz to 1 kHz 1 kHz to 2 kHz...
- Page 11 11 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Temperature specifications for U1241C / U1242C Thermal type Range Resolution Accuracy ± (% of reading + as specified below) –200 °C to 1372 °C 0.1 °C 1 % + 1 °C –328 °F to 2502 °F...
- Page 12 Shielding inputs from external noise pickup is critical for minimizing measurement errors. Turning on LPF (low pass filter) may help to filter out the noise and achieve a stable reading. U1241C / U1242C sensitivity for voltage measurement Input range Minimum sensitivity (RMS sine wave)
-
Page 13: Ordering Information
13 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Ordering Information U1241C U1242C Standard shipped accessories 4-digit handheld digital multimeter, test leads (red and black), infrared (IR)-to-USB cable, four AAA batteries, Quick Start Guide, certificate of calibration... - Page 14 14 | Keysight | U1240C Series Handheld Digital Multimeters – Data Sheet Optional accessories U1161A extended test lead kit Includes two test leads (red and black), two test probes, medium sized alligator clips and 4-mm banana plugs. – Test leads: CAT III 1000 V, CAT IV 600 V, 15 A –...
- Page 15 Get the best of both worlds: Keysight’s measurement expertise and product breadth, combined with channel partner convenience. Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to Keysight Technologies, Inc. www.keysight.com/go/quality www.keysight.com/find/handhelddmm Keysight Technologies, Inc.
